NSN 5315-01-262-6967 NAS1335C5C34D, 01-262-6967, 012626967
Product Details | QUICK RELEASE PIN

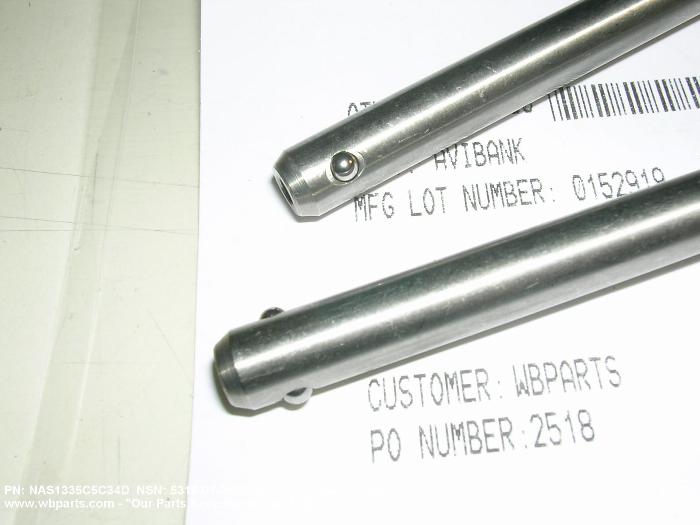

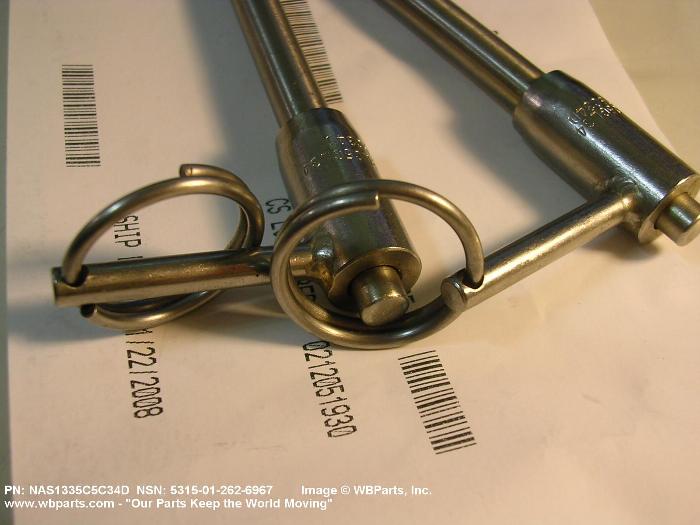

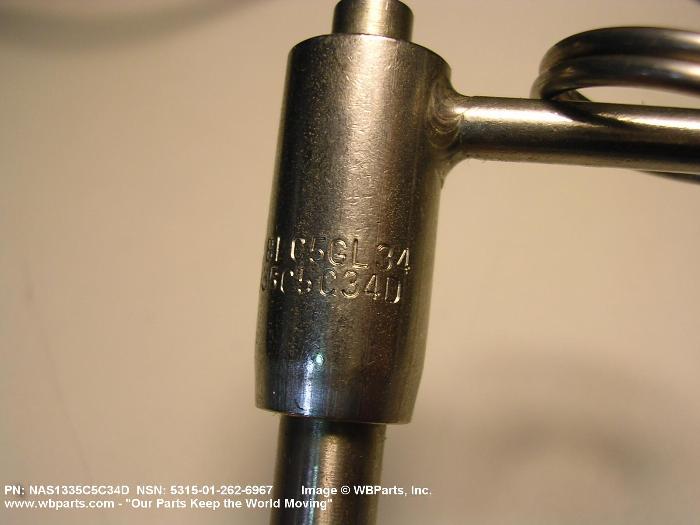

5315-01-262-6967 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: NAS1335C5C34D, 5315-01-262-6967, 01-262-6967, 5315012626967, 012626967
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 SEP 1987 | 01-262-6967 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-01-262-6967
Demand History | NSN 5315-01-262-6967
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1335C5C34D | 2015-02-33 | 1 | US |
| NAS1335C5C34D | 2013-08-219 | 2 | US |
| NAS1335C5C34D | 2008-01-17 | 2 | United States |
Cross Reference | NSN 5315-01-262-6967
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1335C5C34D | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-262-6967
Technical Data | NSN 5315-01-262-6967
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 HEAD STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 440C DETENT STEEL COMP 630 OR STEEL COMP 632 SPINDLE STEEL COMP 630 OR STEEL COMP 632 RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS5520 ASSN STD 2ND MATERIAL RESPONSE OR AMS5657 ASSN STD 2ND MATERIAL RESPONSE HEAD AMS5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS5520 ASSN STD 2ND MATERIAL RESPONSE OR AMS5657 ASSN STD 2ND MATERIAL RESPONSE SHANK QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE DETENT AMS5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS5520 ASSN STD 2ND MATERIAL RESPONSE OR MAS5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE AMS5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS5520 ASSN STD 2ND MATERIAL RESPONSE OR AMS5657 ASSN STD 2ND MATERIAL RESPONSE RING |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 54.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM DETENT |
| STYLE DESIGNATOR | Q240 RING HANDLE |
| HEAD DIAMETER | 0.7500 INCHES NOMINAL |
| SHANK DIAMETER | 0.3095 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM |
| RING HANDLE DIAMETER | 1.1411 INCHES NOMINAL |
| GRIP LENGTH | 3.4000 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 1.4900 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.4000 INCHES NOMINAL |
| ACTUATION TYPE | PULL AND PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | RING |
| SPECIFICATION/STANDARD DATA | 80205-NAS1335 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-01-262-6967
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
