NSN 5315-01-249-1045 MS203927R67, MS20392-7R67, 01-249-1045
Product Details | HEADED STRAIGHT PIN
5315-01-249-1045 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203927R67, MS20392-7R67, 5315-01-249-1045, 01-249-1045, 5315012491045, 012491045
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 FEB 1987 | 01-249-1045 | 02384 ( PIN, STRAIGHT, HEADED ) |

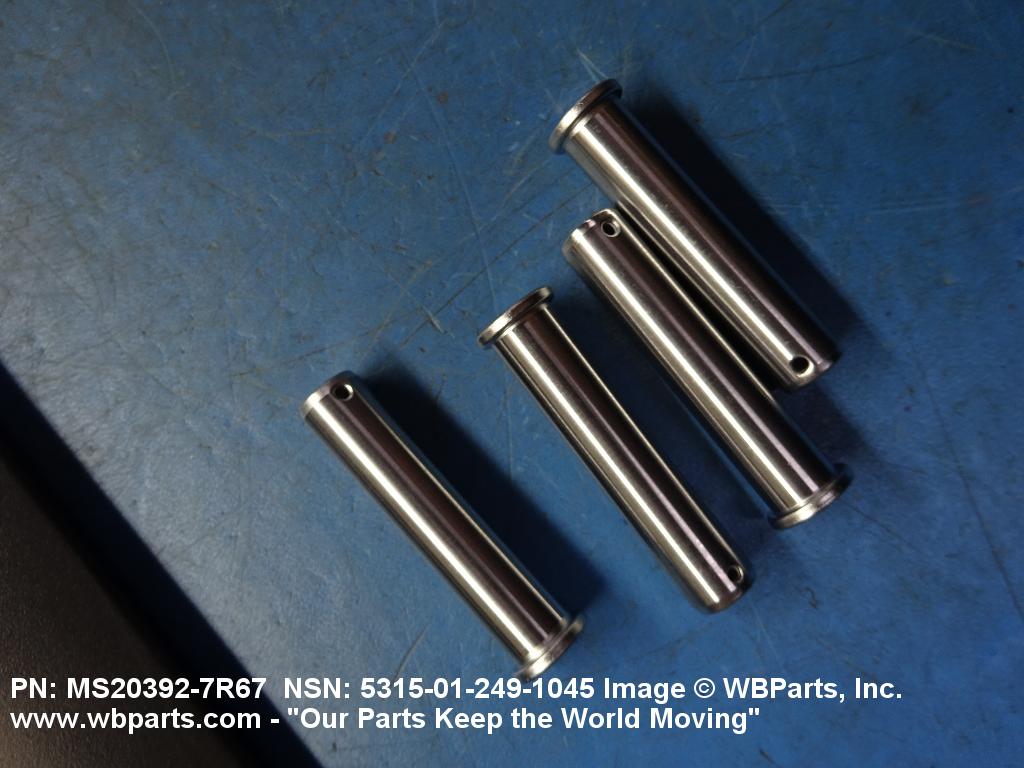

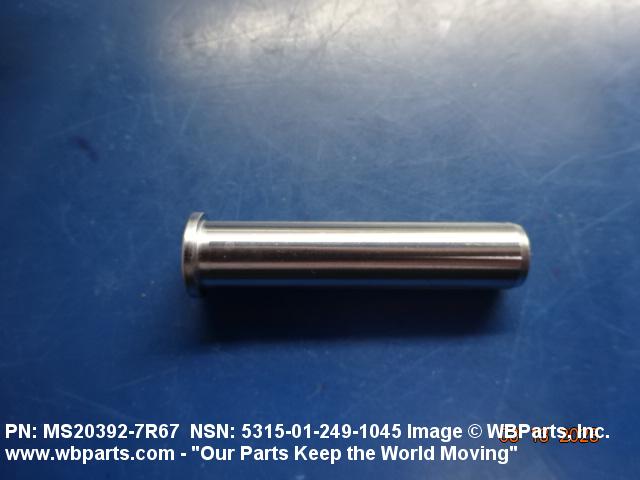

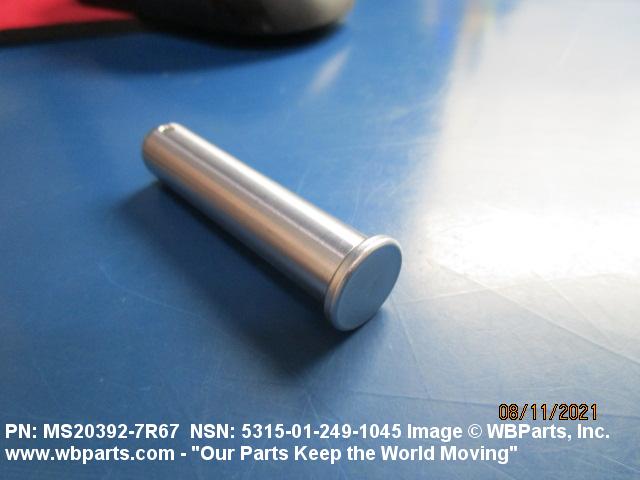

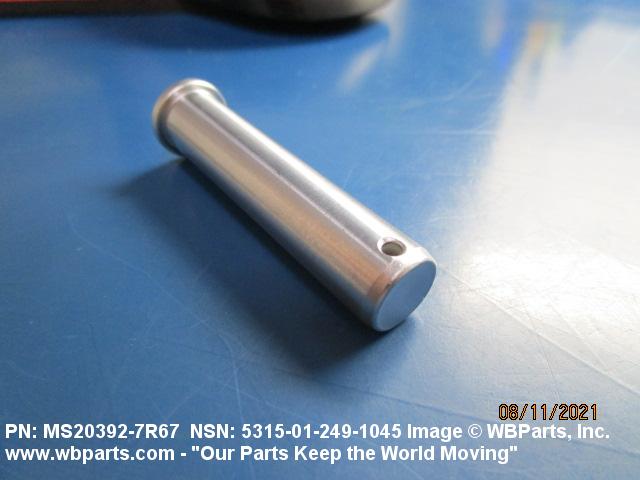

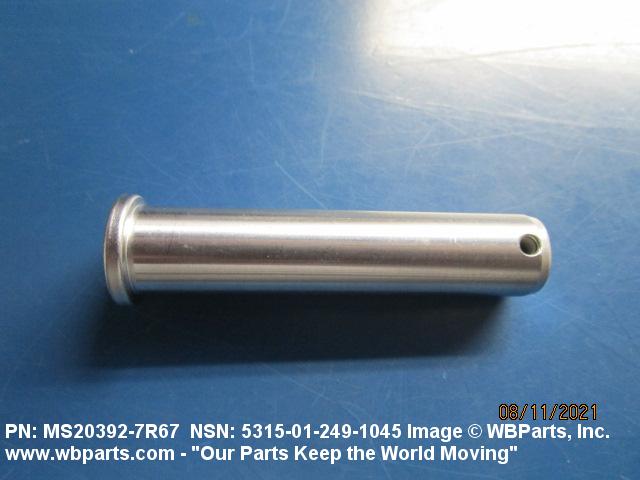

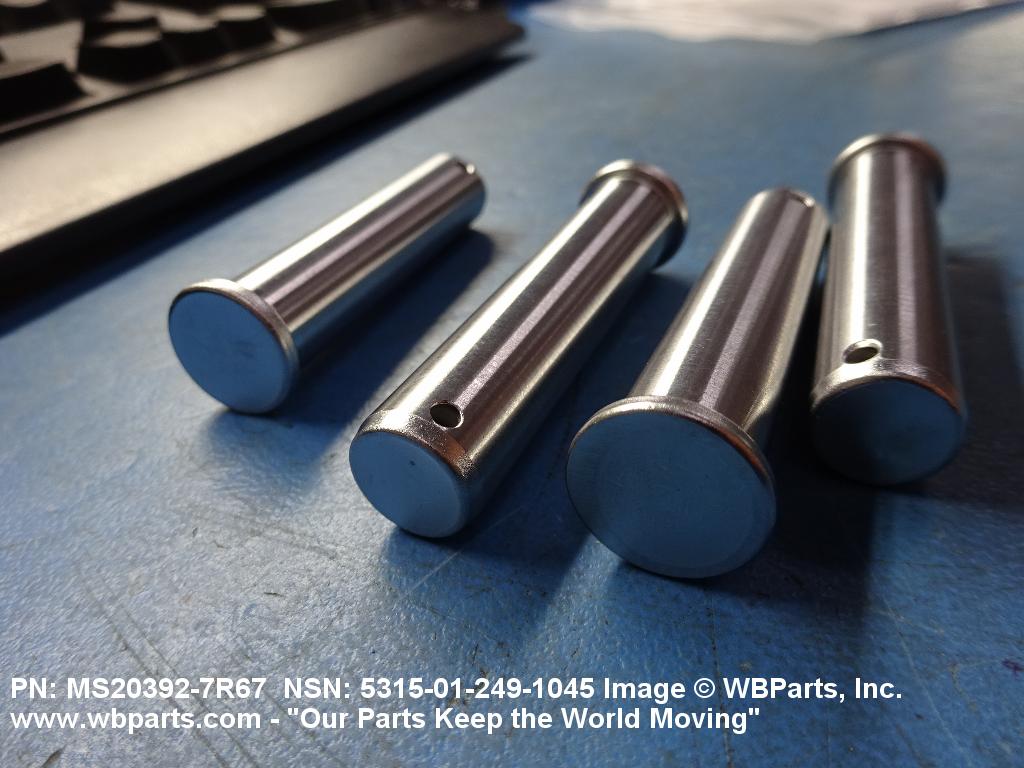

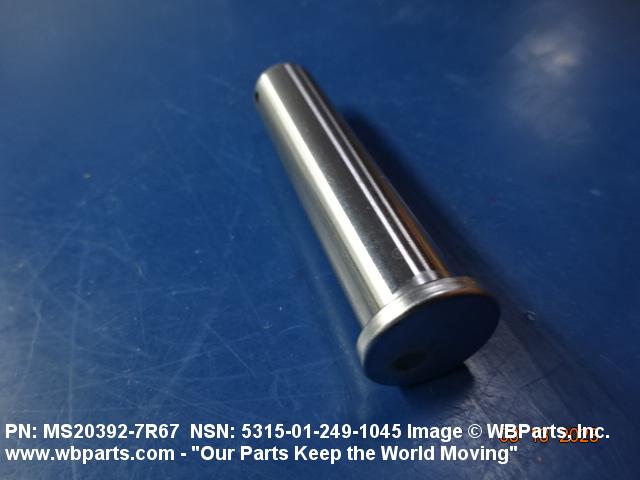

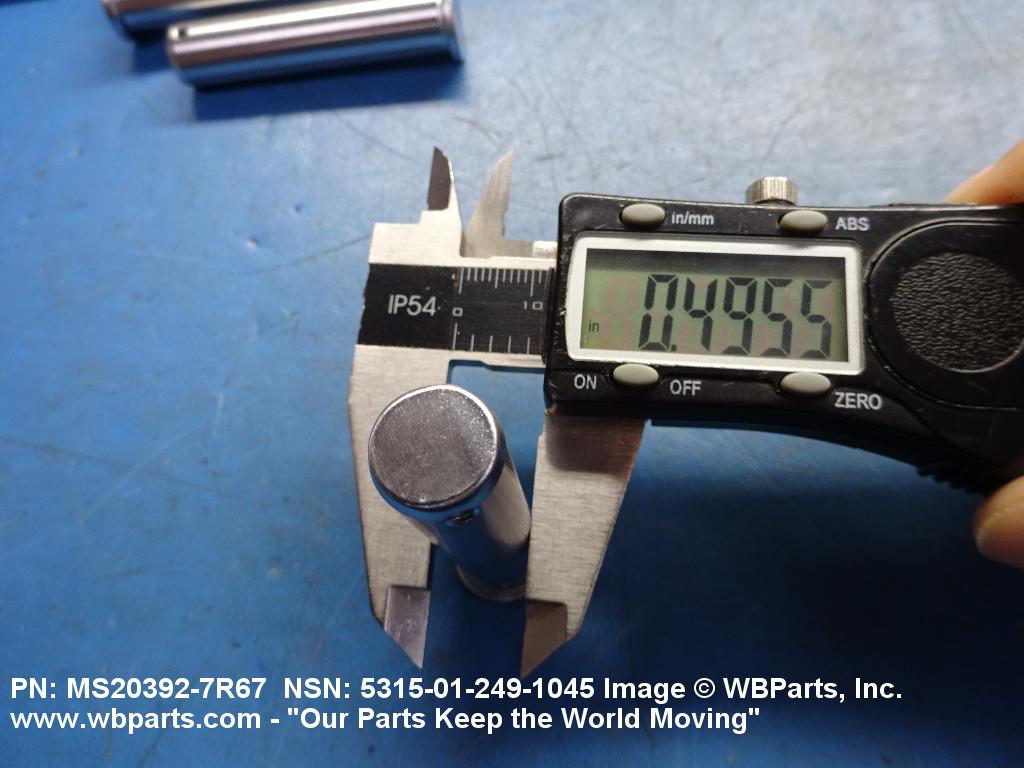

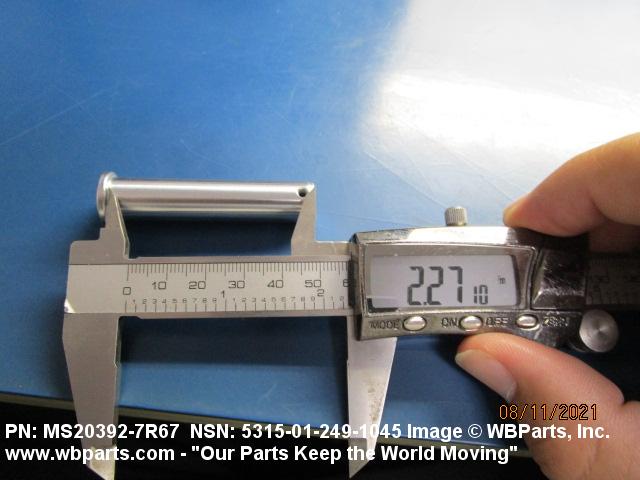

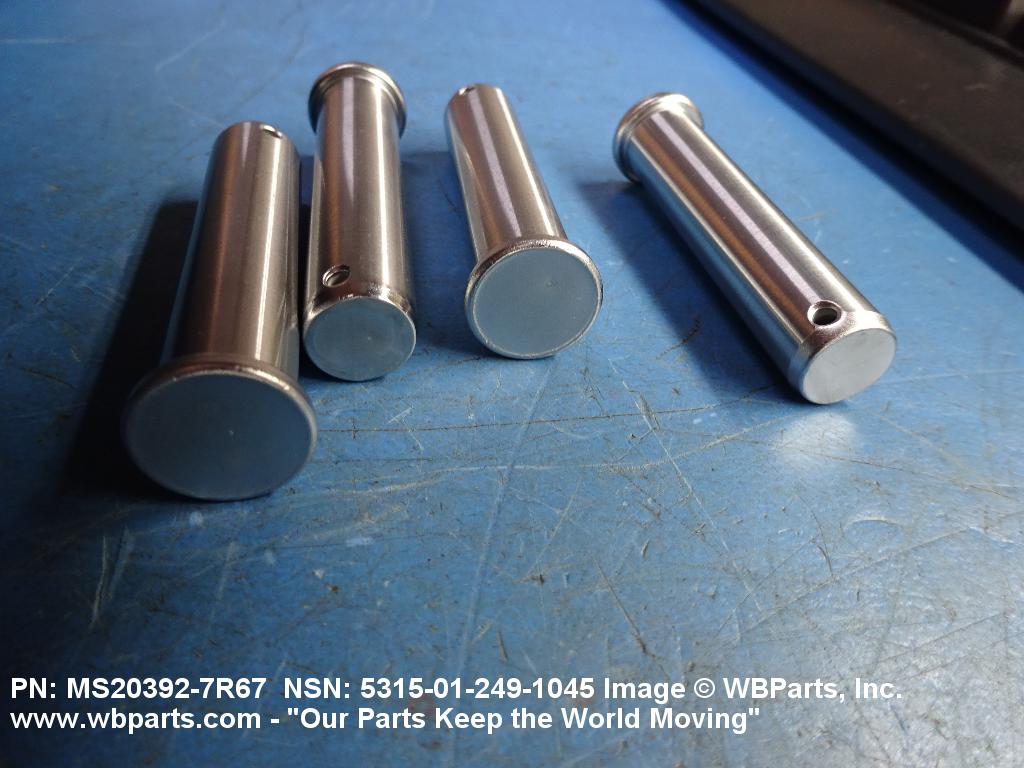

Drawings & Photos | NSN 5315-01-249-1045
Demand History | NSN 5315-01-249-1045
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS203927R67 | 2023-02-52 | 4 | Singapore |
| MS203927R67 | 2023-02-52 | 4 | SG |
| MS203927R67 | 2023-02-51 | 4 | Singapore |
| MS203927R67 | 2022-10-276 | 4 | United States |
| MS203927R67 | 2021-08-216 | 4 | United States |
| MS203927R67 | 2016-11-321 | 12 | United States |
| 5315-01-249-1045 | 2015-09-264 | 9 | DIBBS |
Cross Reference | NSN 5315-01-249-1045
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20392-7R67 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-249-1045
Related Products | NSN 5315-01-249-1045
Technical Data | NSN 5315-01-249-1045
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-13 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-C-320,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 49080 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |

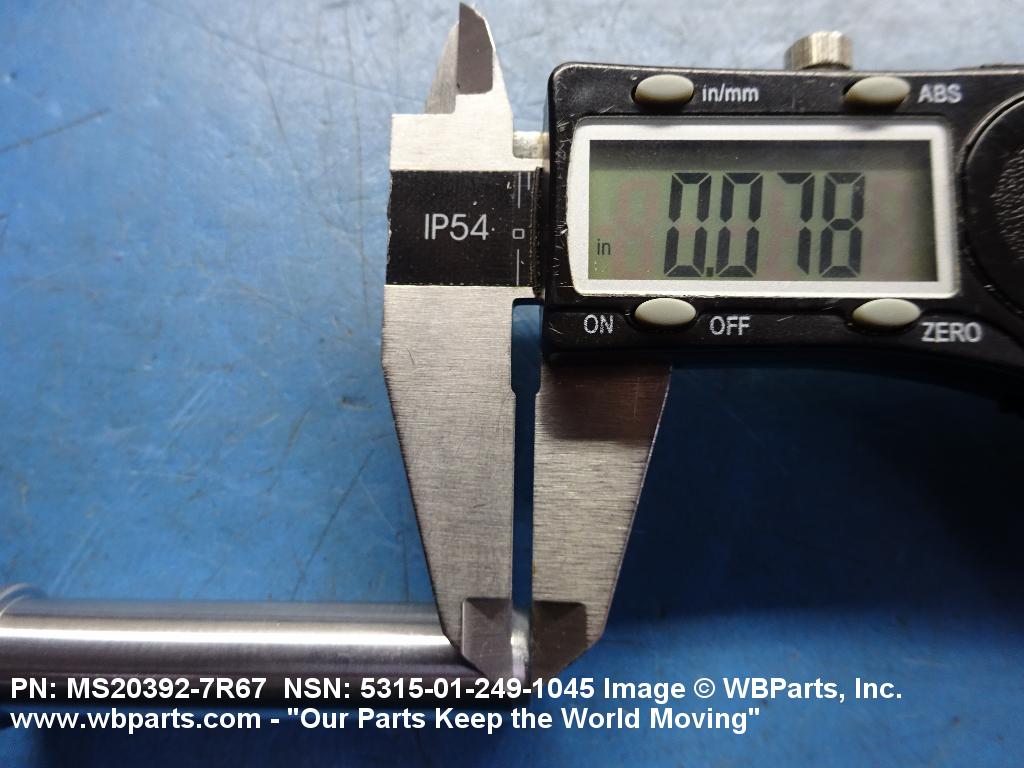

| CHAMFER LENGTH | 0.078 INCHES NOMINAL |

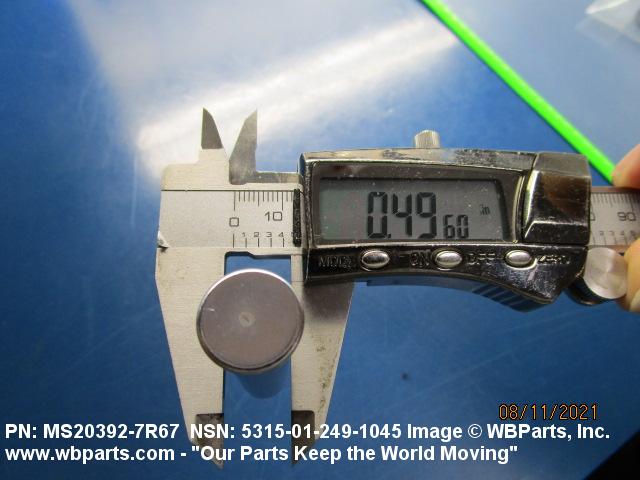

| DIAMETER | 0.495 INCHES MINIMUM AND 0.497 INCHES MAXIMUM |

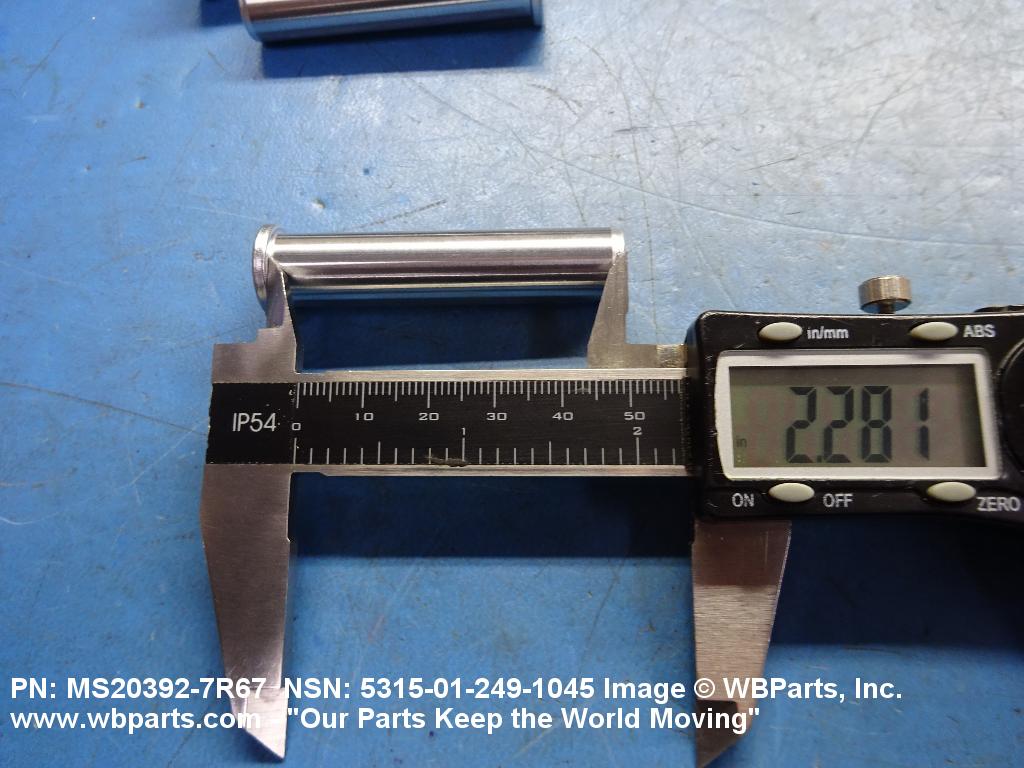

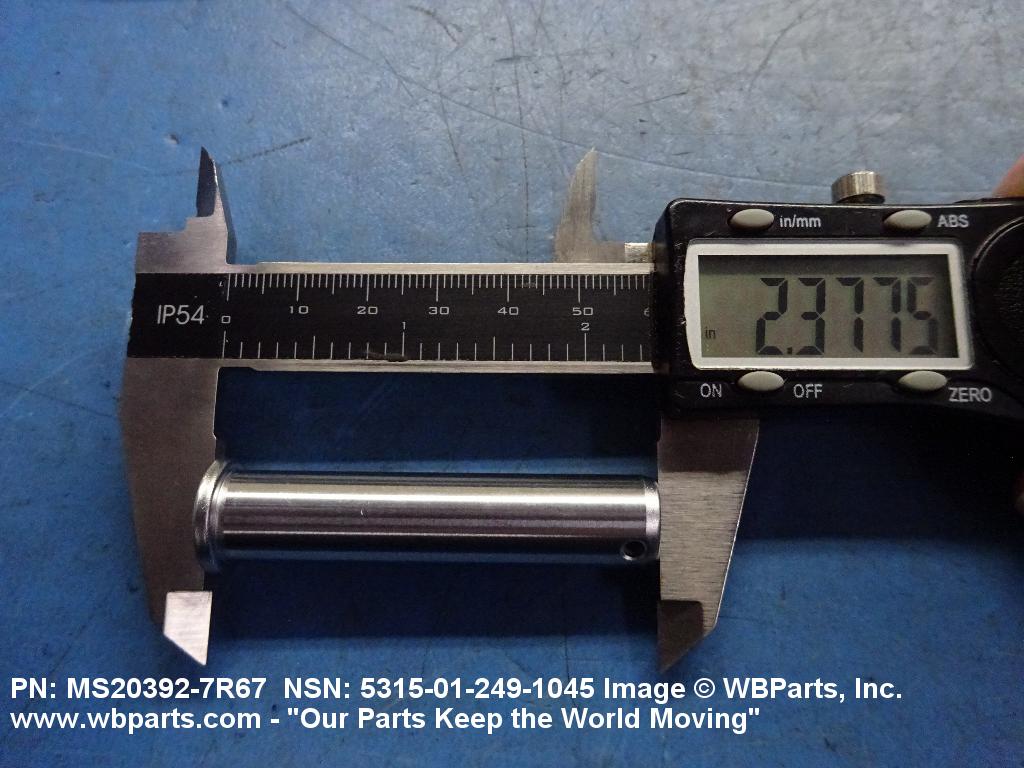

| UNDER HEAD LENGTH | 2.282 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |

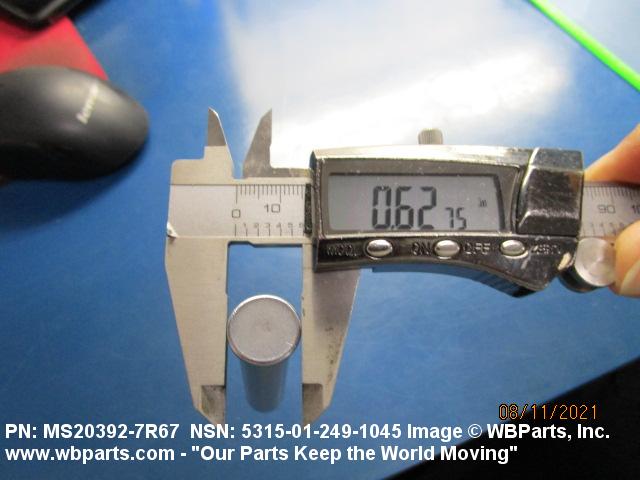

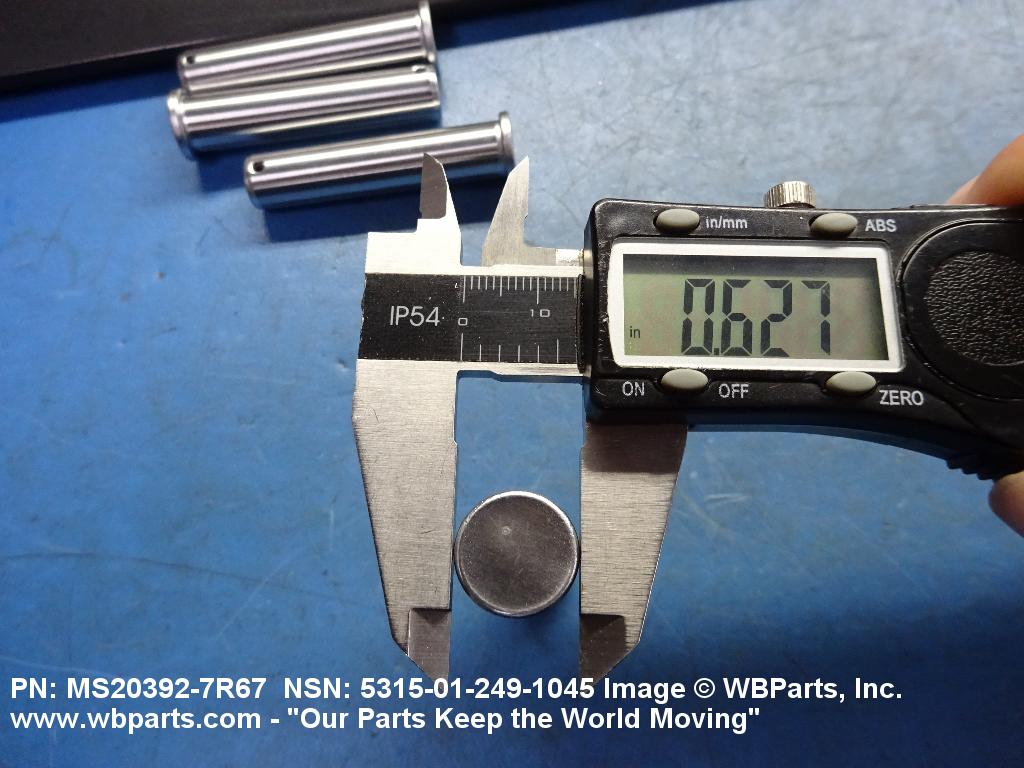

| PIN HEAD DIAMETER | 0.625 INCHES NOMINAL |

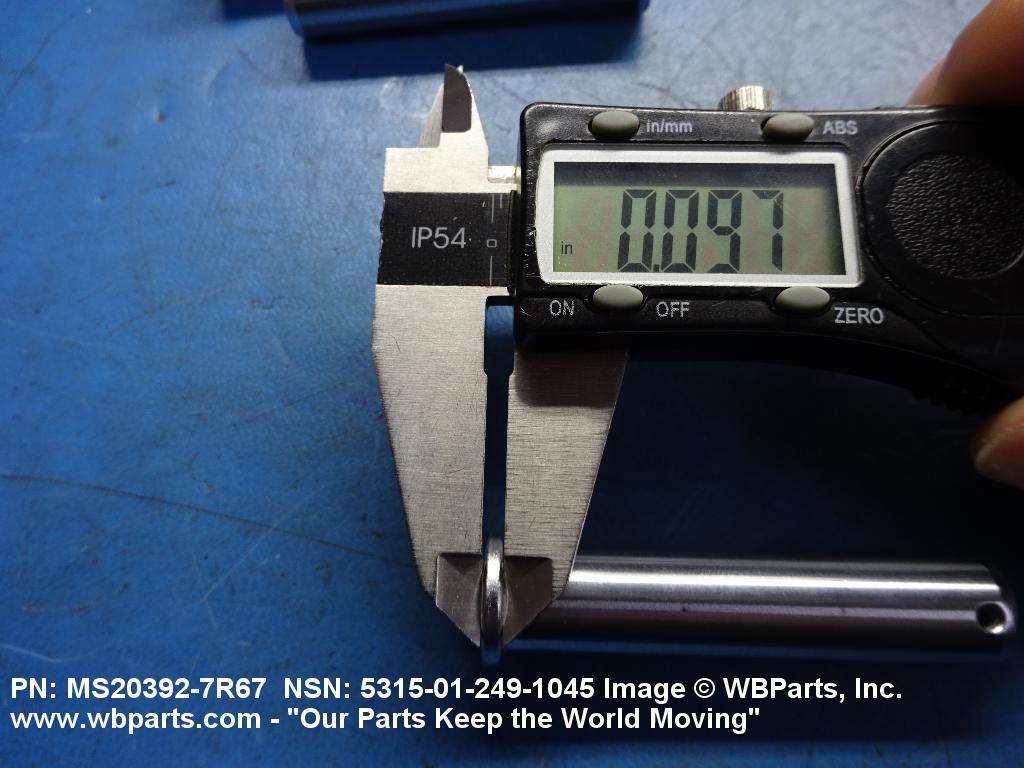

| HEIGHT | 0.093 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |

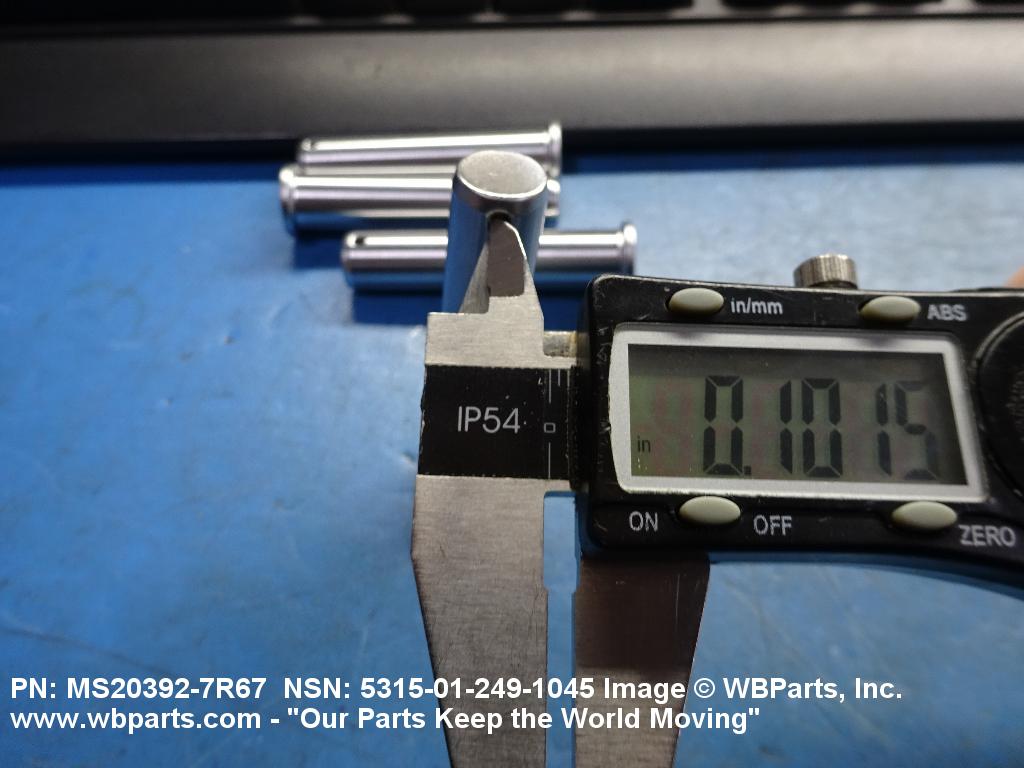

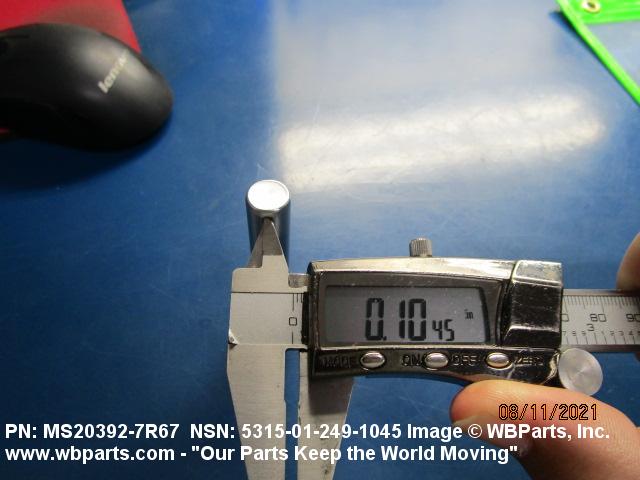

| FIRST HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.116 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.135 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-7R67 |
Restrictions/Controls & Freight Information | NSN 5315-01-249-1045
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 155690 | PINS WIRE NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-249-1045
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
