5315-01-246-1865 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 787AS217, 5315-01-246-1865, 01-246-1865, 5315012461865, 012461865
Hardware and Abrasives | Nails, Machine Keys, and Pins
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 10 DEC 1986 | 01-246-1865 | 02386 ( PIN, GROOVED, HEADLESS ) |
Cross Reference | NSN 5315-01-246-1865
Part Number | Cage Code | Manufacturer |
---|---|---|
787AS217 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-246-1865
Related Products | NSN 5315-01-246-1865
Technical Data | NSN 5315-01-246-1865
Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 630 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 COND A ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

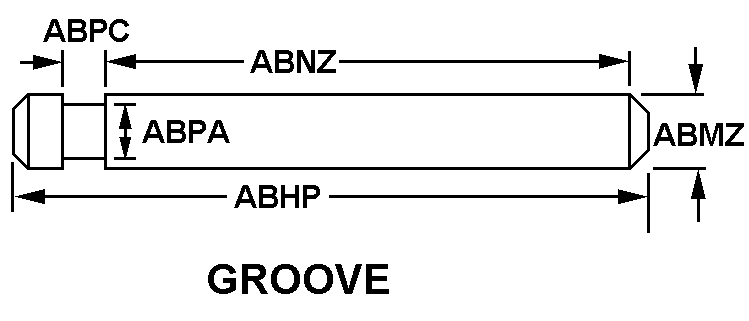

STYLE DESIGNATOR | F118 GROOVE |
OVERALL LENGTH | 4.440 INCHES NOMINAL |
DIAMETER | 0.497 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
EFFECTIVE LENGTH | 2.120 INCHES NOMINAL |
UNDERCUT DIAMETER | 0.450 INCHES NOMINAL |
UNDERCUT WIDTH | 0.200 INCHES NOMINAL |

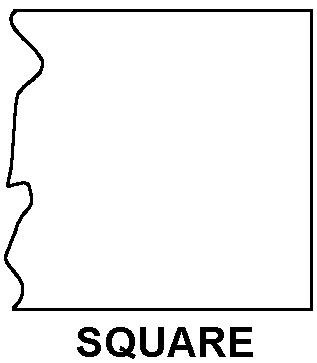

FIRST END STYLE | 9 SQUARE |
SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
FIRST END LOCATION | BOTH ENDS |
