NSN 5315-01-236-8290 75A1500602001, 75A150060-2001, 01-236-8290
Product Details | HEADED STRAIGHT PIN

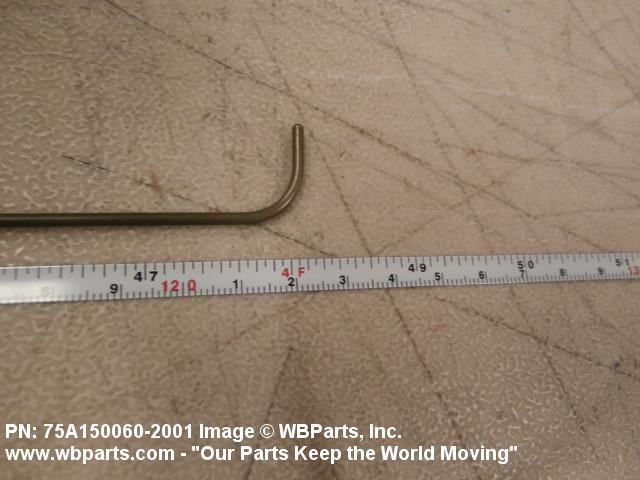

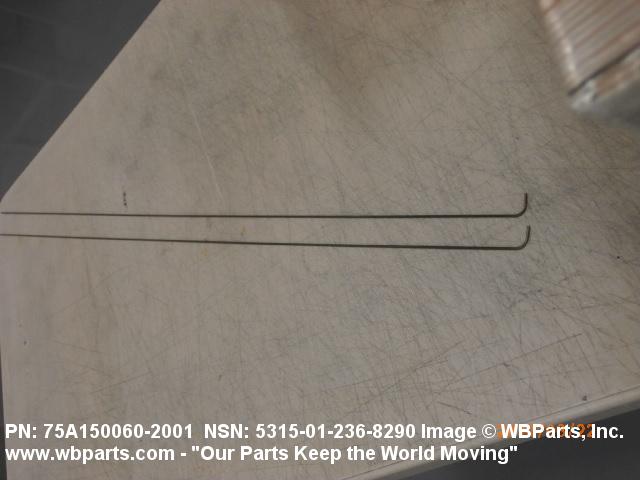

5315-01-236-8290 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 75A1500602001, 75A150060-2001, 5315-01-236-8290, 01-236-8290, 5315012368290, 012368290
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUL 1986 | 01-236-8290 | 02384 ( PIN, STRAIGHT, HEADED ) |

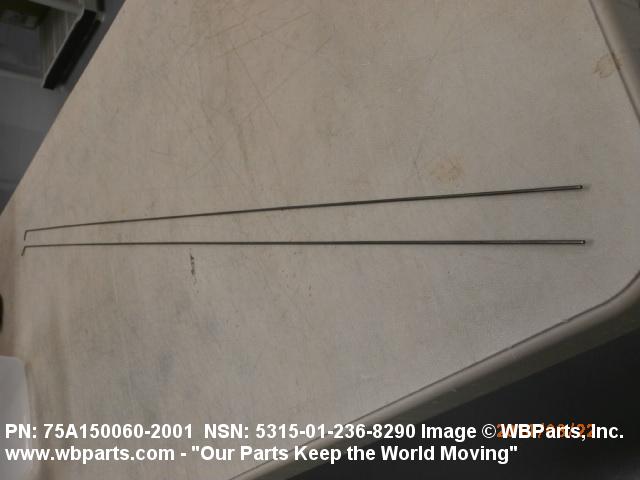

Drawings & Photos | NSN 5315-01-236-8290
Demand History | NSN 5315-01-236-8290
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 75A1500602001 | 2016-02-56 | 3 | United States |
| 5315-01-236-8290 | 2015-09-273 | 3 | US |
| 5315-01-236-8290 | 2014-08-230 | 2 | United States |
| 5315-01-236-8290 | 2014-08-219 | 1 | United States |
Cross Reference | NSN 5315-01-236-8290
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75A150060-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-236-8290
Technical Data | NSN 5315-01-236-8290

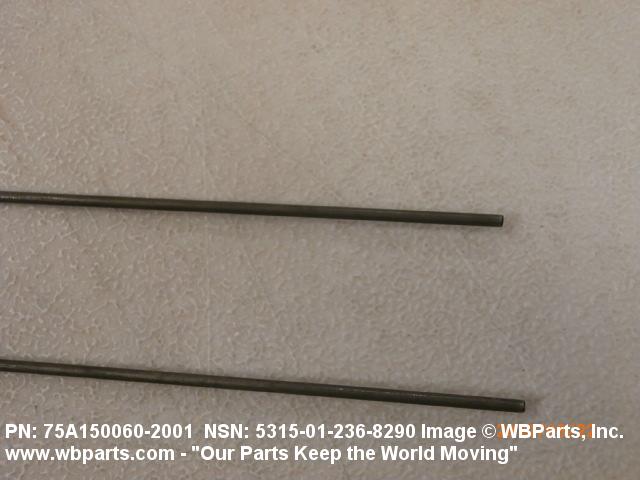

| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.015 INCHES NOMINAL |

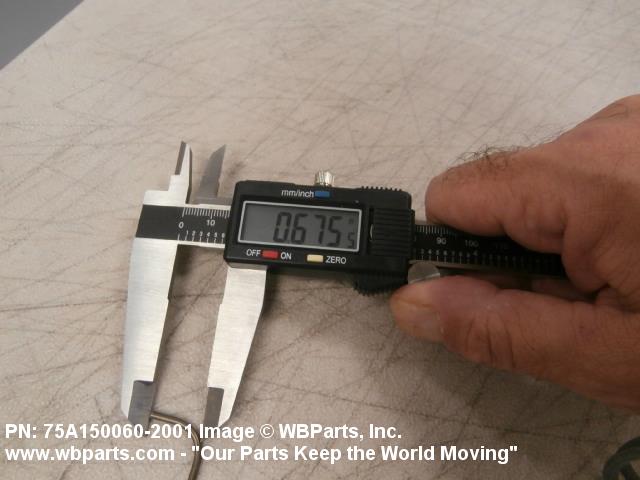

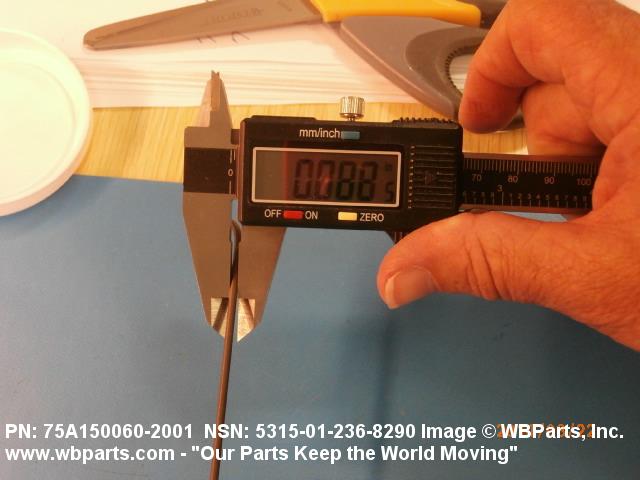

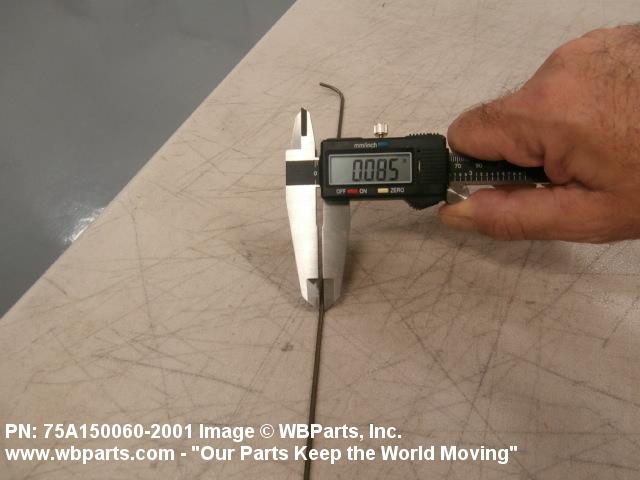

| DIAMETER | 0.088 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |

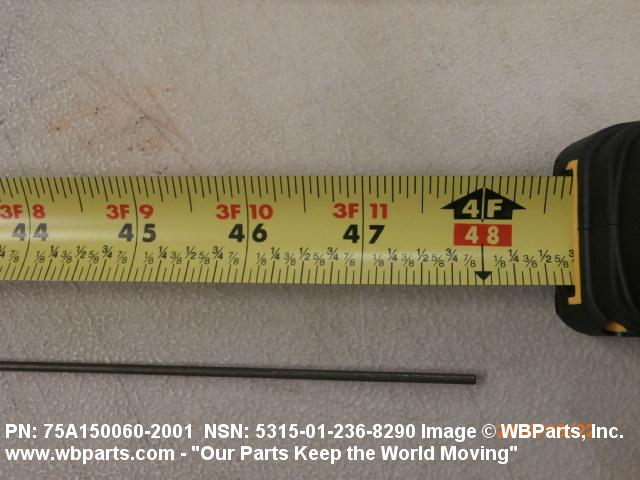

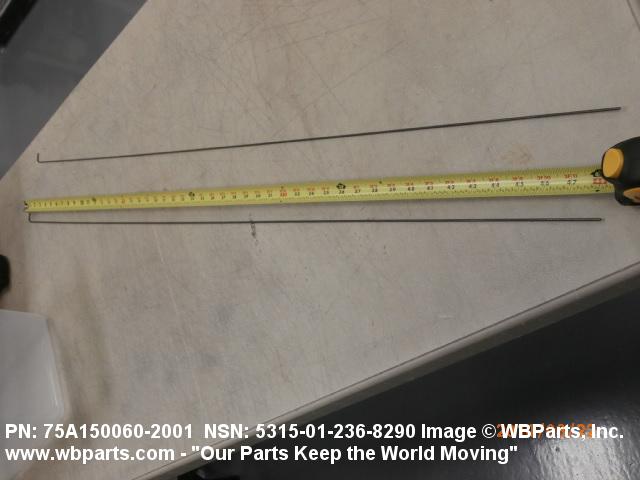

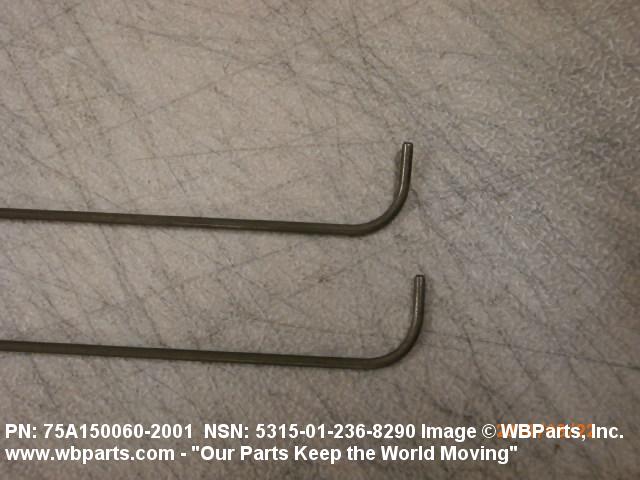

| UNDER HEAD LENGTH | 47.940 INCHES MINIMUM AND 47.960 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| HEAD STYLE | 70 L SHAPE |

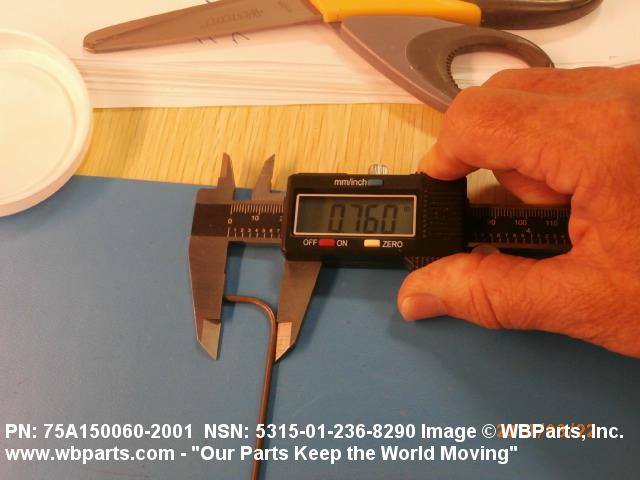

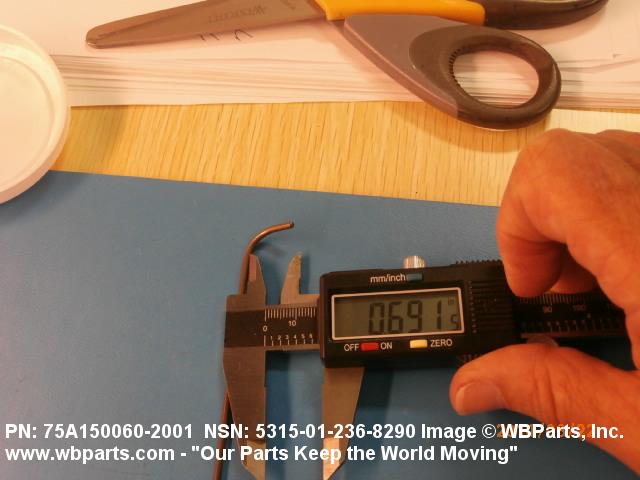

| HEAD LENGTH | 0.710 INCHES MINIMUM AND 0.770 INCHES MAXIMUM |
