NSN 5315-01-236-1987 MS17987C1422, NAS1342A6C22D, BLC14R22S

Product Details | QUICK RELEASE PIN

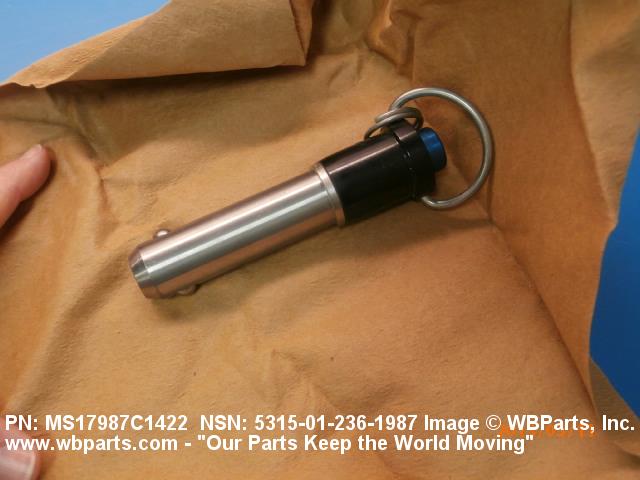

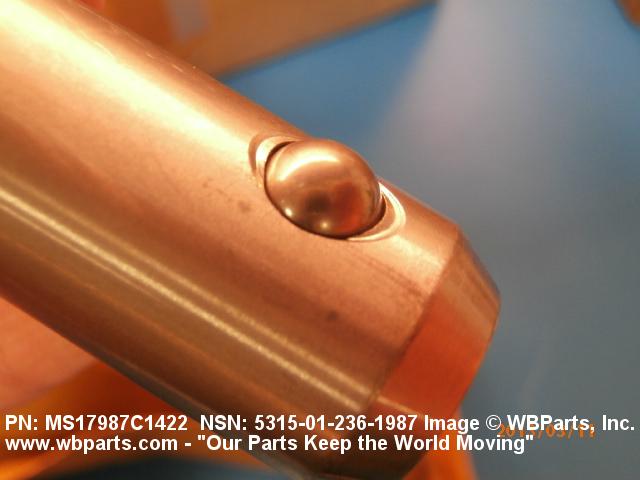

5315-01-236-1987 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: MS17987C1422, NAS1342A6C22D, BLC14R22S, CL-14-BLP-R-2.2-S, CL14BLPR22S, 5315-01-236-1987, 01-236-1987, 5315012361987, 012361987

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	14 JUL 1986	01-236-1987	08323 ( PIN, QUICK RELEASE )

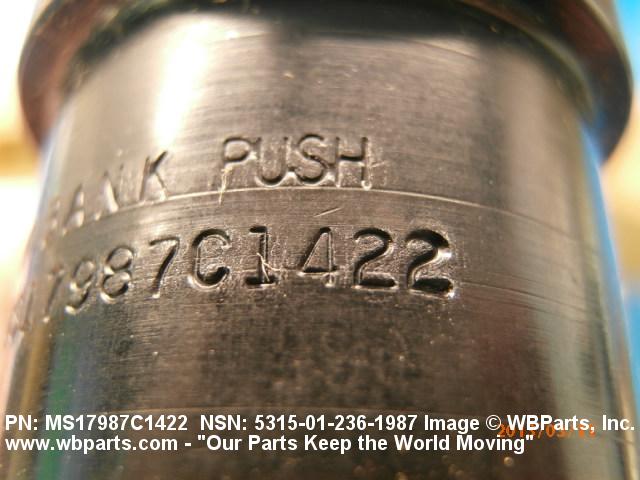

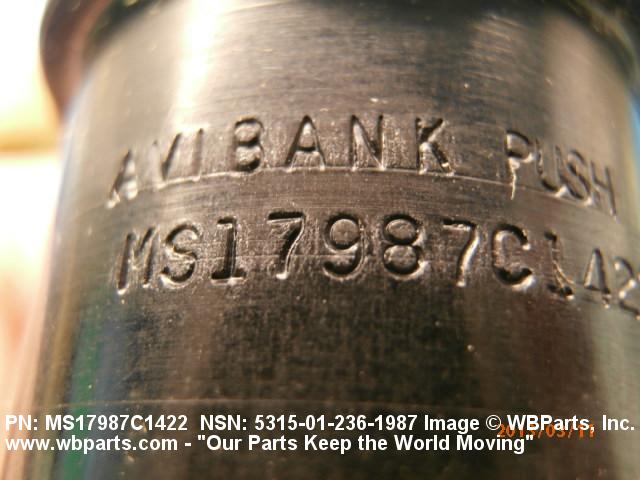

Drawings & Photos | NSN 5315-01-236-1987

Part Number	Request Date	QTY	Origin
5315-01-236-1987	2013-02-38	6	United States
MS17987C1422	2013-01-10	6	United States
5315-01-236-1987	2009-12-343	20	United States

Cross Reference | NSN 5315-01-236-1987

Part Number	Cage Code	Manufacturer

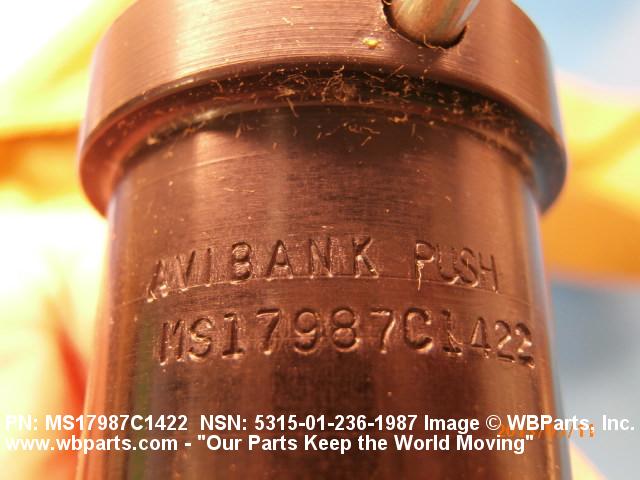

BLC14R22S	84256	AVIBANK MFG., INC.
CL-14-BLP-R-2.2-S	99862	CARR LANE MANUFACTURING COMPANY DBA CARR LANE MANUFACTURING
MS17987C1422	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17987C1422	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1342A6C22D	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-236-1987

Compare

Related Products | NSN 5315-01-236-1987

5315-01-236-1988, 5315-01-236-1989, 5315-01-236-1992, 5315-01-236-1994, 5315-01-236-1995

Technical Data | NSN 5315-01-236-1987

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE
SURFACE TREATMENT	PASSIVATE SHANK PASSIVATE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
HARDNESS RATING	40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE
SHEAR STRENGTH	112500 DOUBLE POUND

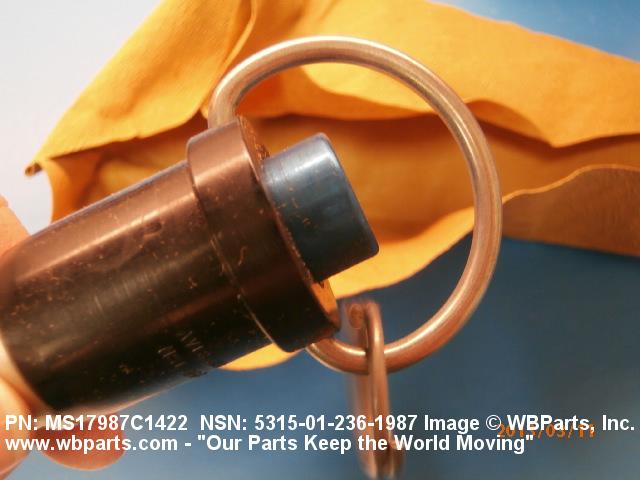

STYLE DESIGNATOR	Q240 RING HANDLE

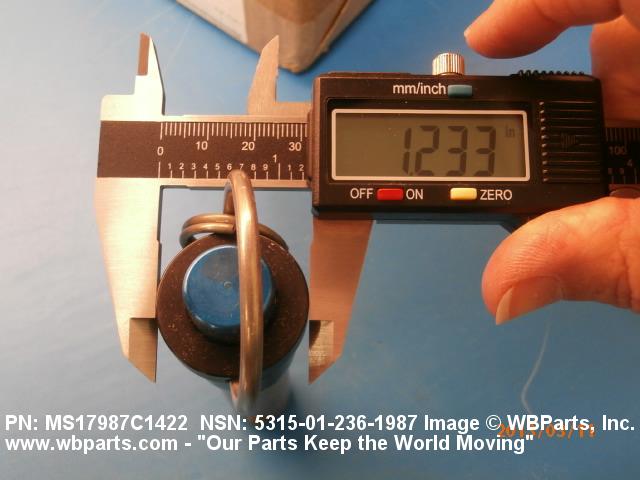

HEAD DIAMETER	0.980 INCHES MINIMUM AND 1.235 INCHES MAXIMUM

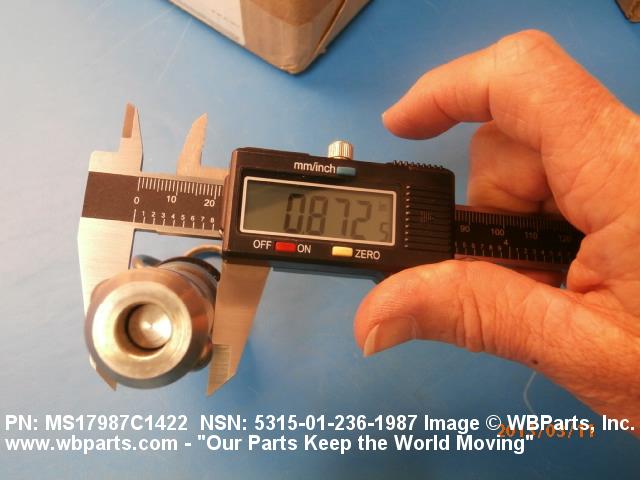

SHANK DIAMETER	0.8720 INCHES MINIMUM AND 0.8735 INCHES MAXIMUM
RING HANDLE DIAMETER	1.640 INCHES MINIMUM

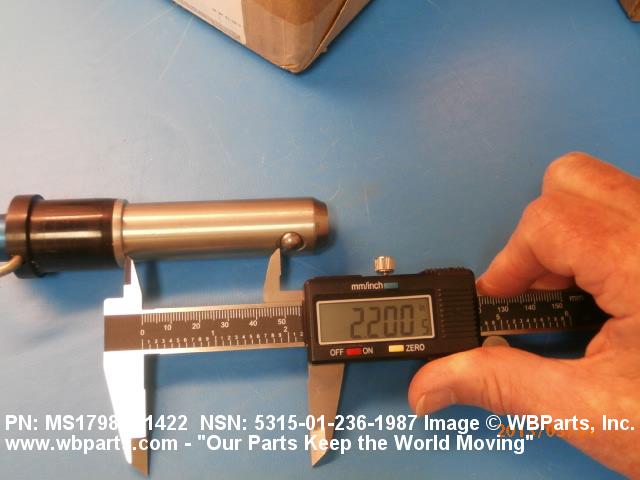

GRIP LENGTH	2.200 INCHES MINIMUM AND 2.220 INCHES MAXIMUM

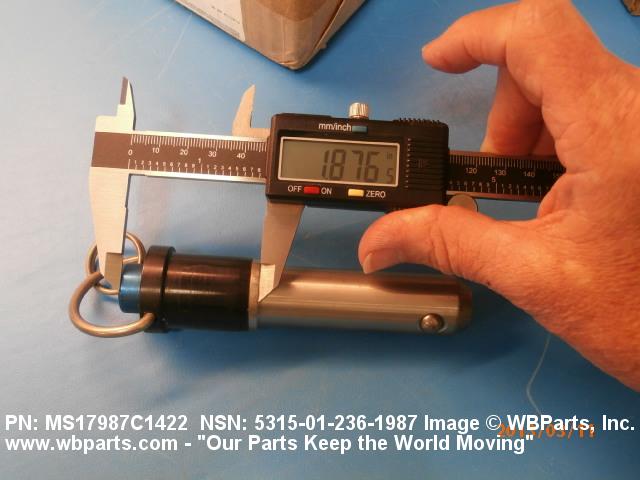

SHOULDER TO HEAD END DISTANCE	1.875 INCHES MINIMUM

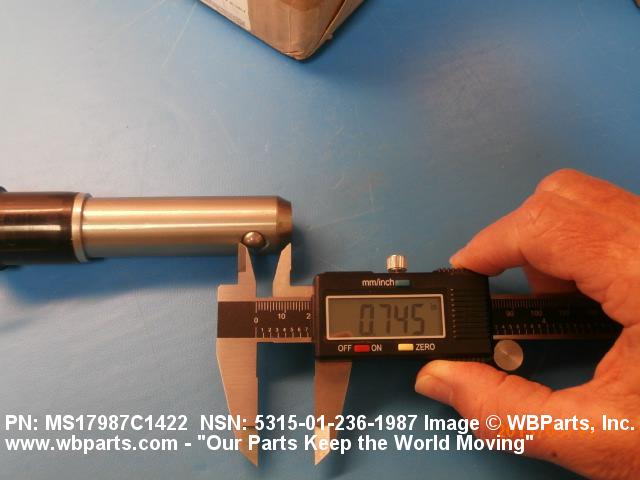

DETENT TO TAPERED END DISTANCE	0.730 INCHES MINIMUM AND 0.760 INCHES MAXIMUM
ACTUATION TYPE	PUSH
ACTUATION METHOD	PUSH BUTTON
DETENT QUANTITY	2
PIN ATTACHMENT TYPE	LINK OR RING
