NSN 5315-01-169-8341 20T7395, 01-169-8341, 011698341
Product Details | HEADED STRAIGHT PIN
5315-01-169-8341 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 20T7395, 5315-01-169-8341, 01-169-8341, 5315011698341, 011698341
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JAN 1984 | 01-169-8341 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-169-8341
Cross Reference | NSN 5315-01-169-8341
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20T7395 | 27315 | MORRIS MATERIAL HANDLING, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-169-8341
Related Products | NSN 5315-01-169-8341
Technical Data | NSN 5315-01-169-8341
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.062 INCHES NOMINAL |
| DIAMETER | 0.540 INCHES NOMINAL |
| UNDER HEAD LENGTH | 5.000 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 45.0 DEGREES NOMINAL |

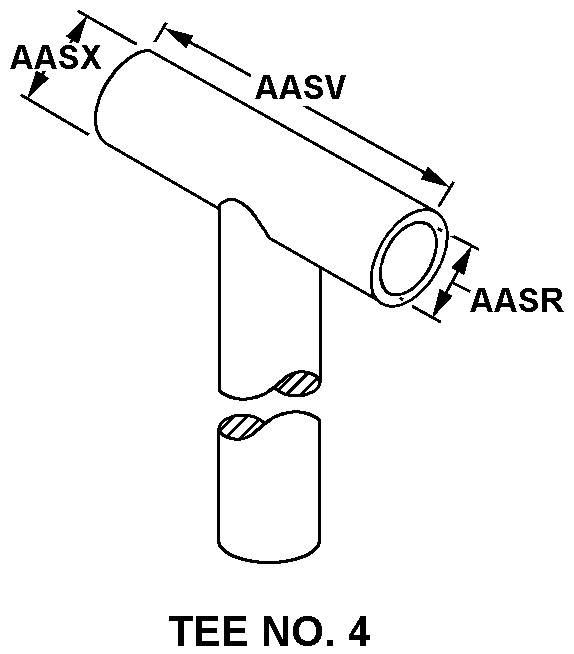

| HEAD STYLE | 66 TEE NO. 4 |
| HEAD INSIDE DIAMETER | 0.957 INCHES NOMINAL |
| HEAD LENGTH | 0.938 INCHES NOMINAL |
| TEE BOLT CYLINDRICAL HEAD DIAMETER | 1.315 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 5 DRILLED THRU HEAD |
| FIRST HOLE DIAMETER | 0.219 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 5.6575 INCHES NOMINAL |
| WELDING PROJECTION LOCATION AND QUANTITY | 1 UNDER HEAD |
| MANUFACTURERS CODE | 27315 |
| DESIGN CONTROL REFERENCE | 20T7395 |
Restrictions/Controls & Freight Information | NSN 5315-01-169-8341
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-169-8341
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
