NSN 5315-01-154-1737 MBEU66133, MBEU-66133, 01-154-1737
Product Details | HEADED STRAIGHT PIN
5315-01-154-1737 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MBEU66133, MBEU-66133, 5315-01-154-1737, 01-154-1737, 5315011541737, 011541737
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 1983 | 01-154-1737 | 02384 ( PIN, STRAIGHT, HEADED ) |

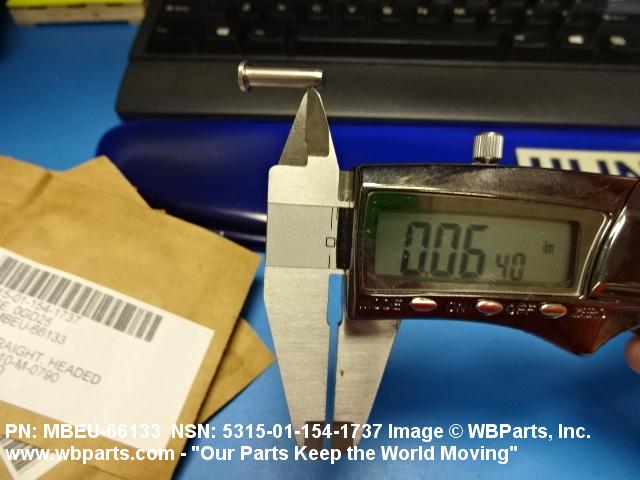

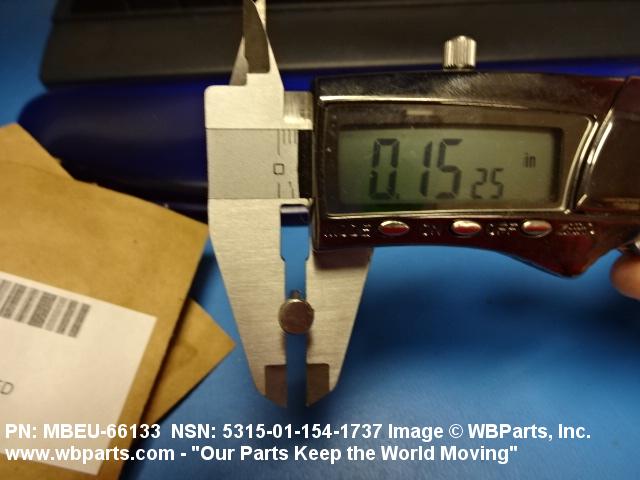

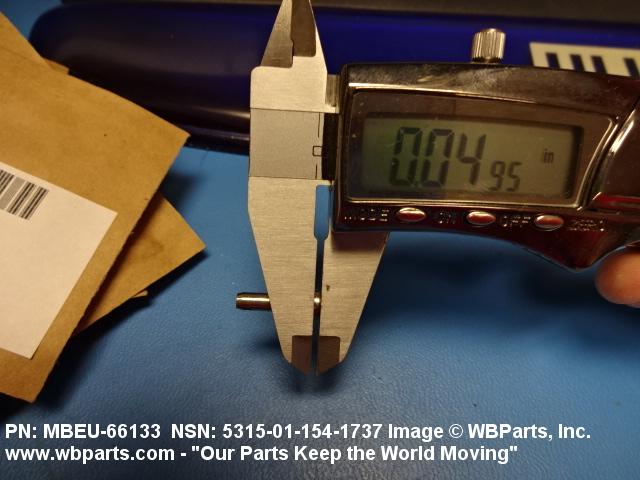

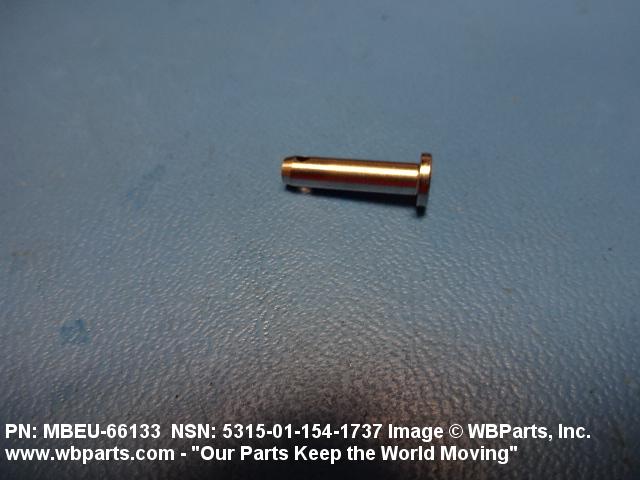

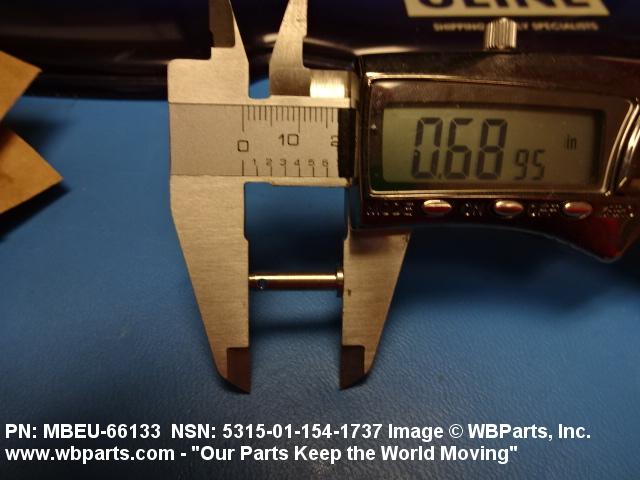

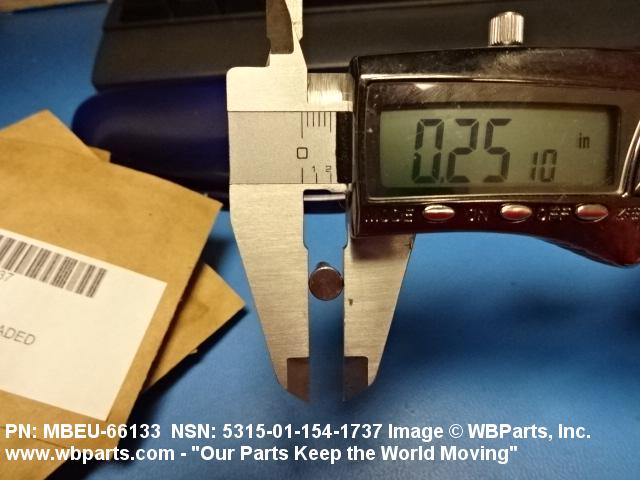

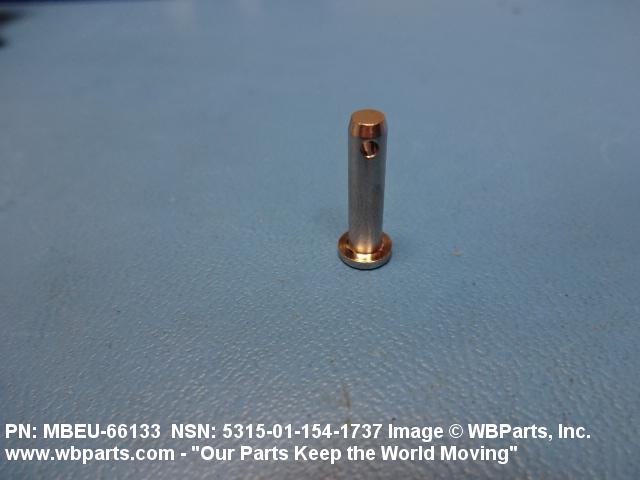

Drawings & Photos | NSN 5315-01-154-1737
Demand History | NSN 5315-01-154-1737
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-154-1737 | 2016-08-243 | 88 | United States |
| 5315-01-154-1737 | 2016-06-181 | 88 | DIBBS |
| 5315-01-154-1737 | 2015-06-163 | 35 | DIBBS |
| 5315-01-154-1737 | 2015-05-131 | 1 | DIBBS |
| 5315-01-154-1737 | 2015-04-99 | 1 | DIBBS |
| 5315-01-154-1737 | 2010-03-68 | 275 | DIBBS |
| 5315-01-154-1737 | 2010-01-11 | 24 | DIBBS |
| 5315-01-154-1737 | 2009-10-302 | 24 | DIBBS |
| 5315-01-154-1737 | 2009-08-229 | 40 | DIBBS |
Cross Reference | NSN 5315-01-154-1737
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MBEU-66133 | U1604 | MARTIN-BAKER AIRCRAFT CO LTD DBA MARTIN-BAKER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-154-1737
Related Products | NSN 5315-01-154-1737
Technical Data | NSN 5315-01-154-1737
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | S130D,FSCM U1604 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.050 INCHES NOMINAL |
| DIAMETER | 0.151 INCHES MINIMUM AND 0.155 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.640 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 30.0 DEGREES NOMINAL |
| HEAD STYLE | 17 FLAT CHAMFER |
| PIN HEAD DIAMETER | 0.250 INCHES NOMINAL |
| HEIGHT | 0.050 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.067 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.094 INCHES NOMINAL |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| MANUFACTURERS CODE | U1604 |
| DESIGN CONTROL REFERENCE | MBEU-66133 |
Restrictions/Controls & Freight Information | NSN 5315-01-154-1737
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-154-1737
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
