Product Details | HEADED STRAIGHT PIN

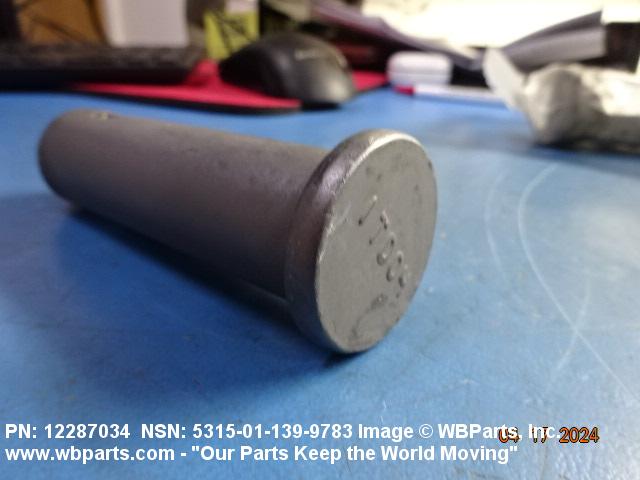

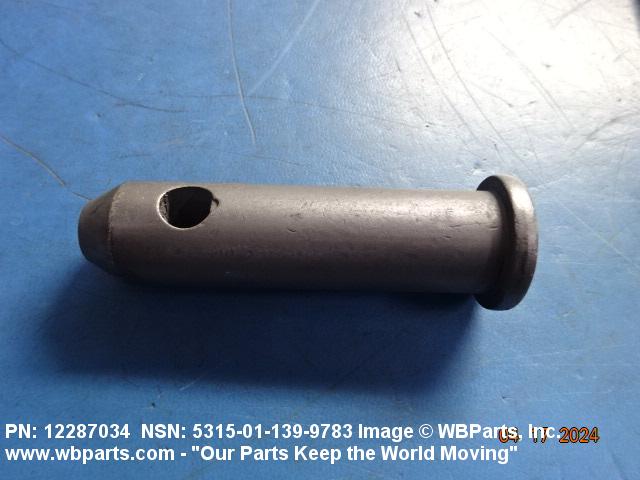

5315-01-139-9783 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 12287034, 12287034-8, 5315-01-139-9783, 01-139-9783, 5315011399783, 011399783, 122870348
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 OCT 1982 | 01-139-9783 | 02384 ( PIN, STRAIGHT, HEADED ) |

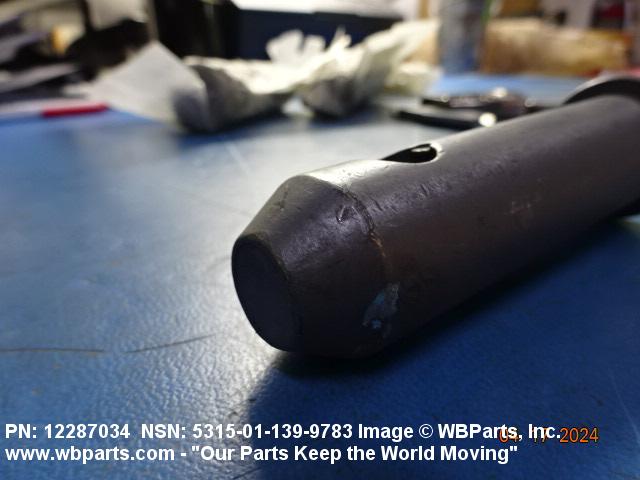

Drawings & Photos | NSN 5315-01-139-9783
Demand History | NSN 5315-01-139-9783
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-139-9783 | 2024-10-275 | 329 | DIBBS |
| 5315-01-139-9783 | 2024-06-168 | 369 | DIBBS |
| 5315-01-139-9783 | 2024-03-74 | 6 | United States |
| 5315-01-139-9783 | 2024-02-46 | 727 | DIBBS |
| 5315-01-139-9783 | 2023-04-97 | 503 | DIBBS |
| 5315-01-139-9783 | 2023-03-89 | 503 | DIBBS |
| 5315-01-139-9783 | 2023-01-26 | 1734 | DIBBS |
| 5315-01-139-9783 | 2023-01-18 | 1734 | DIBBS |
| 5315-01-139-9783 | 2018-11-305 | 928 | DIBBS |
| 5315-01-139-9783 | 2017-11-333 | 1039 | DIBBS |
| 5315-01-139-9783 | 2017-08-243 | 1267 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-139-9783
Related Products | NSN 5315-01-139-9783
Technical Data | NSN 5315-01-139-9783
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 4140 OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |

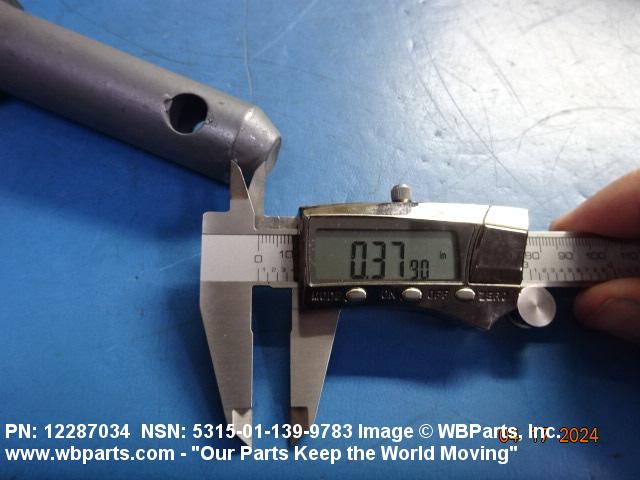

| CHAMFER LENGTH | 0.380 INCHES NOMINAL |

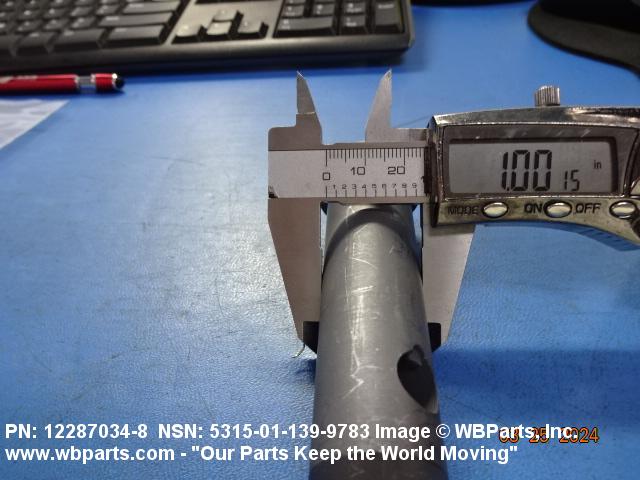

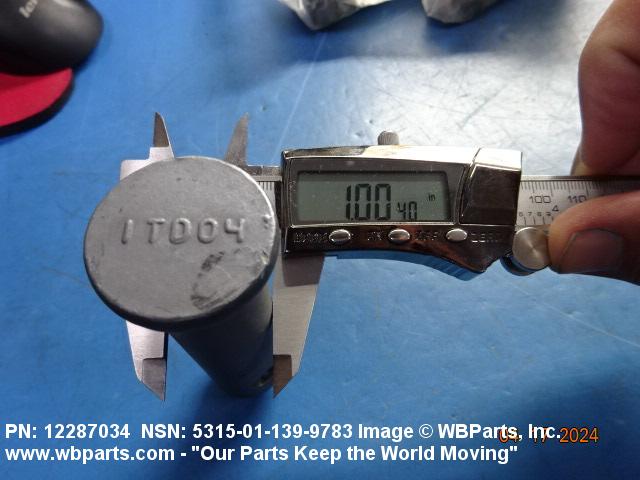

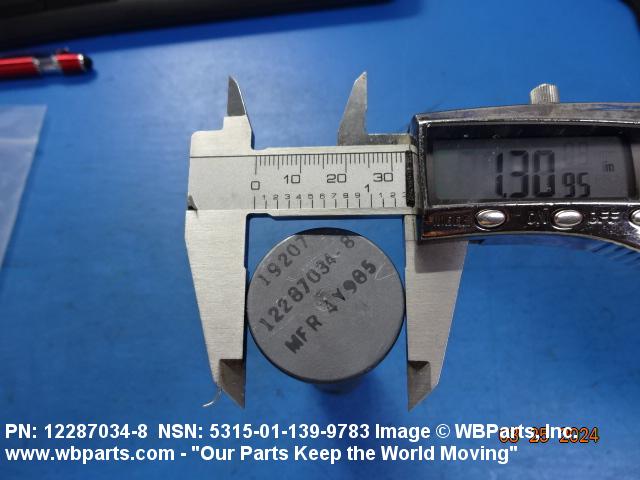

| DIAMETER | 1.000 INCHES NOMINAL |

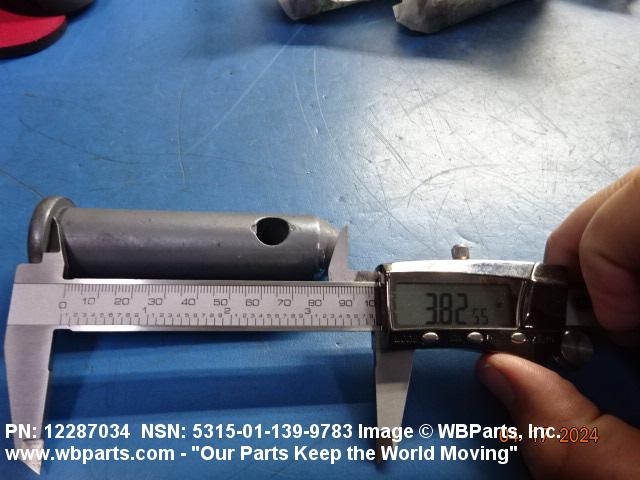

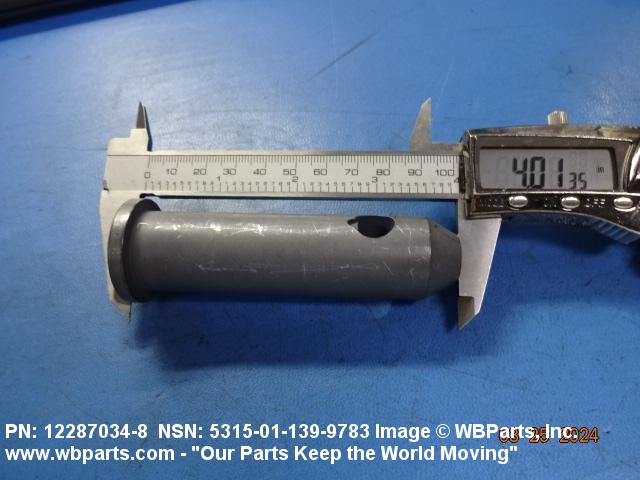

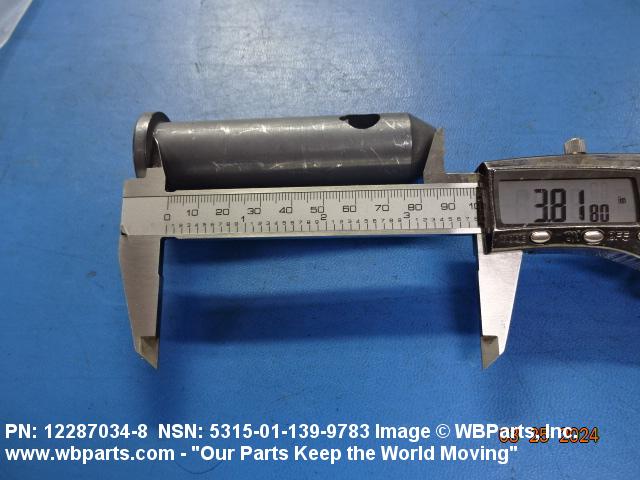

| UNDER HEAD LENGTH | 3.820 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 30.0 DEGREES NOMINAL |
| HEAD STYLE | 16 FLAT |

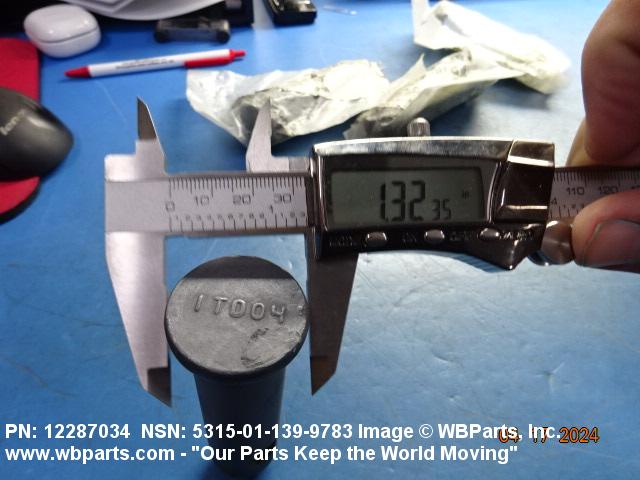

| PIN HEAD DIAMETER | 1.310 INCHES NOMINAL |

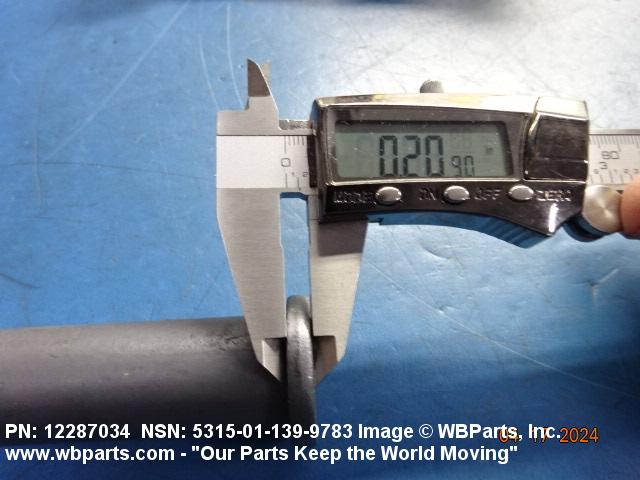

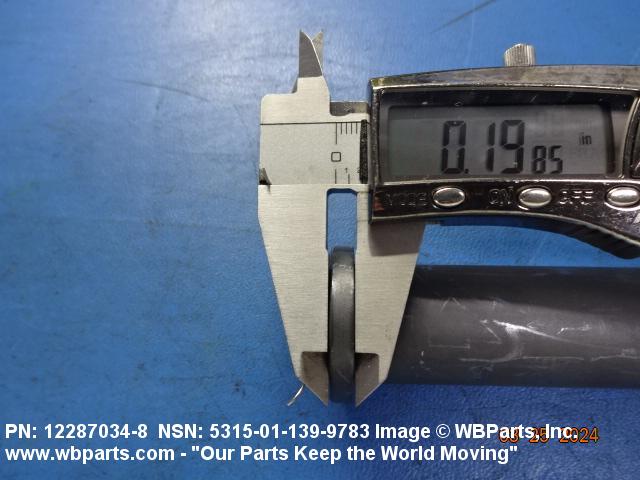

| HEIGHT | 0.190 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 4 DRILLED THRU CENTER |

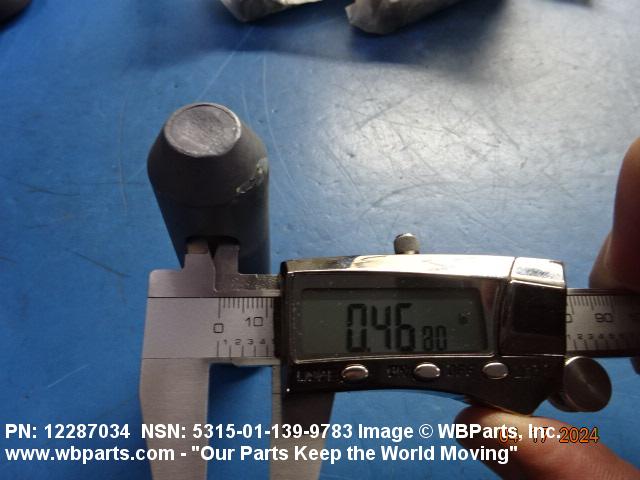

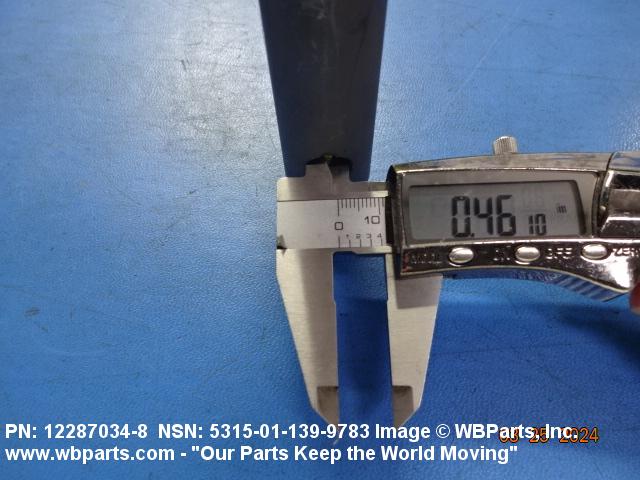

| FIRST HOLE DIAMETER | 0.470 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 19207-12287034-8 DRAWING |
