NSN 5315-01-136-7646 MS17984C711, 539568M91, 12311431
Product Details | QUICK RELEASE PIN
5315-01-136-7646 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17984C711, 539568M91, 12311431, 5315-01-136-7646, 01-136-7646, 5315011367646, 011367646
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 AUG 1982 | 01-136-7646 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-01-136-7646
Demand History | NSN 5315-01-136-7646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-136-7646 | 2022-09-270 | 6006 | DIBBS |
| 5315-01-136-7646 | 2020-02-39 | 2 | United States |
| 5315-01-136-7646 | 2020-02-36 | 2 | United States |
| 5315-01-136-7646 | 2019-07-203 | 4254 | DIBBS |
| 5315-01-136-7646 | 2019-06-171 | 4254 | DIBBS |
| 5315-01-136-7646 | 2018-04-105 | 15476 | DIBBS |
| 5315-01-136-7646 | 2018-03-81 | 15476 | DIBBS |
| 5315-01-136-7646 | 2017-08-243 | 14388 | DIBBS |
| 5315-01-136-7646 | 2017-01-24 | 6303 | DIBBS |
| 5315-01-136-7646 | 2017-01-23 | 7330 | DIBBS |
| 5315-01-136-7646 | 2016-10-296 | 7330 | DIBBS |
| 5315-01-136-7646 | 2016-08-234 | 3038 | DIBBS |
| 5315-01-136-7646 | 2016-04-106 | 2802 | DIBBS |
| 5315-01-136-7646 | 2016-04-98 | 2802 | DIBBS |
| 5315-01-136-7646 | 2016-03-90 | 2802 | DIBBS |
| 5315-01-136-7646 | 2014-06-166 | 3127 | DIBBS |
| MS17984C711 | 2012-04-101 | 28 | US |
| 5315-01-136-7646 | 2010-03-84 | 10676 | DIBBS |
| 5315-01-136-7646 | 2009-04-112 | 12509 | DIBBS |
| 5315-01-136-7646 | 2008-11-318 | 8570 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-136-7646
Related Products | NSN 5315-01-136-7646
Technical Data | NSN 5315-01-136-7646
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1045 SHANK STEEL COMP 6150 RING |
| SURFACE TREATMENT | OXIDE SHANK OXIDE RING |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 46.0 ROCKWELL C MAXIMUM SHANK 45.0 ROCKWELL C MINIMUM AND 55.0 ROCKWELL C MAXIMUM RING |

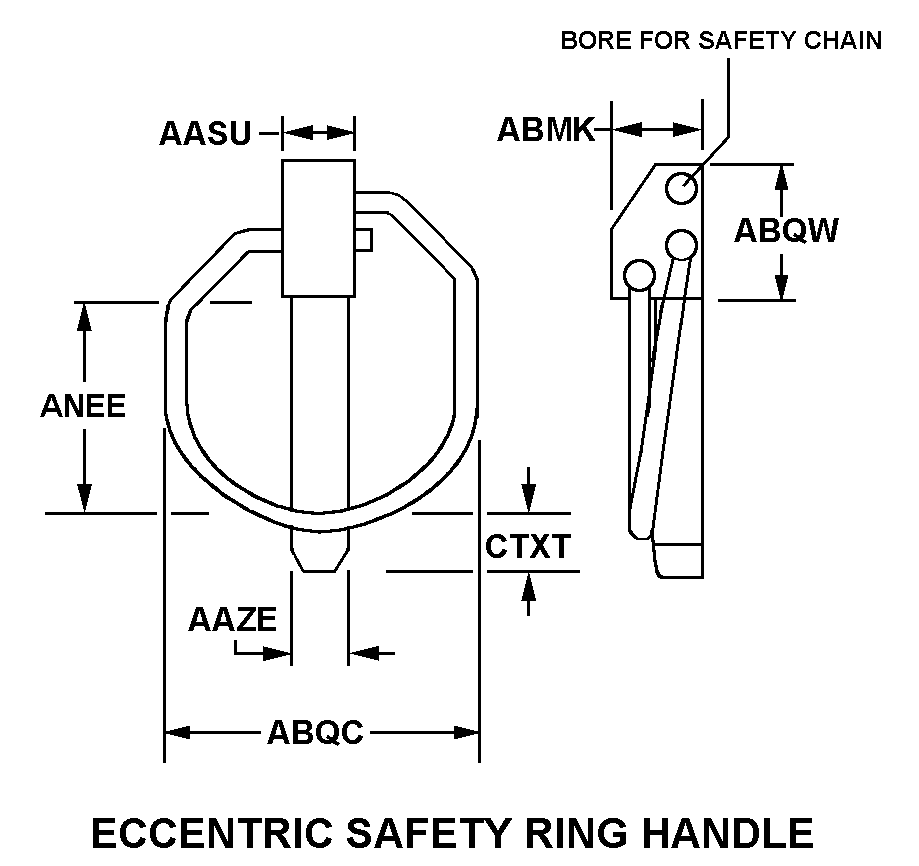

| STYLE DESIGNATOR | Q253 ECCENTRIC SAFETY RING HANDLE |
| SHANK DIAMETER | 0.350 INCHES NOMINAL |
| GRIP LENGTH | 1.770 INCHES MINIMUM |
| DETENT TO TAPERED END DISTANCE | 0.140 INCHES NOMINAL |
| ACTUATION TYPE | PULL |
| PIN ATTACHMENT TYPE | RING |
Restrictions/Controls & Freight Information | NSN 5315-01-136-7646
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-136-7646
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
