NSN 5315-01-135-4561 BACP18A5, 99836, 99986

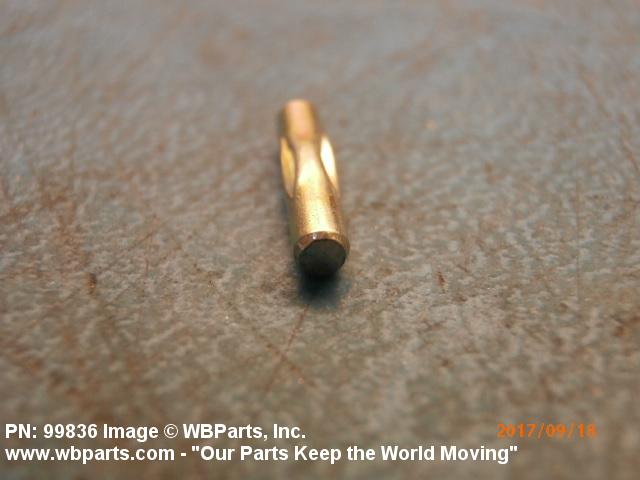

Product Details | HEADLESS GROOVED PIN
5315-01-135-4561 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: BACP18A5, 99836, 99986, 5315-01-135-4561, 01-135-4561, 5315011354561, 011354561
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUL 1982 | 01-135-4561 | 02386 ( PIN, GROOVED, HEADLESS ) |

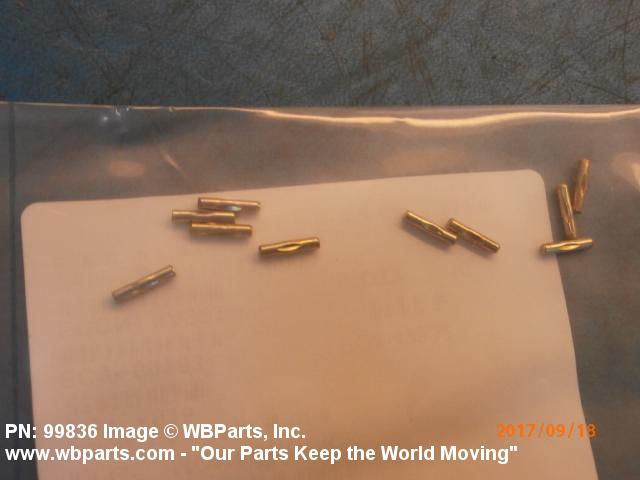

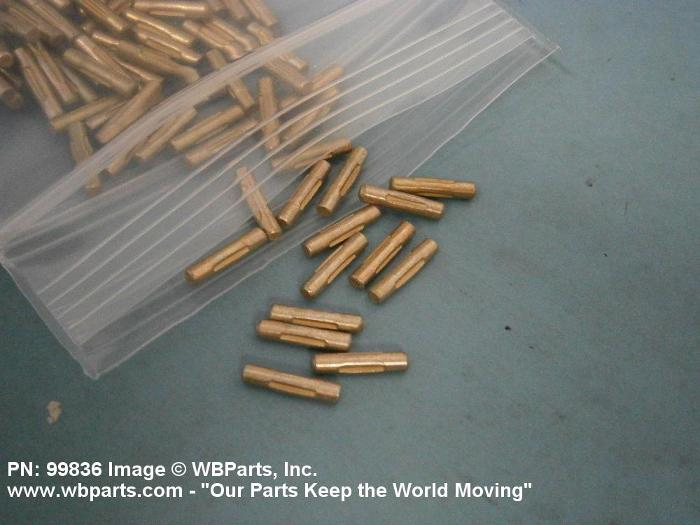

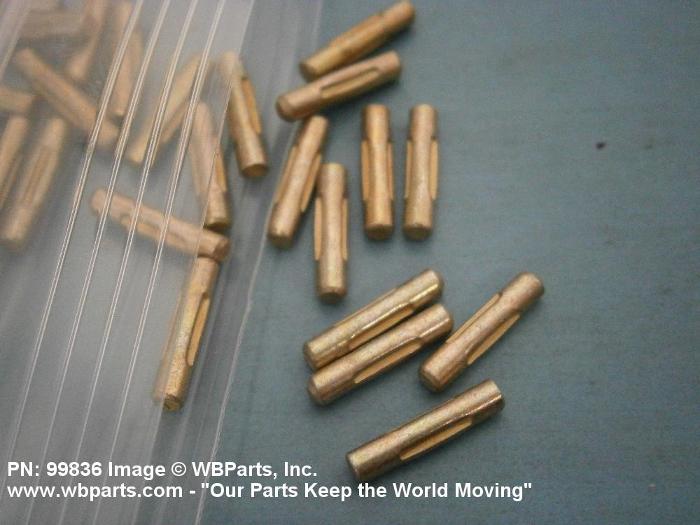

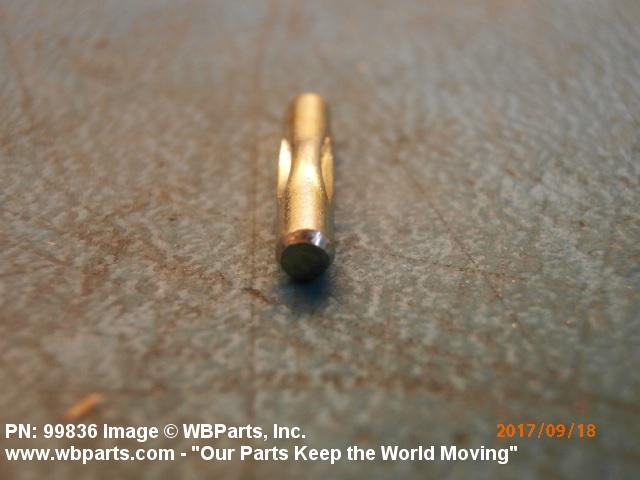

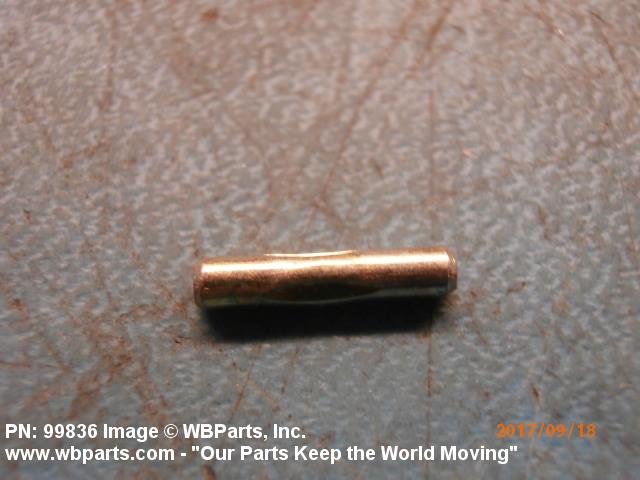

Drawings & Photos | NSN 5315-01-135-4561
Demand History | NSN 5315-01-135-4561
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-135-4561 | 2024-08-231 | 2662 | DIBBS |
| 5315-01-135-4561 | 2024-03-91 | 2461 | DIBBS |
| 99836 | 2019-01-22 | 664 | DIBBS |
| BACP18A5 | 2019-01-22 | 664 | DIBBS |
| 5315-01-135-4561 | 2018-10-301 | 664 | DIBBS |
| 5315-01-135-4561 | 2018-05-144 | 1 | DIBBS-RFPs |
| 5315-01-135-4561 | 2017-12-344 | 8233 | DIBBS |
| 99836 | 2017-09-250 | 10 | United States |
| 5315-01-135-4561 | 2016-12-336 | 1194 | DIBBS |
| 5315-01-135-4561 | 2016-08-222 | 4105 | DIBBS |
| BACP18A5 | 2013-11-308 | 240 | US |
| 99836 | 2013-09-249 | 14 | DE |
| 99836 | 2013-09-249 | 200 | DE |
| 5315-01-135-4561 | 2012-12-353 | 10 | United States |
| BACP18A5 | 2012-12-353 | 10 | United States |
| 5315-01-135-4561 | 2012-04-115 | 500 | Switzerland |
| BACP18A5 | 2011-04-103 | 135 | US |
| 5315-01-135-4561 | 2010-05-125 | 20 | IT |
| 5315-01-135-4561 | 2009-08-243 | 4 | US |
| 5315-01-135-4561 | 2009-04-93 | 11917 | DIBBS |
| 99836 | 2008-01-17 | 300 | US |
| 99836 | 2007-04-100 | 5 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-135-4561
Related Products | NSN 5315-01-135-4561
Technical Data | NSN 5315-01-135-4561
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | F106 CENTER GROOVE |

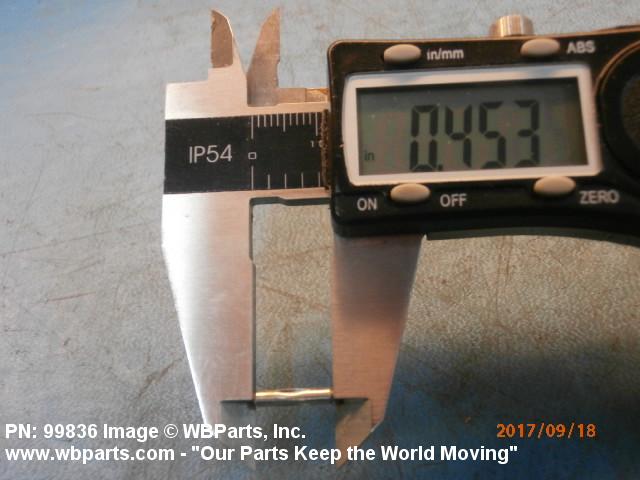

| OVERALL LENGTH | 0.448 INCHES NOMINAL |

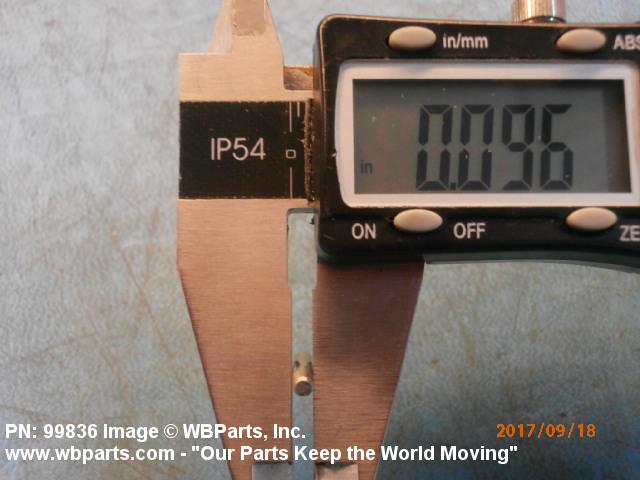

| INTERMEDIATE DIAMETER | 0.096 INCHES NOMINAL |

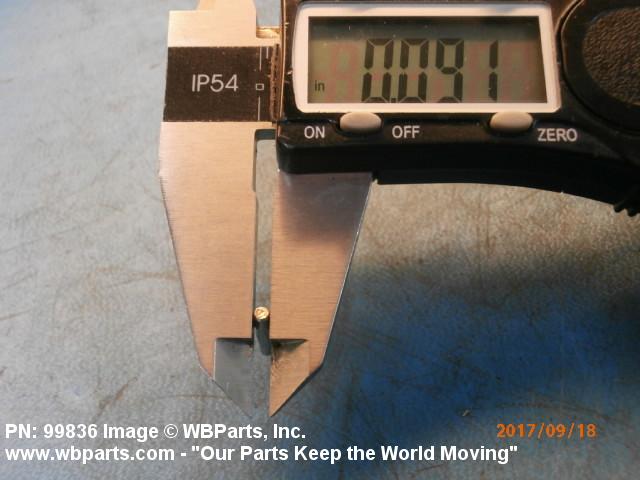

| PIN SMALL END DIAMETER | 0.091 INCHES NOMINAL |
