Product Details | HEADLESS GROOVED PIN
5315-01-117-5211 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: A-8787-1 PIECE 339, A87871PIECE339, 97134233, 971342-33, 5315-01-117-5211, 01-117-5211, 5315011175211, 011175211
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 AUG 1981 | 01-117-5211 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-01-117-5211
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-117-5211
Related Products | NSN 5315-01-117-5211
Technical Data | NSN 5315-01-117-5211
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 CL9 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

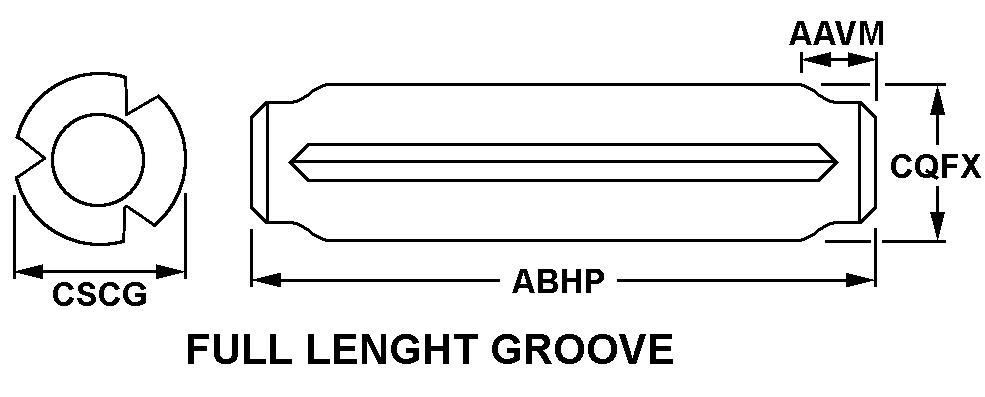

| STYLE DESIGNATOR | F120 FULL LENGTH GROOVE |
| OVERALL LENGTH | 1.979 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| PIN LARGE END DIAMETER | 0.312 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDAKCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 81576 |
| DESIGN CONTROL REFERENCE | 971342-33 |
