Product Details | HEADED STRAIGHT PIN
5315-01-115-5432 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 101369-001, 5315-01-115-5432, 01-115-5432, 5315011155432, 101369001, 011155432
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUL 1981 | 01-115-5432 | 02384 ( PIN, STRAIGHT, HEADED ) |

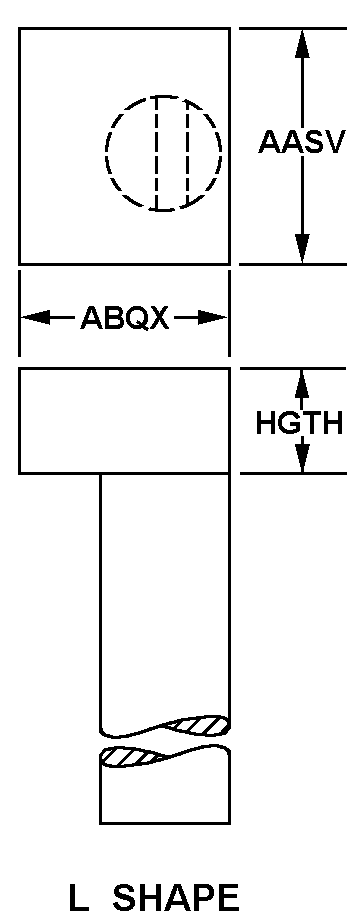

Drawings & Photos | NSN 5315-01-115-5432
Cross Reference | NSN 5315-01-115-5432
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 101369-001 | 92059 | KAMAN AEROSPACE CORPORATION DBA KAMAN PRECISION PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-115-5432
Related Products | NSN 5315-01-115-5432
Technical Data | NSN 5315-01-115-5432
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 TY2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.090 INCHES NOMINAL |
| DIAMETER | 0.1850 INCHES MINIMUM AND 0.1860 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.400 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| HEAD STYLE | 69 L SHAPE |
| HEAD LENGTH | 0.220 INCHES NOMINAL |
| HEAD WIDTH | 0.335 INCHES NOMINAL |
| HEIGHT | 0.220 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.062 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.090 INCHES NOMINAL |
| SURFACE FINISH | 16.0 MICROINCHES HEAD BEARING SURFACE |
