NSN 5315-01-115-3806 145D33044, 145D3304-4, 01-115-3806
Product Details | HEADED STRAIGHT PIN
5315-01-115-3806 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 145D33044, 145D3304-4, 5315-01-115-3806, 01-115-3806, 5315011153806, 011153806
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUL 1981 | 01-115-3806 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-115-3806
Demand History | NSN 5315-01-115-3806
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 145D3304-4 | 2020-10-17 | 24 | US |
| 5315-01-115-3806 | 2018-11-06 | 11 | DIBBS |
| 5315-01-115-3806 | 2018-09-06 | 11 | DIBBS |
Cross Reference | NSN 5315-01-115-3806
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145D3304-4 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-115-3806
Related Products | NSN 5315-01-115-3806
Technical Data | NSN 5315-01-115-3806
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | BAC5701 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 22.0 ROCKWELL C NOMINAL OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.9670 INCHES MINIMUM AND 0.9675 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |

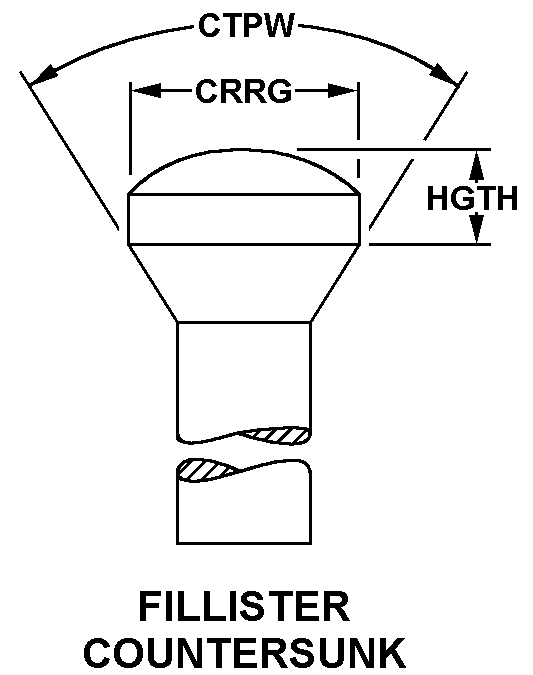

| HEAD STYLE | 14 FILLISTER COUNTERSUNK |
| PIN HEAD DIAMETER | 1.195 INCHES MINIMUM AND 1.205 INCHES MAXIMUM |
| HEIGHT | 0.152 INCHES MINIMUM AND 0.156 INCHES MAXIMUM |
| HEAD COUNTERSINK ANGLE | 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 145D3304-4 |
Restrictions/Controls & Freight Information | NSN 5315-01-115-3806
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-115-3806
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
