NSN 5315-01-115-3482 38850-00008-101, 01-115-3482, 3885000008101

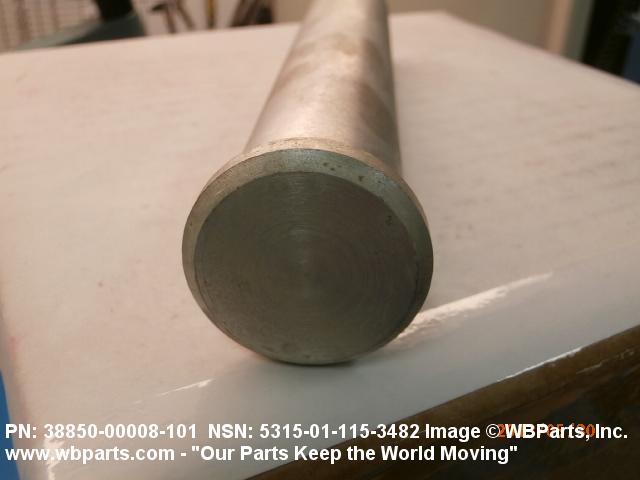

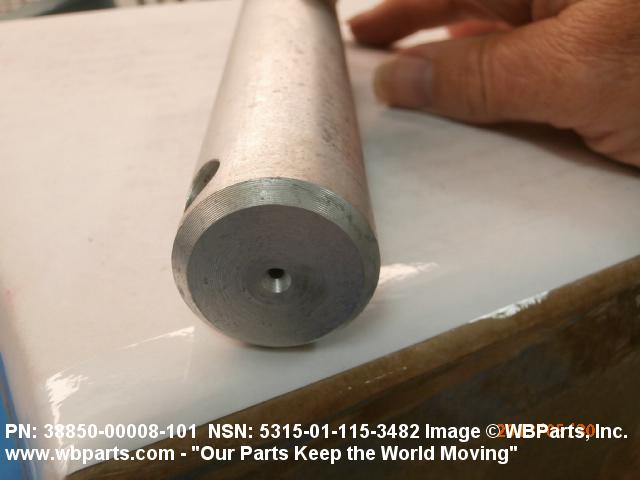

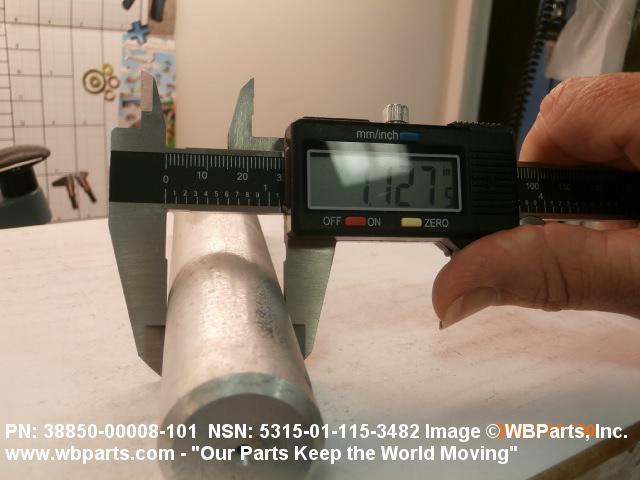

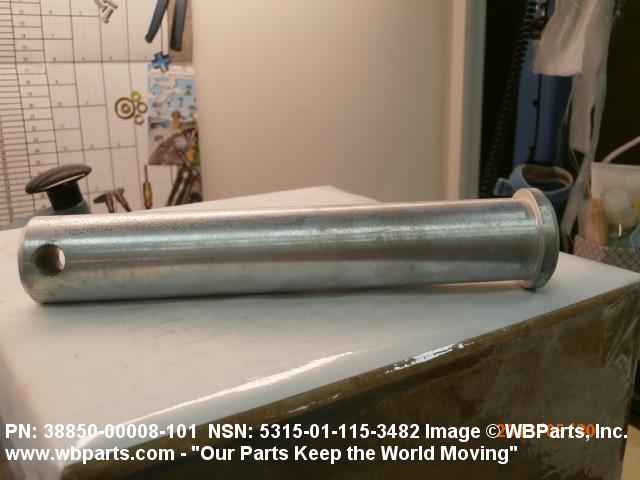

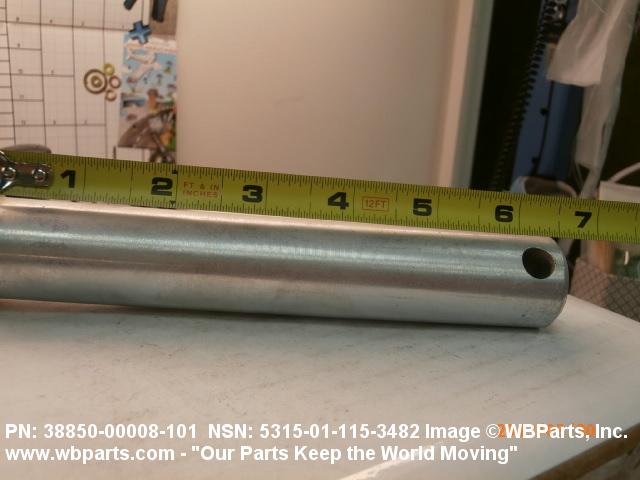

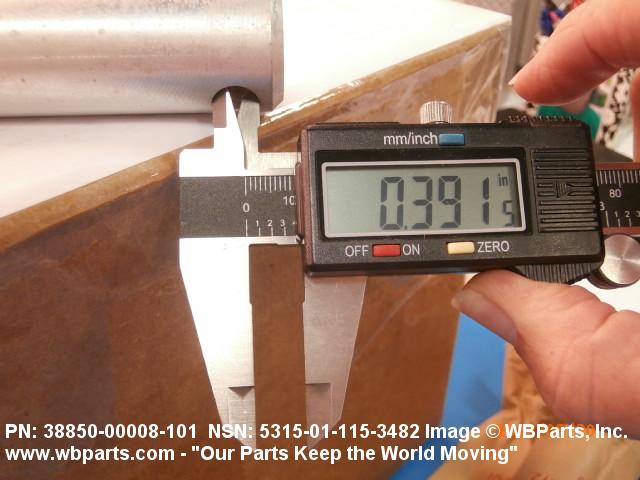

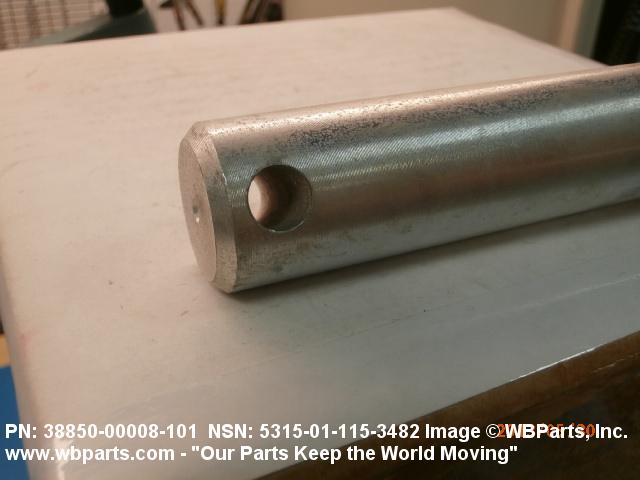

Product Details | HEADED STRAIGHT PIN
5315-01-115-3482 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
