NSN 5315-01-114-1020 12295247, 01-114-1020, 011141020
Product Details | HEADLESS GROOVED PIN
5315-01-114-1020 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 12295247, 5315-01-114-1020, 01-114-1020, 5315011141020, 011141020
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-114-1020 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-01-114-1020
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-114-1020
Technical Data | NSN 5315-01-114-1020
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A322,1330 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | LUBRICANT OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-46010 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 28.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OVERALL |

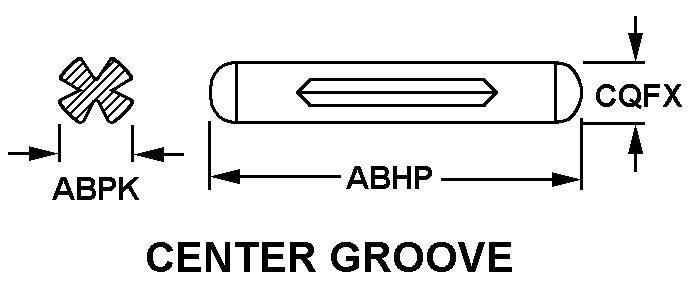

| STYLE DESIGNATOR | F111 CENTER GROOVE |
| OVERALL LENGTH | 3.188 INCHES NOMINAL |
| INTERMEDIATE DIAMETER | 0.186 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| PIN SMALL END DIAMETER | 0.436 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.060 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 1 CHAMFERED |
| SECOND END TAPER LENGTH | 0.090 INCHES NOMINAL |
| SECOND END TAPER ANGLE | 30.0 DEGREES NOMINAL |
| FIRST END LOCATION | CHAMFERED END |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.187 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.210 INCHES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12295247 |
Restrictions/Controls & Freight Information | NSN 5315-01-114-1020
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
