NSN 5315-01-113-0717 ADP128K4C15L6, C1866K4C15L6, EGP4C15LK6
Product Details | QUICK RELEASE PIN
5315-01-113-0717 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: ADP128K4C15L6, C1866K4C15L6, EGP4C15LK6, 5315-01-113-0717, 01-113-0717, 5315011130717, 011130717
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAY 1981 | 01-113-0717 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-01-113-0717
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-113-0717
Technical Data | NSN 5315-01-113-0717
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY HANDLE STEEL CORROSION RESISTING SHANK |
| SURFACE TREATMENT | ANODIZE HANDLE PASSIVATE SHANK |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 OR TY 3 MIL SPEC SINGLE TREATMENT RESPONSE HANDLE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK |

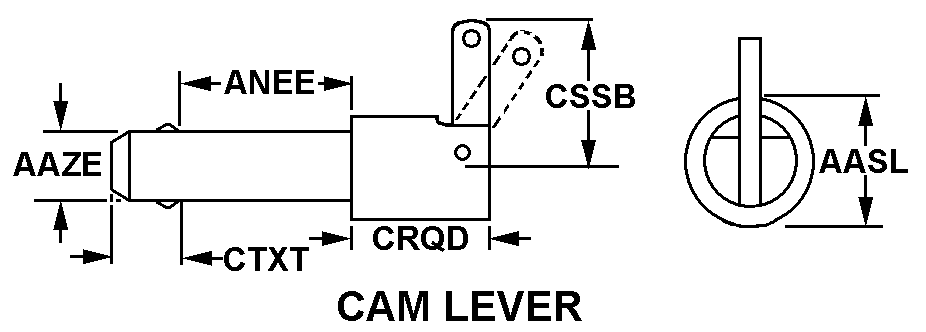

| STYLE DESIGNATOR | Q242 CAM LEVER |
| HEAD DIAMETER | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| GRIP LENGTH | 0.938 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 0.812 INCHES MAXIMUM |
| PIN CENTER TO HANDLE END DISTANCE | 2.500 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.250 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | LEVER |
| DETENT QUANTITY | ANY ACCEPTABLE |
| PIN ATTACHMENT TYPE | CABLE LANYARD W/TERMINATIONS |
| LANYARD LENGTH | 6.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 98524 |
| DESIGN CONTROL REFERENCE | EGP4C15LK6 |
