Product Details | WOODRUFF KEY
5315-01-092-2034 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.
Part Alternates: 378210, 5315-01-092-2034, 01-092-2034, 5315010922034, 010922034
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 MAR 1980 | 01-092-2034 | 02380 ( KEY, WOODRUFF ) |
Drawings & Photos | NSN 5315-01-092-2034
Cross Reference | NSN 5315-01-092-2034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 378210 | 11757 | PARKER-HANNIFIN CORPORATION DBA CHELSEA PRODUCTS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-092-2034
Related Products | NSN 5315-01-092-2034
Technical Data | NSN 5315-01-092-2034
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1035 OVERALL |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |

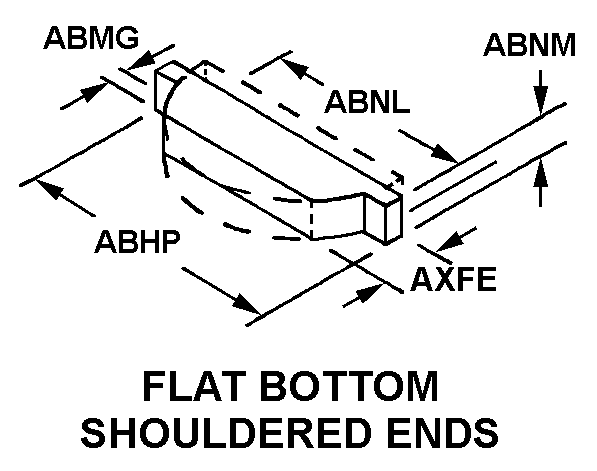

| STYLE DESIGNATOR | C60 FLAT BOTTOM SHOULDERED ENDS |
