Product Details | HEADED STRAIGHT PIN
5315-01-083-7893 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 9327044, 5315-01-083-7893, 01-083-7893, 5315010837893, 010837893
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 SEP 1979 | 01-083-7893 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-083-7893
Demand History | NSN 5315-01-083-7893
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-083-7893 | 2017-06-157 | 12 | US |
| 5315-01-083-7893 | 2017-06-156 | 100 | US |
| 5315-01-083-7893 | 2009-05-138 | 664 | DIBBS |
Cross Reference | NSN 5315-01-083-7893
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9327044 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-083-7893
Related Products | NSN 5315-01-083-7893
Technical Data | NSN 5315-01-083-7893
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.020 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
| DIAMETER | 0.1535 INCHES MINIMUM AND 0.1540 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.985 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 45.0 DEGREES NOMINAL |

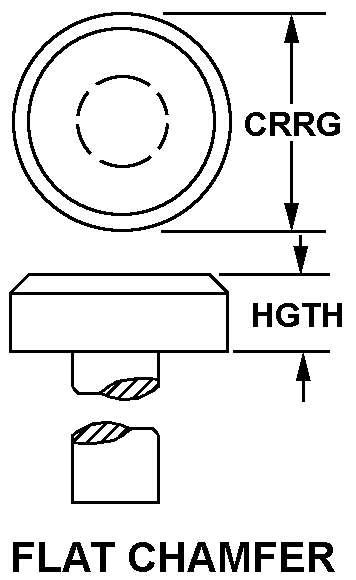

| HEAD STYLE | 17 FLAT CHAMFER |
| PIN HEAD DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| HEIGHT | 0.025 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 9327044 |
