NSN 5315-01-049-0157 16F01037, 16F0103-7, 01-049-0157
Product Details | HEADED STRAIGHT PIN
5315-01-049-0157 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 16F01037, 16F0103-7, 5315-01-049-0157, 01-049-0157, 5315010490157, 010490157
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 OCT 1977 | 01-049-0157 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-049-0157
Cross Reference | NSN 5315-01-049-0157
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16F0103-7 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-049-0157
Technical Data | NSN 5315-01-049-0157
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 COMP 302 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.040 INCHES NOMINAL |
| DIAMETER | 0.373 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 2.130 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 45.0 DEGREES NOMINAL |

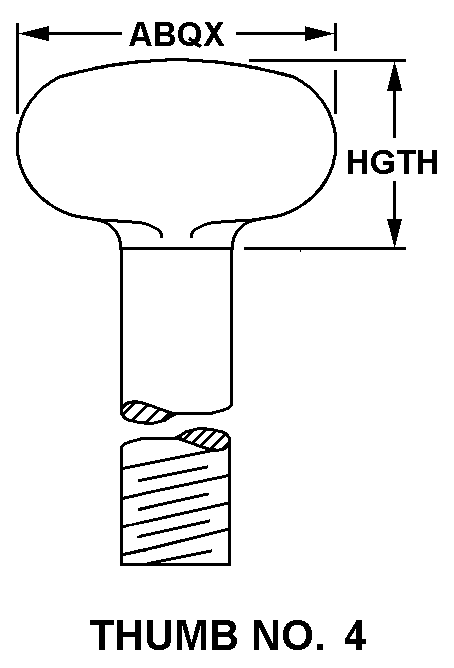

| HEAD STYLE | 48 THUMB NO. 4 |
| HEAD WIDTH | 1.625 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.625 INCHES NOMINAL |
| HEIGHT | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | HEAD IS 0.125 IN. THICK WITH TWO 0.200 IN. HOLES CENTERED 0.875 IN. APART,ONE WING CHAMFERED 25 DEG 0.25 IN.TWO PLACES AND FLATTED 0.375 IN. FROM CENTER |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16F0103-7 |
Restrictions/Controls & Freight Information | NSN 5315-01-049-0157
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
