Product Details | HEADED STRAIGHT PIN
5315-01-048-6223 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 12007832, 5315-01-048-6223, 01-048-6223, 5315010486223, 010486223
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 SEP 1977 | 01-048-6223 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-048-6223
Demand History | NSN 5315-01-048-6223
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-048-6223 | 2017-08-215 | 133 | DIBBS |
| 5315-01-048-6223 | 2017-05-150 | 121 | DIBBS |
| 5315-01-048-6223 | 2013-05-121 | 38 | DIBBS |
| 5315-01-048-6223 | 2013-04-116 | 48 | DIBBS |
Cross Reference | NSN 5315-01-048-6223
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12007832 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-048-6223
Related Products | NSN 5315-01-048-6223
Technical Data | NSN 5315-01-048-6223
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND PHOSPHATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 3 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.120 INCHES NOMINAL |
| DIAMETER | 0.498 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.930 INCHES MINIMUM AND 0.970 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 30.0 DEGREES NOMINAL |

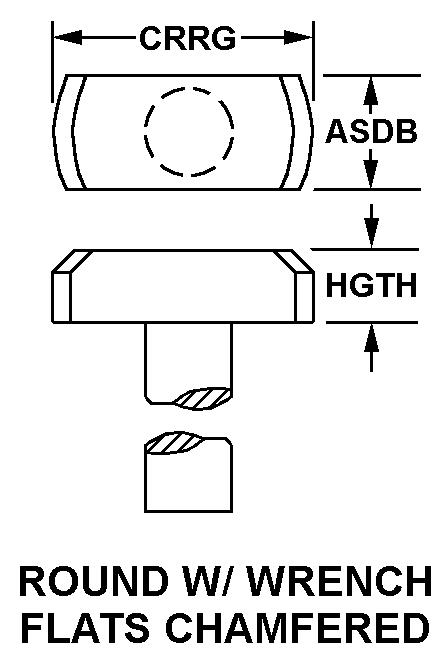

| HEAD STYLE | 42 ROUND W/WRENCH FLATS CHAMFERED |
| WIDTH ACROSS FLATS | 0.747 INCHES MINIMUM AND 0.749 INCHES MAXIMUM |
| PIN HEAD DIAMETER | 1.340 INCHES NOMINAL |
| HEIGHT | 0.260 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 12007832 |
