NSN 5315-01-044-7627 PWA524962, PWA52496-2, 01-044-7627
Product Details | HEADLESS SHOULDER PIN
5315-01-044-7627 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: PWA524962, PWA52496-2, 5315-01-044-7627, 01-044-7627, 5315010447627, 010447627
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 1977 | 01-044-7627 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-044-7627
Cross Reference | NSN 5315-01-044-7627
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA52496-2 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-044-7627
Related Products | NSN 5315-01-044-7627
Technical Data | NSN 5315-01-044-7627
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4150 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 4150 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2485 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |

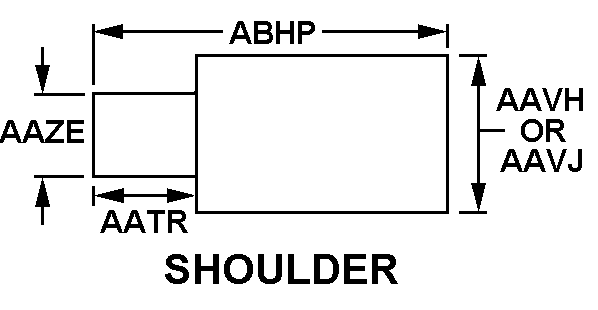

| STYLE DESIGNATOR | J163 SHOULDER |
| SHANK LENGTH | 0.500 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |

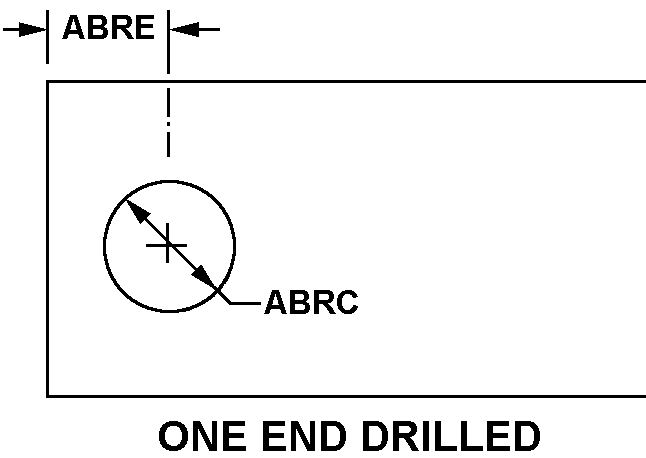

| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.125 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.156 INCHES NOMINAL |
| SPECIAL FEATURES | MEDIUM KNURL ON SHOULDER EXCEPT FOR 0.062 IN. NEAR SHANK |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA52496-2 |
