NSN 5315-01-044-8362 11677139, 01-044-8362, 010448362
Product Details | HEADLESS STRAIGHT PIN
5315-01-044-8362 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 11677139, 5315-01-044-8362, 01-044-8362, 5315010448362, 010448362
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUL 1977 | 01-044-8362 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-01-044-8362
Demand History | NSN 5315-01-044-8362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-044-8362 | 2017-01-23 | 1 | DIBBS |
| 5315-01-044-8362 | 2017-01-23 | 19 | DIBBS |
| 5315-01-044-8362 | 2014-05-125 | 19 | DIBBS |
| 5315-01-044-8362 | 2014-04-113 | 19 | DIBBS |
| 5315-01-044-8362 | 2012-04-117 | 3 | DIBBS |
| 5315-01-044-8362 | 2012-04-117 | 15 | DIBBS |
Cross Reference | NSN 5315-01-044-8362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11677139 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-044-8362
Technical Data | NSN 5315-01-044-8362
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/8,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.060 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |

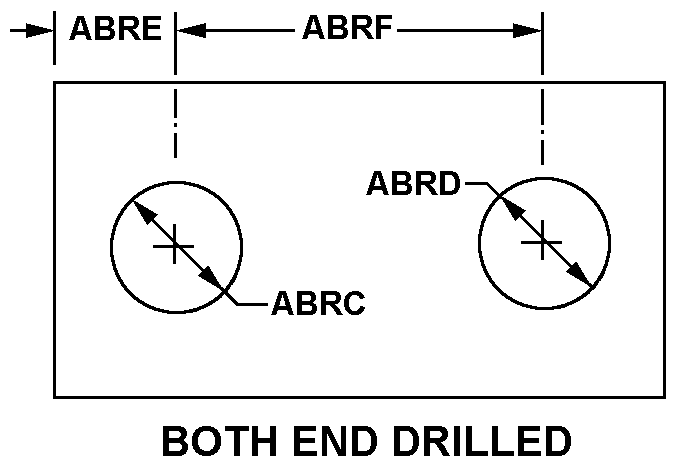

| HOLE ARRANGEMENT STYLE | 2 BOTH ENDS DRILLED |
| FIRST HOLE DIAMETER | 0.078 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.078 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.154 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 1.156 INCHES NOMINAL |
| PIN OVERALL LENGTH | 1.440 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.2500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-01-044-8362
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
