Product Details | HEADLESS SHOULDER PIN

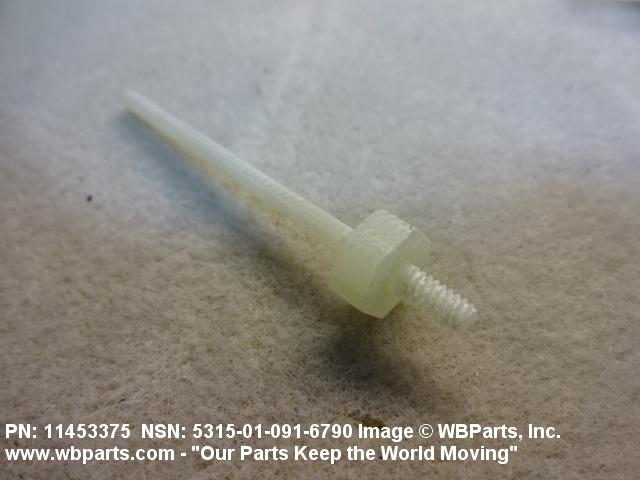

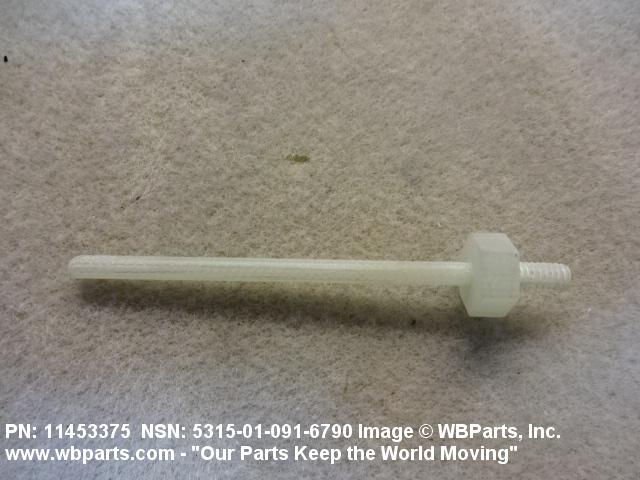

5315-01-091-6790 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.

Part Alternates: 11453375, 5315-01-091-6790, 01-091-6790, 5315010916790, 010916790

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	11 MAR 1980	01-091-6790	16749 ( PIN, SHOULDER, HEADLESS )

Drawings & Photos | NSN 5315-01-091-6790

Part Number	Request Date	QTY	Origin
5315-01-091-6790	2024-06-169	3	Saudi Arabia
5315-01-091-6790	2021-05-129	84	DIBBS
5315-01-091-6790	2020-10-297	141	DIBBS
5315-01-091-6790	2020-10-281	141	DIBBS
5315-01-091-6790	2020-06-174	134	DIBBS
5315-01-091-6790	2020-06-166	134	DIBBS
11453375	2017-10-299	4	us
5315-01-091-6790	2017-02-45	3	United States
5315-01-091-6790	2009-11-307	263	DIBBS
5315-01-091-6790	2009-05-150	234	DIBBS
5315-01-091-6790	2009-03-85	20	DIBBS

Cross Reference | NSN 5315-01-091-6790

Part Number	Cage Code	Manufacturer
11453375	18876	U S ARMY AVIATION AND MISSILE COMMAND
11453375	8A932	HUMBOLDT MACHINE SHOP, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-091-6790

Compare

Related Products | NSN 5315-01-091-6790

5315-01-091-6791, 5315-01-091-7030, 5315-01-091-7031, 5315-01-091-7032, 5315-01-091-7039

Technical Data | NSN 5315-01-091-6790

Characteristic	Specifications
MATERIAL	PLASTIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	L-P-509,GRADE G-10 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	J161 SHOULDER

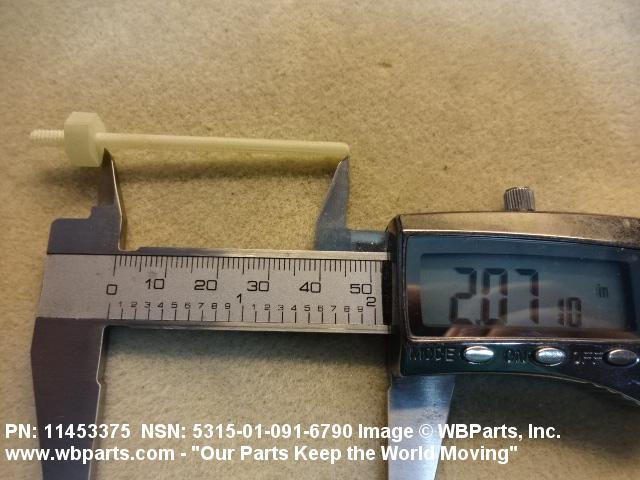

SHANK LENGTH	2.0700 INCHES NOMINAL

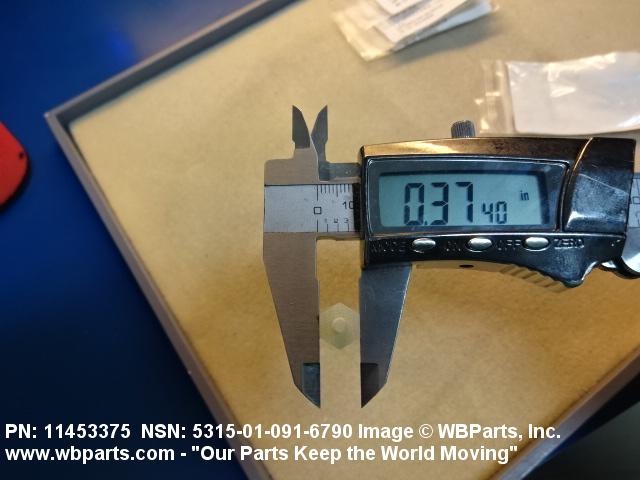

SHOULDER DIAMETER	0.3800 INCHES NOMINAL
SHANK DIAMETER	0.1150 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM
OVERALL LENGTH	2.5700 INCHES NOMINAL
SECOND SHANK DIAMETER	0.1380 INCHES NOMINAL
SECOND SHANK LENGTH	0.3200 INCHES NOMINAL
FIRST END STYLE	3 OVAL
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END STYLE	1 CHAMFERED
SECOND END TAPER LENGTH	0.0200 INCHES NOMINAL
SECOND END TAPER ANGLE	45.0 DEGREES NOMINAL
FIRST END LOCATION	OVAL END
MANUFACTURERS CODE	18876
DESIGN CONTROL REFERENCE	11453375
