NSN 5315-01-033-8059 CA41706, CA4170-6, 3958946
Product Details | ECCENTRIC PIN
5315-01-033-8059 A headed, cylindrically-shaped metal item having a shank and/or shoulder offset from the geometric center of the head. If shouldered, a portion of the shank and/or shoulder may be concentric with the head.
Part Alternates: CA41706, CA4170-6, 3958946, 395894-6, 5315-01-033-8059, 01-033-8059, 5315010338059, 010338059
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1977 | 01-033-8059 | 21967 ( PIN, ECCENTRIC ) |

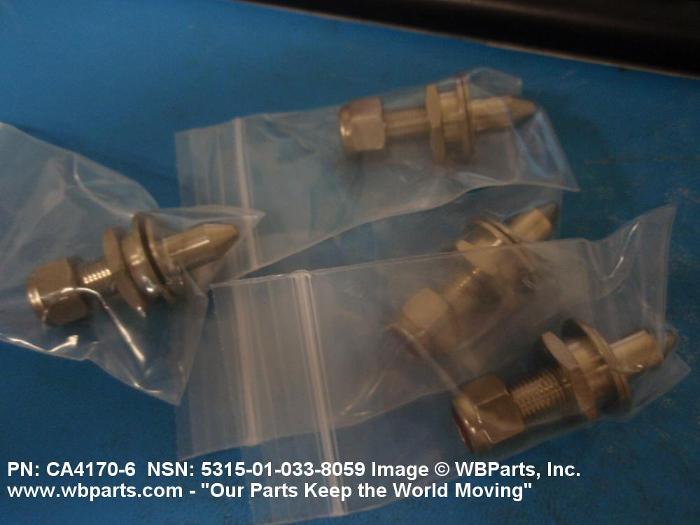

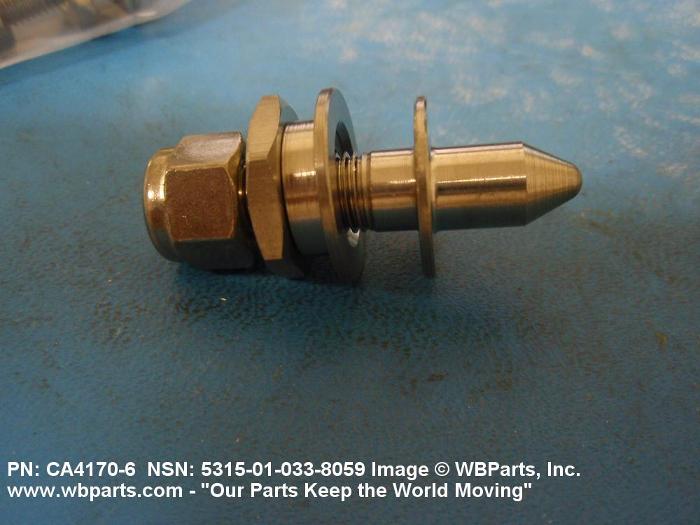

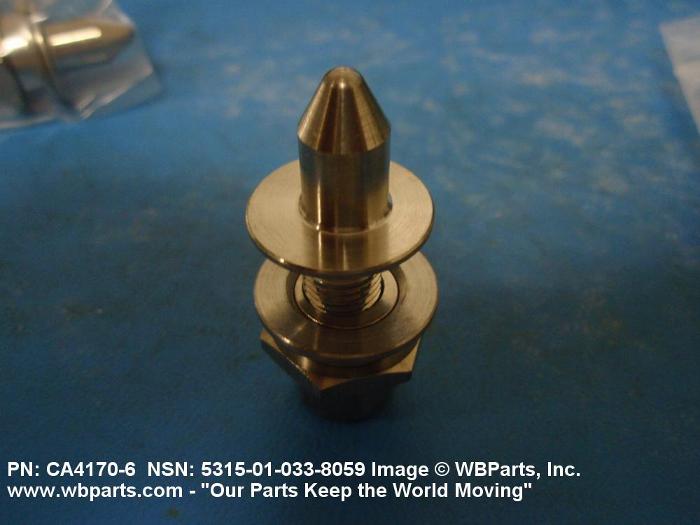

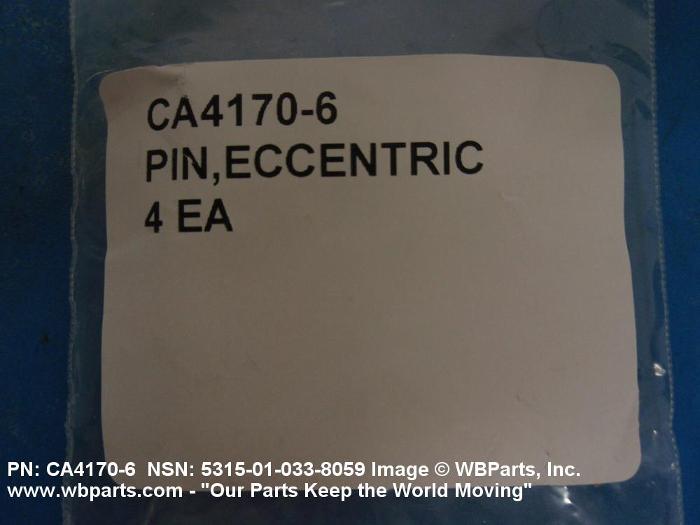

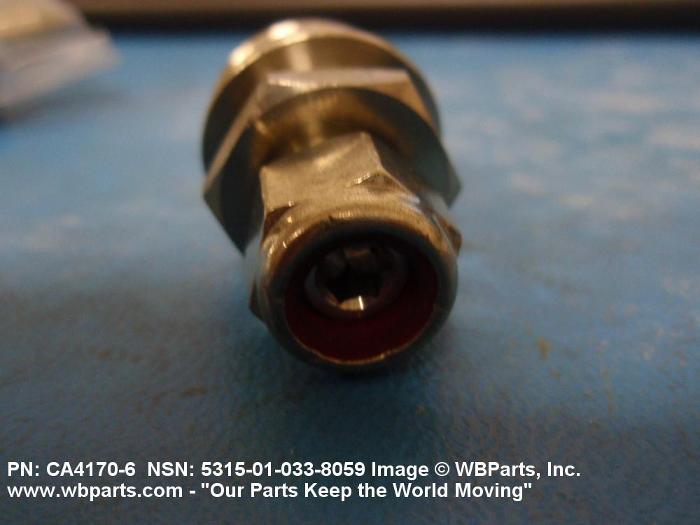

Drawings & Photos | NSN 5315-01-033-8059
Demand History | NSN 5315-01-033-8059
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-033-8059 | 2022-02-56 | 4 | us |
| 5315-01-033-8059 | 2017-10-302 | 7 | DIBBS |
| 5315-01-033-8059 | 2015-06-169 | 8 | DIBBS |
| 5315-01-033-8059 | 2015-06-158 | 8 | DIBBS |
| 5315-01-033-8059 | 2014-07-212 | 15 | DIBBS |
| 5315-01-033-8059 | 2014-07-204 | 3 | DIBBS |
| 5315-01-033-8059 | 2011-10-280 | 31 | DIBBS |
| 5315-01-033-8059 | 2011-04-100 | 2 | DIBBS |
| 5315-01-033-8059 | 2011-03-76 | 15 | DIBBS |
| 5315-01-033-8059 | 2011-03-68 | 31 | DIBBS |
| 5315-01-033-8059 | 2011-03-60 | 31 | DIBBS |
| CA41706 | 2011-02-34 | 4 | United States |
| CA41706 | 2011-01-26 | 4 | us |
| 5315-01-033-8059 | 2010-12-350 | 8 | DIBBS |
| 5315-01-033-8059 | 2010-12-340 | 8 | DIBBS |
| 5315-01-033-8059 | 2010-06-179 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-033-8059
Related Products | NSN 5315-01-033-8059
Technical Data | NSN 5315-01-033-8059
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SHEAR STRENGTH | 3870 SINGLE POUND |
| STYLE DESIGNATOR | D74 ECCENTRIC |
| OVERALL LENGTH | 1.766 INCHES NOMINAL |
| OFFSET DISTANCE BETWEEN GEOMETRIC CENTER OF HEAD AND CENTERLINE OF SHANK/SHOULDER | 0.062 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.875 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.245 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| THIRD STEP LENGTH | 0.641 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 5 SOCKET |
| WIDTH BETWEEN FLATS | 0.187 INCHES NOMINAL |
| SPECIAL FEATURES | ONE END THREADED 0.375-24UNF-3A; ECCENTRIC HEX BUSHING AND ROUND CONCENTRIC BUSHING AND LOCKNUT INCLUDED |
| MANUFACTURERS CODE | 29372 |
| DESIGN CONTROL REFERENCE | CA4170-6 |
Restrictions/Controls & Freight Information | NSN 5315-01-033-8059
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-033-8059
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
