NSN 5315-01-033-8204 549AS1211, 549AS121-1, 01-033-8204
Product Details | HEADLESS STRAIGHT PIN
5315-01-033-8204 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 549AS1211, 549AS121-1, 5315-01-033-8204, 01-033-8204, 5315010338204, 010338204
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1977 | 01-033-8204 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

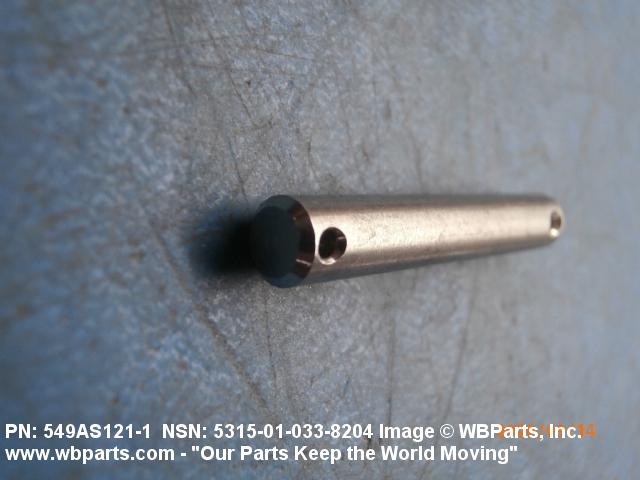

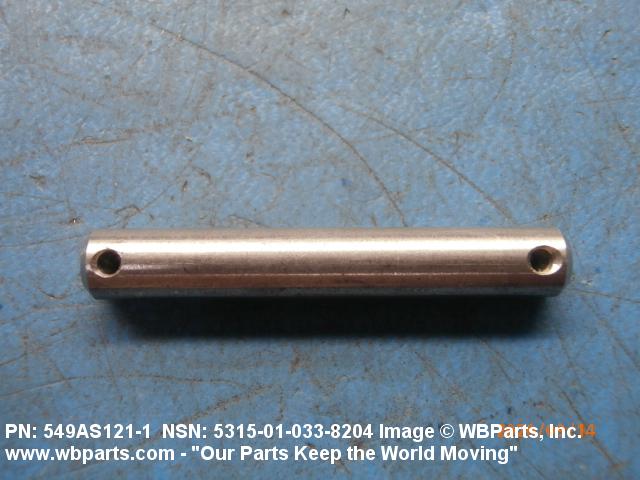

Drawings & Photos | NSN 5315-01-033-8204
Demand History | NSN 5315-01-033-8204
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 549AS121-1 | 2024-05-126 | 118 | DIBBS |
| 549AS121-1 | 2024-03-63 | 150 | DIBBS |
| 549AS121-1 | 2023-10-296 | 150 | DIBBS |
| 5315-01-033-8204 | 2020-09-247 | 60 | Canada |
| 5315-01-033-8204 | 2019-09-253 | 24 | United States |
| 5315-01-033-8204 | 2018-03-80 | 140 | DIBBS |
| 5315-01-033-8204 | 2017-10-303 | 140 | DIBBS |
| 5315-01-033-8204 | 2017-06-169 | 100 | DIBBS |
| 5315-01-033-8204 | 2017-04-108 | 39 | DIBBS |
| 5315-01-033-8204 | 2017-02-52 | 50 | DIBBS |
| 5315-01-033-8204 | 2016-05-129 | 38 | DIBBS |
| 5315-01-033-8204 | 2016-02-49 | 41 | DIBBS |
| 5315-01-033-8204 | 2012-07-212 | 102 | DIBBS |
| 5315-01-033-8204 | 2011-08-236 | 102 | DIBBS |
| 5315-01-033-8204 | 2011-04-119 | 100 | DIBBS |
| 5315-01-033-8204 | 2010-05-132 | 72 | DIBBS |
| 5315-01-033-8204 | 2010-03-89 | 69 | DIBBS |
| 5315-01-033-8204 | 2009-12-342 | 94 | DIBBS |
Cross Reference | NSN 5315-01-033-8204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 549AS121-1 | 05DN8 | KLUNE INDUSTRIES, INC. DIV KLUNE INDUSTRIES |
| 549AS121-1 | 072E5 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 549AS121-1 | 09245 | SOLO ENTERPRISE CORP. DBA SOLO GOLF |
| 549AS121-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 549AS121-1 | 32067 | MARVIN ENGINEERING CO., INC. DBA MARVIN GROUP, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-033-8204
Related Products | NSN 5315-01-033-8204
Technical Data | NSN 5315-01-033-8204
| Characteristic | Specifications |
|---|---|
| MATERIAL | COBALT COMP MP-35-N OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5758 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.031 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| HOLE ARRANGEMENT STYLE | 2 BOTH ENDS DRILLED |

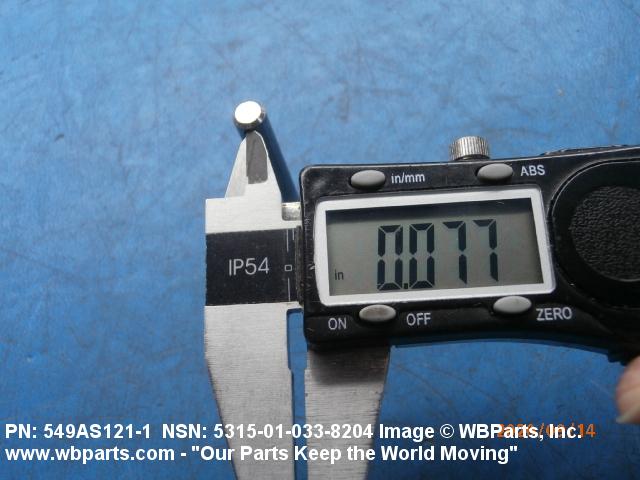

| FIRST HOLE DIAMETER | 0.077 INCHES MINIMUM AND 0.082 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.077 INCHES MINIMUM AND 0.082 INCHES MAXIMUM |

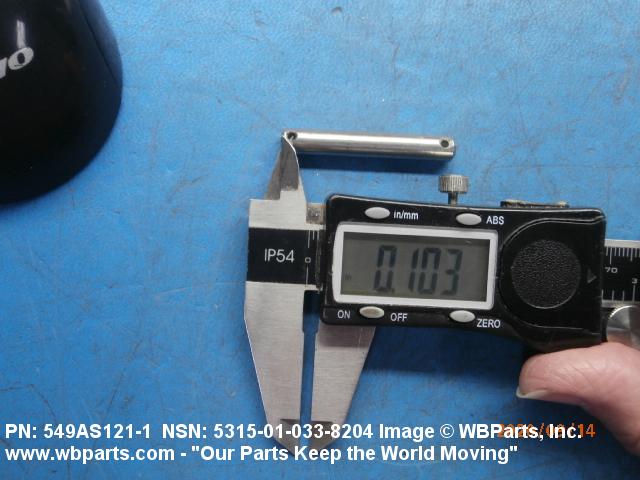

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.103 INCHES NOMINAL |

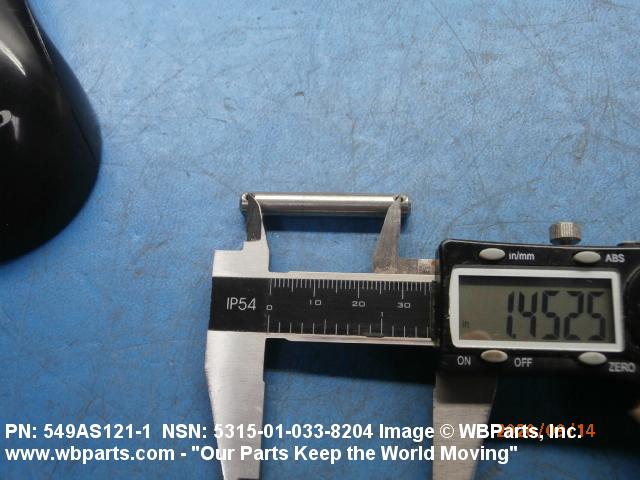

| CENTER TO CENTER DISTANCE BETWEEN HOLES | 1.450 INCHES MINIMUM AND 1.460 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER |

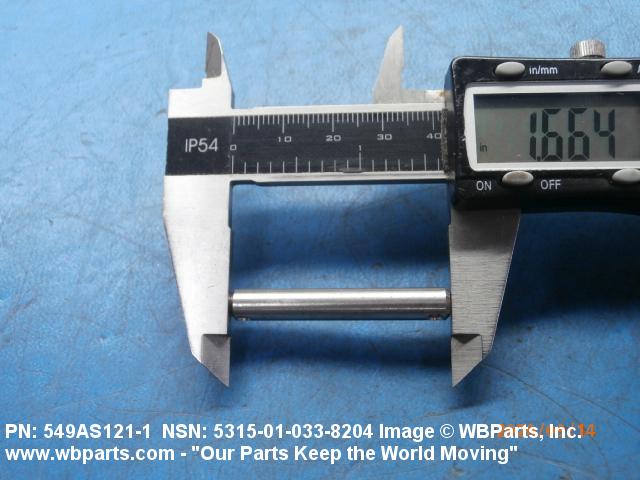

| PIN OVERALL LENGTH | 1.656 INCHES NOMINAL |

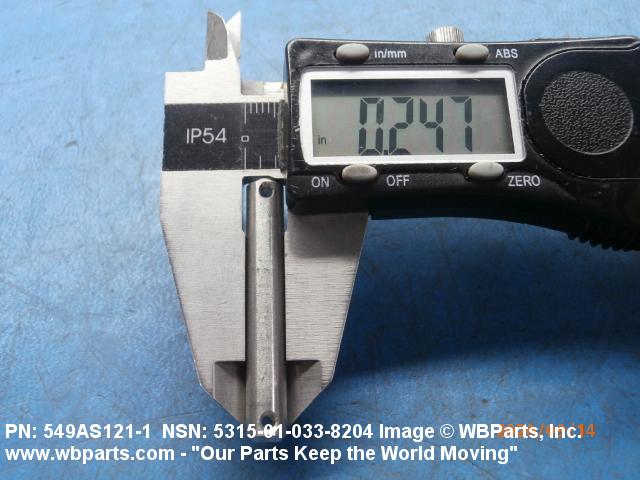

| PIN OVERALL DIAMETER | 0.2460 INCHES MINIMUM AND 0.2480 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-01-033-8204
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-033-8204
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
