NSN 5315-01-091-2845 AAP100H404, AAP100H40-4, AAP11334

Product Details | ECCENTRIC PIN

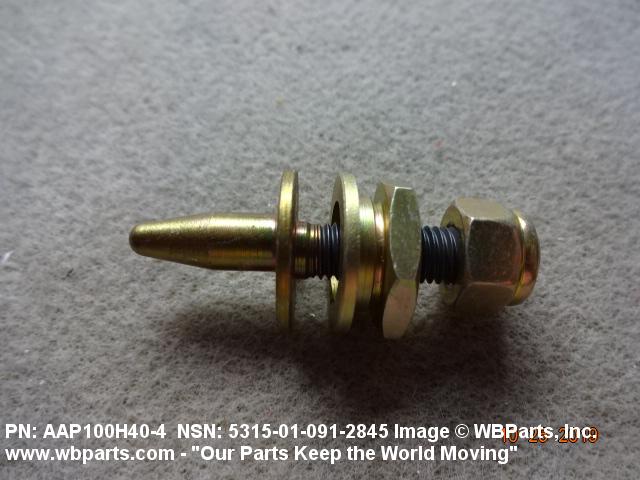

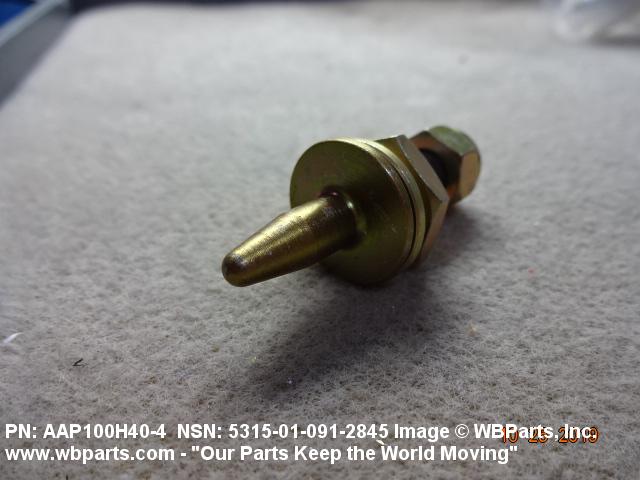

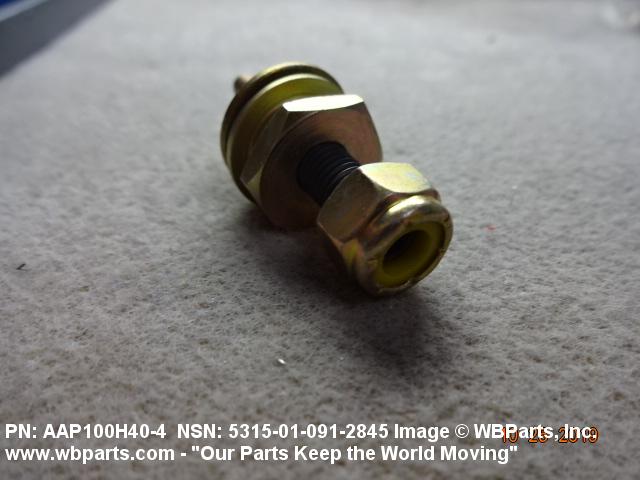

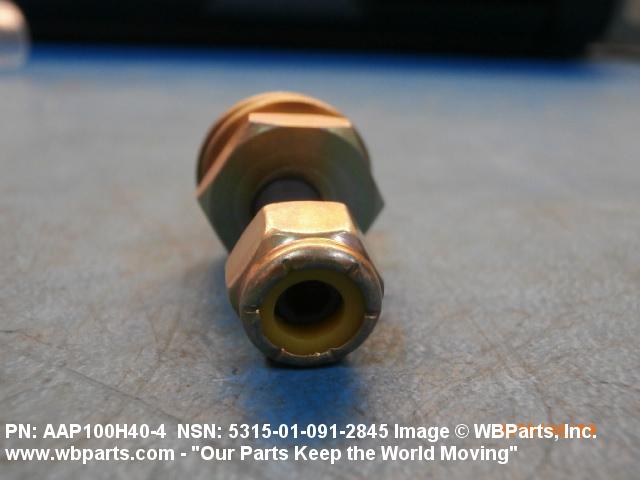

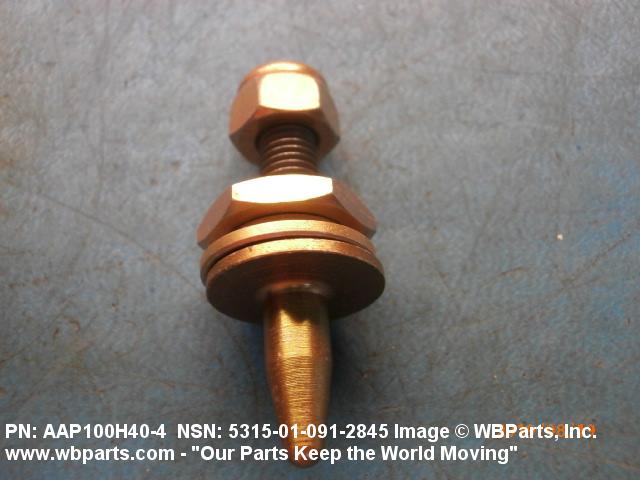

5315-01-091-2845 A headed, cylindrically-shaped metal item having a shank and/or shoulder offset from the geometric center of the head. If shouldered, a portion of the shank and/or shoulder may be concentric with the head.

Part Alternates: AAP100H404, AAP100H40-4, AAP11334, AAP113-3-4, CA40404, CA4040-4, CA40454, CA4045-4, 4630602, 463060-2, 71829819, 718298-19, 5315-01-091-2845, 01-091-2845, 5315010912845, 010912845

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 MAR 1980	01-091-2845	21967 ( PIN, ECCENTRIC )

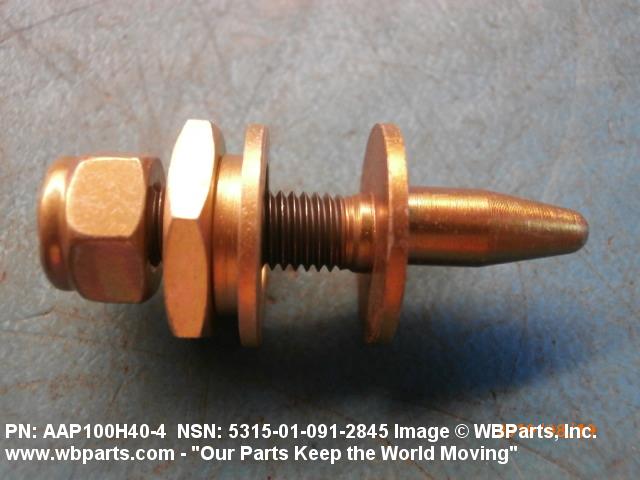

Drawings & Photos | NSN 5315-01-091-2845

Part Number	Request Date	QTY	Origin
AAP100H40-4	2023-01-16	39	DIBBS
AAP113-3-4	2023-01-16	39	DIBBS
CA4040-4	2023-01-16	39	DIBBS
CA4045-4	2023-01-16	39	DIBBS
AAP100H40-4	2022-09-261	33	DIBBS
AAP113-3-4	2022-09-261	33	DIBBS
CA4040-4	2022-09-261	33	DIBBS
CA4045-4	2022-09-261	33	DIBBS
AAP100H40-4	2022-05-135	29	DIBBS
AAP113-3-4	2022-05-135	29	DIBBS
CA4040-4	2022-05-135	29	DIBBS
CA4045-4	2022-05-135	29	DIBBS
AAP100H40-4	2021-07-194	107	DIBBS
AAP113-3-4	2021-07-194	107	DIBBS
CA4040-4	2021-07-194	107	DIBBS
CA4045-4	2021-07-194	107	DIBBS
AAP100H40-4	2020-12-343	92	DIBBS
AAP113-3-4	2020-12-343	92	DIBBS
CA4040-4	2020-12-343	92	DIBBS
CA4045-4	2020-12-343	92	DIBBS
AAP100H40-4	2020-05-128	99	DIBBS
AAP113-3-4	2020-05-128	99	DIBBS
CA4040-4	2020-05-128	99	DIBBS
CA4045-4	2020-05-128	99	DIBBS
AAP100H404	2019-10-283	2	United States
AAP100H404	2019-08-217	2	United States
CA40454	2019-08-217	2	United States
AAP100H40-4	2019-07-212	84	DIBBS
AAP113-3-4	2019-07-212	84	DIBBS
CA4040-4	2019-07-212	84	DIBBS
CA4045-4	2019-07-212	84	DIBBS
AAP100H40-4	2019-01-06	84	DIBBS
AAP113-3-4	2019-01-06	84	DIBBS
CA4040-4	2019-01-06	84	DIBBS
CA4045-4	2019-01-06	84	DIBBS
5315-01-091-2845	2017-05-124	73	DIBBS
5315-01-091-2845	2016-11-333	68	DIBBS
5315-01-091-2845	2016-09-272	108	DIBBS
5315-01-091-2845	2016-06-159	68	DIBBS
5315-01-091-2845	2014-04-111	69	DIBBS
5315-01-091-2845	2014-04-98	69	DIBBS
5315-01-091-2845	2013-05-129	115	DIBBS
5315-01-091-2845	2013-02-50	3	DIBBS
CA40404	2011-06-173	60	US
5315-01-091-2845	2011-06-158	4	US
5315-01-091-2845	2010-04-99	149	DIBBS
CA40404	2009-08-236	2	United States
CA40404	2009-02-41	2	United States
CA40404	2009-01-07	2	United States
5315-01-091-2845	2008-02-38	300	US
CA40404	2007-12-345	12	US
CA40404	2006-07-203	25	United States

Cross Reference | NSN 5315-01-091-2845

Part Number	Cage Code	Manufacturer
463060-2	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
463060-2	49956	RAYTHEON COMPANY DBA RAYTHEON
718298-19	05869	RAYTHEON COMPANY DBA RAYTHEON
AAP100H40-4	84256	AVIBANK MFG., INC.
AAP113-3-4	84256	AVIBANK MFG., INC.
CA4040-4	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CA4040-4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
CA4045-4	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-091-2845

Compare

Related Products | NSN 5315-01-091-2845

5315-01-091-2854, 5315-01-091-3214, 5315-01-091-3215, 5315-01-091-3320, 5315-01-091-4046

Technical Data | NSN 5315-01-091-2845

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

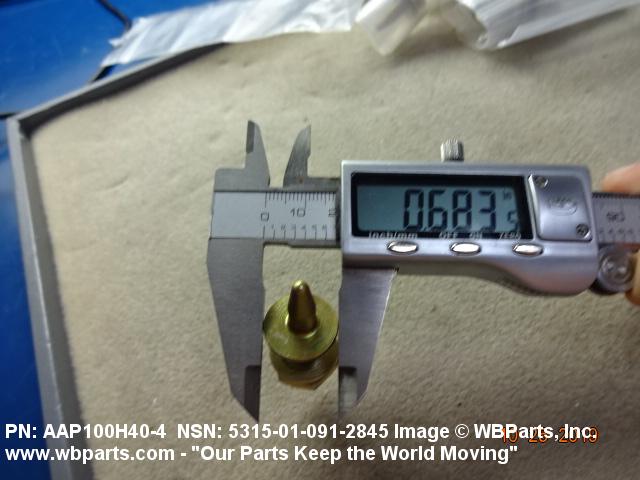

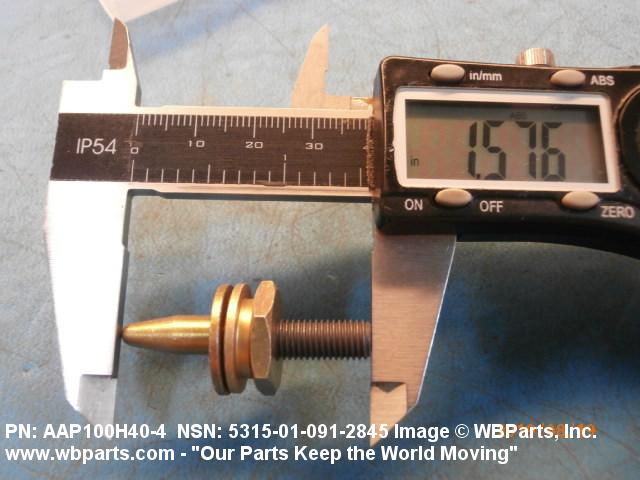

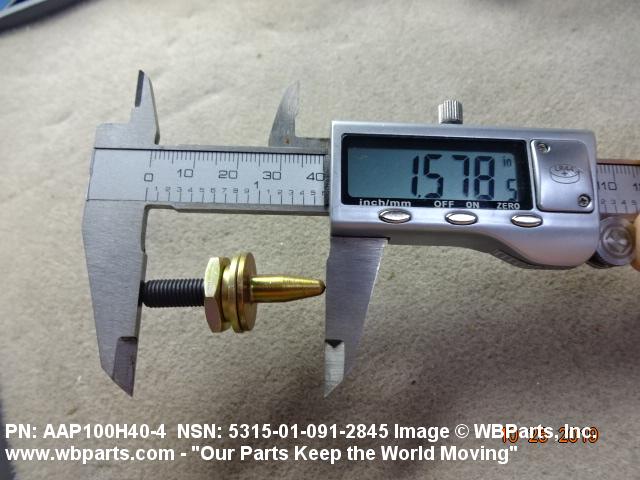

OVERALL LENGTH	1.562 INCHES NOMINAL

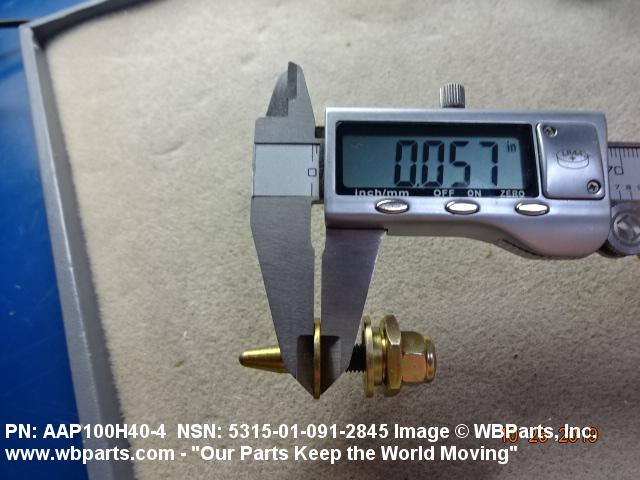

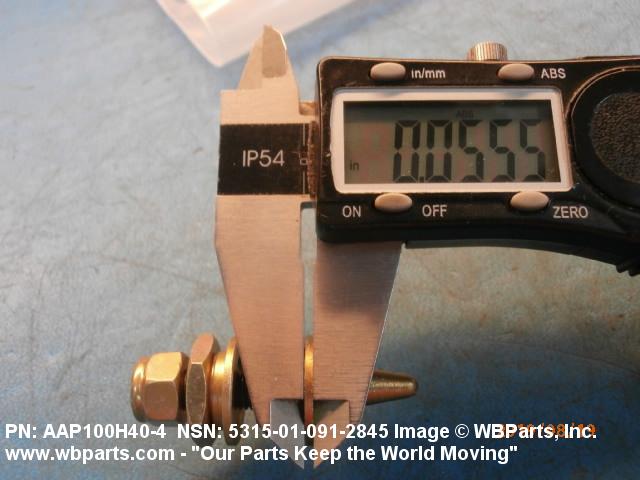

OFFSET DISTANCE BETWEEN GEOMETRIC CENTER OF HEAD AND CENTERLINE OF SHANK/SHOULDER	0.050 INCHES MINIMUM AND 0.070 INCHES MAXIMUM

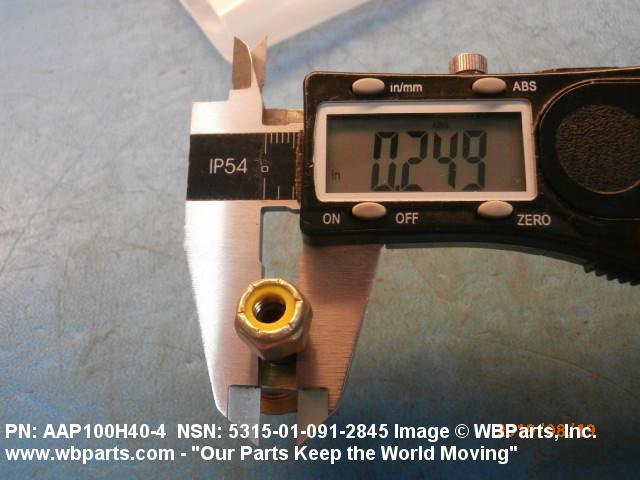

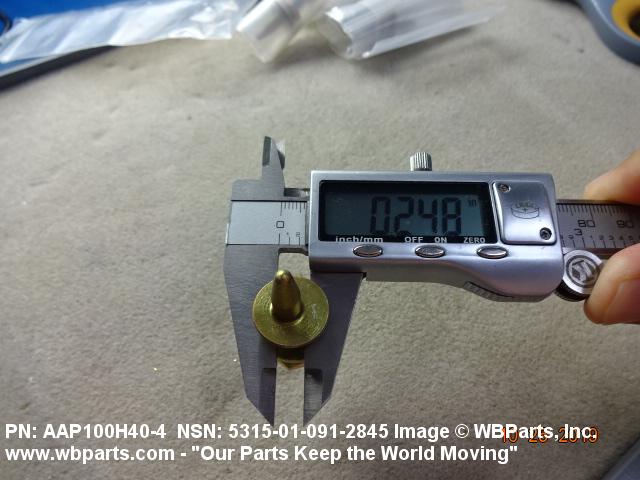

FIRST STEP DIAMETER	0.245 INCHES MINIMUM AND 0.250 INCHES MAXIMUM

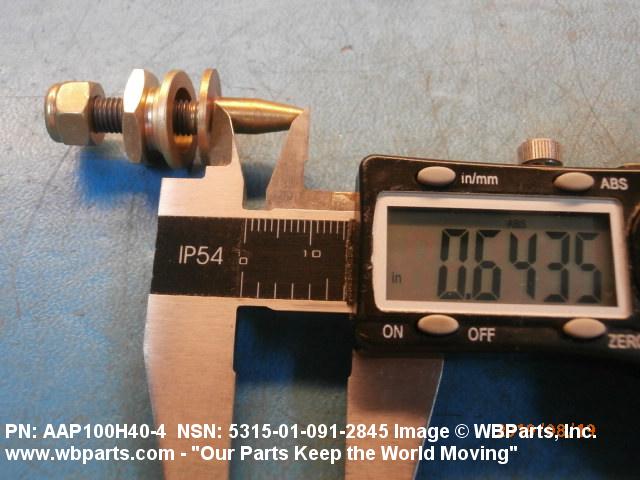

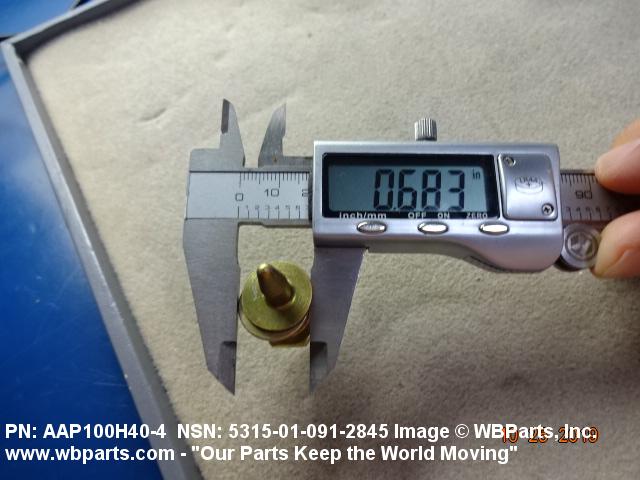

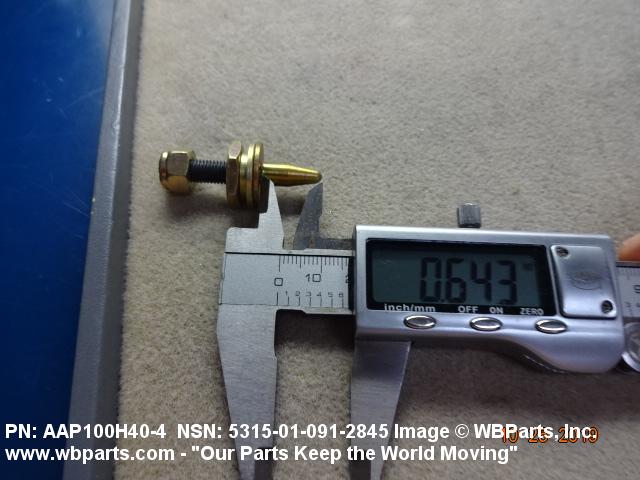

FIRST STEP LENGTH	0.641 INCHES NOMINAL

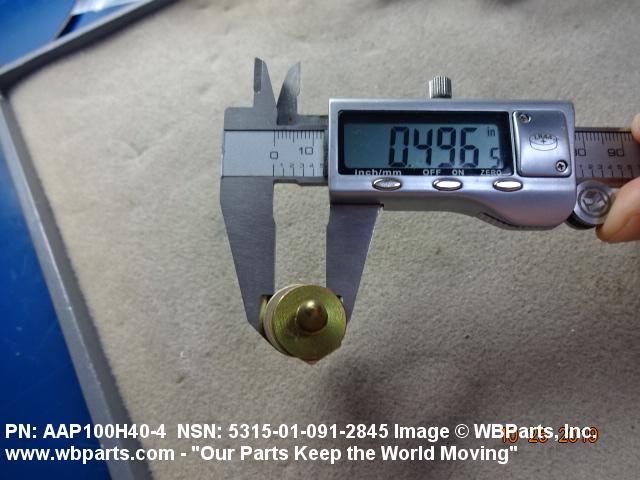

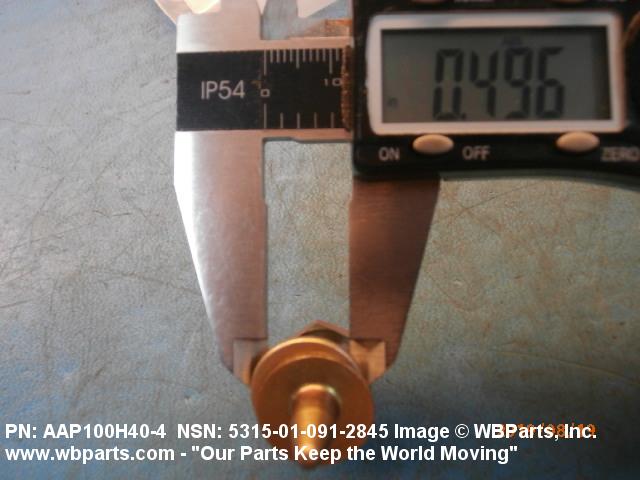

SECOND STEP DIAMETER	0.497 INCHES MINIMUM AND 0.500 INCHES MAXIMUM

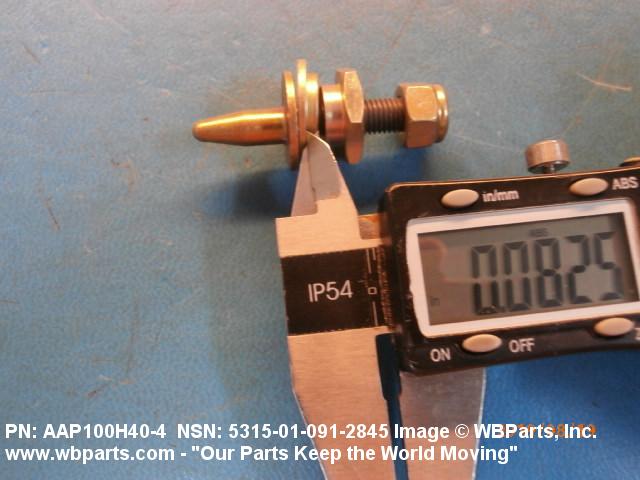

SECOND STEP LENGTH	0.088 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
THIRD STEP DIAMETER	0.422 INCHES MINIMUM AND 0.454 INCHES MAXIMUM
THIRD STEP LENGTH	0.569 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5315-01-091-2845

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-01-091-2845

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	UY	Advanced signal processor (AN/UYS-1)
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
