Product Details | ECCENTRIC PIN

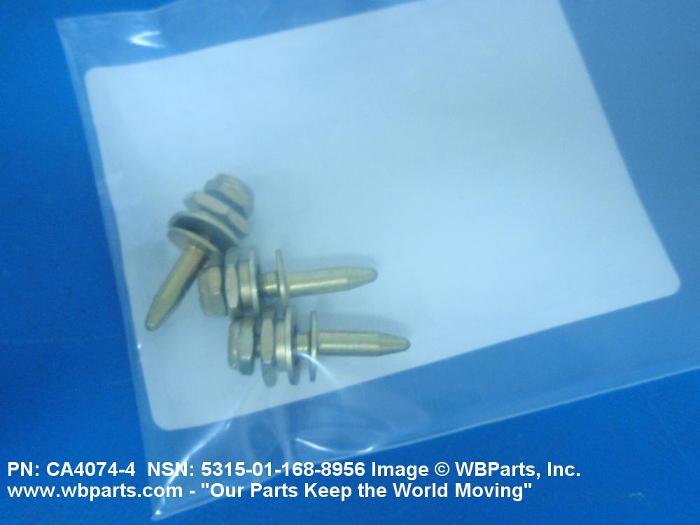

5315-01-168-8956 A headed, cylindrically-shaped metal item having a shank and/or shoulder offset from the geometric center of the head. If shouldered, a portion of the shank and/or shoulder may be concentric with the head.
Part Alternates: CA40744, CA4074-4, 7182028, 718202-8, 5189109002, 5189109-002, 5315-01-168-8956, 01-168-8956, 5315011688956, 011688956
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 DEC 1983 | 01-168-8956 | 21967 ( PIN, ECCENTRIC ) |
Drawings & Photos | NSN 5315-01-168-8956
Demand History | NSN 5315-01-168-8956
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5189109002 | 2024-08-229 | 21 | United Kingdom |
| 5315-01-168-8956 | 2022-11-313 | 1 | UK |
| 5315-01-168-8956 | 2022-10-276 | 1 | UK |
| 5315-01-168-8956 | 2020-01-16 | 15 | United Kingdom |
| 5189109002 | 2017-10-282 | 4 | United Kingdom |
| 5189109002 | 2013-04-106 | 2 | United Kingdom |
| 5189109002 | 2013-03-80 | 2 | United Kingdom |
| CA40744 | 2013-03-67 | 8 | United States |
| 5189109002 | 2012-10-276 | 10 | United Kingdom |
| CA4074-4 | 2012-10-276 | 8 | United Kingdom |
| 5189109002 | 2012-09-248 | 2 | United Kingdom |
| 5189109002 | 2011-04-94 | 3 | United Kingdom |
| 5189109002 | 2011-03-66 | 3 | United Kingdom |
| 5315-01-168-8956 | 2008-08-233 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-168-8956
Related Products | NSN 5315-01-168-8956
Technical Data | NSN 5315-01-168-8956
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 2496 SINGLE POUND |
| STYLE DESIGNATOR | D74 ECCENTRIC |
| OVERALL LENGTH | 1.188 INCHES NOMINAL |
| OFFSET DISTANCE BETWEEN GEOMETRIC CENTER OF HEAD AND CENTERLINE OF SHANK/SHOULDER | 0.040 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.562 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.182 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |

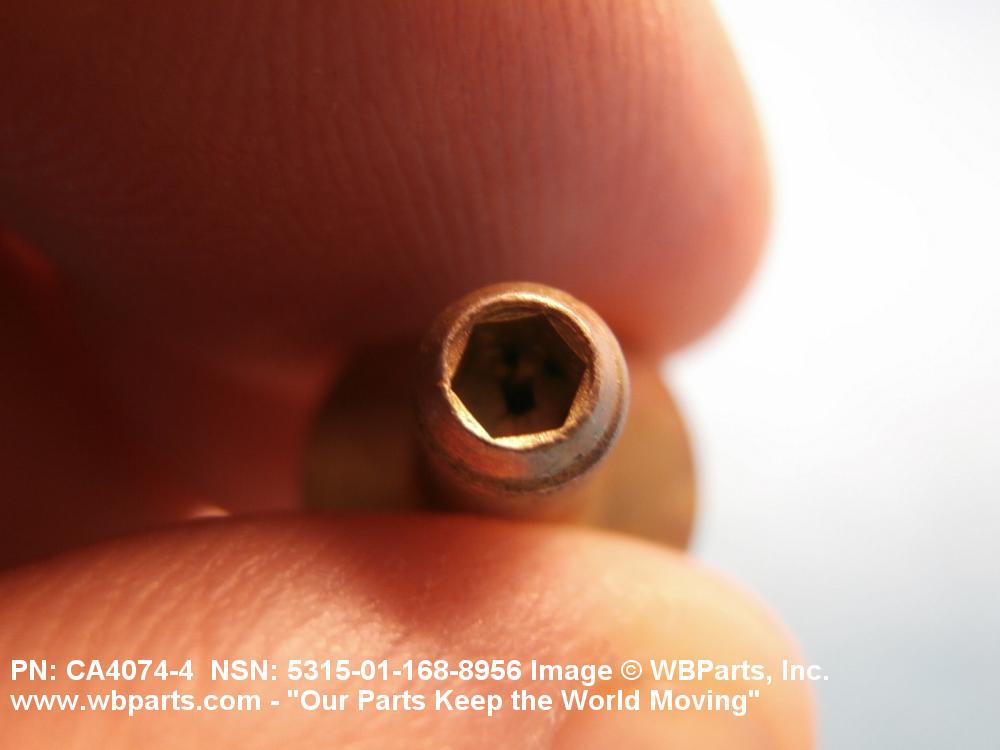

| INTERNAL DRIVE STYLE | 5 SOCKET |
| WIDTH BETWEEN FLATS | 0.094 INCHES NOMINAL |

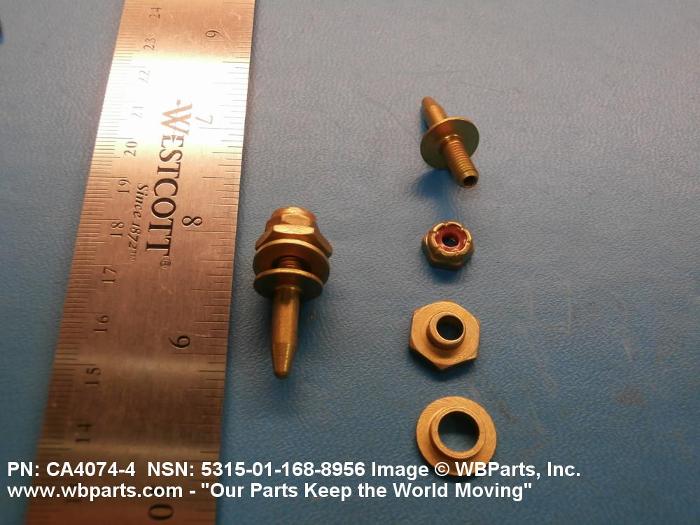

| SPECIAL FEATURES | ONE END THREADED 0.190-32UNF-3A; ECCENTRIC HEX BUSHING AND ROUND CONCENTRIC BUSHING AND LOCKNUT INCLUDED |
| MANUFACTURERS CODE | 05869 |
| DESIGN CONTROL REFERENCE | 718202-8 |
