NSN 5315-00-971-7557 50603S12T79L10, 00-971-7557, 009717557
Product Details | QUICK RELEASE PIN
5315-00-971-7557 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: 50603S12T79L10, 5315-00-971-7557, 00-971-7557, 5315009717557, 009717557
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 OCT 1966 | 00-971-7557 | 08323 ( PIN, QUICK RELEASE ) |

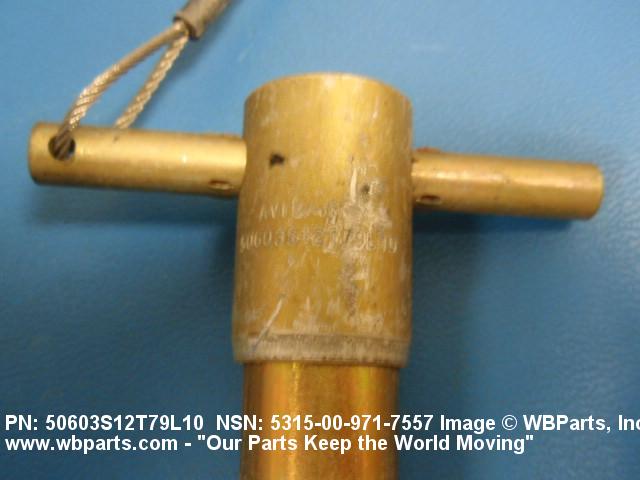

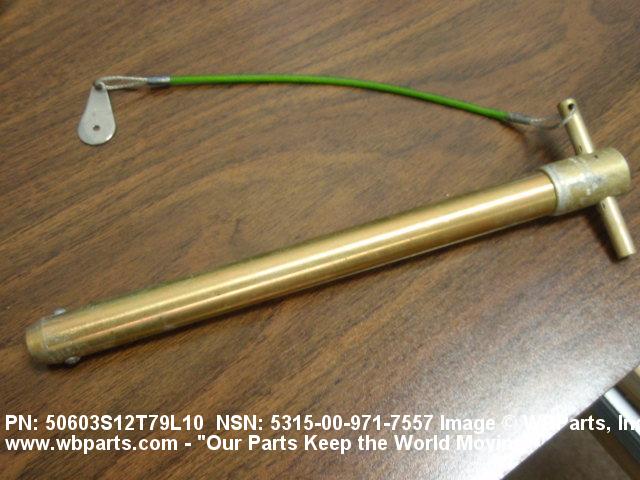

Drawings & Photos | NSN 5315-00-971-7557
Demand History | NSN 5315-00-971-7557
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-971-7557 | 2015-12-348 | 2 | DIBBS |
| 5315-00-971-7557 | 2015-09-252 | 2 | DIBBS |
| 5315-00-971-7557 | 2015-08-238 | 2 | DIBBS |
| 5315-00-971-7557 | 2009-05-150 | 9 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-971-7557
Related Products | NSN 5315-00-971-7557
Technical Data | NSN 5315-00-971-7557
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 SHANK |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHANK |
| SURFACE TREATMENT | CADMIUM AND CHROMATE SHANK |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OR MIL-C-81562,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SHANK |
| STYLE DESIGNATOR | Q248 T HANDLE |
| HEAD DIAMETER | 0.860 INCHES MINIMUM AND 0.890 INCHES MAXIMUM |
| HANDLE LENGTH | 1.820 INCHES MINIMUM AND 1.870 INCHES MAXIMUM |
| SHANK DIAMETER | 0.745 INCHES MINIMUM AND 0.748 INCHES MAXIMUM |
| GRIP LENGTH | 7.900 INCHES MINIMUM AND 7.920 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.303 INCHES MINIMUM AND 1.323 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.750 INCHES MAXIMUM |
| ACTUATION TYPE | PULL AND PUSH |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | CABLE LANYARD W/TERMINATIONS |
| LANYARD LENGTH | 10.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 84256 |
| DESIGN CONTROL REFERENCE | 50603S12T79L10 |
