5315-00-964-5428 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: 5315-00-964-5428, 00-964-5428, 5315009645428, 009645428

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 00-964-5428

Drawings & Photos | NSN 5315-00-964-5428


Demand History | NSN 5315-00-964-5428

Part Number Request Date QTY Origin
5315-00-964-5428 2018-02-53 75 United States

Cross Reference | NSN 5315-00-964-5428

Part Number Cage Code Manufacturer
BLC4LA13S 84256 AVIBANK MFG., INC.
BLC4LA13SM 84256 AVIBANK MFG., INC.
BLC4R13S 84256 AVIBANK MFG., INC.
LG4CL1300 62060 SOUTHCO INC.
LG4CL1300 83014 HARTWELL CORPORATION
MS17986-413 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17986C413 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17986C413 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17986C413 H0910 VEREENIGDE INGENIEURSBUREAUX 'VIBA'N.V.
NAS1334C5C13 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
SLC4AL13 16258 SPACELOK INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-964-5428

Technical Data | NSN 5315-00-964-5428

Characteristic Specifications
MATERIAL STEEL COMP 4130 OR STEEL COMP 4135 SHANK STEEL COMP 4130 SPINDLE
MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-T-6736 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-T-6735 MIL SPEC 2ND MATERIAL RESPONSE SHANK MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SPINDLE
SURFACE TREATMENT CADMIUM AND CHROMATE SHANK CADMIUM AND CHROMATE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
HARDNESS RATING 40.0 ROCKWELL C NOMINAL OVERALL

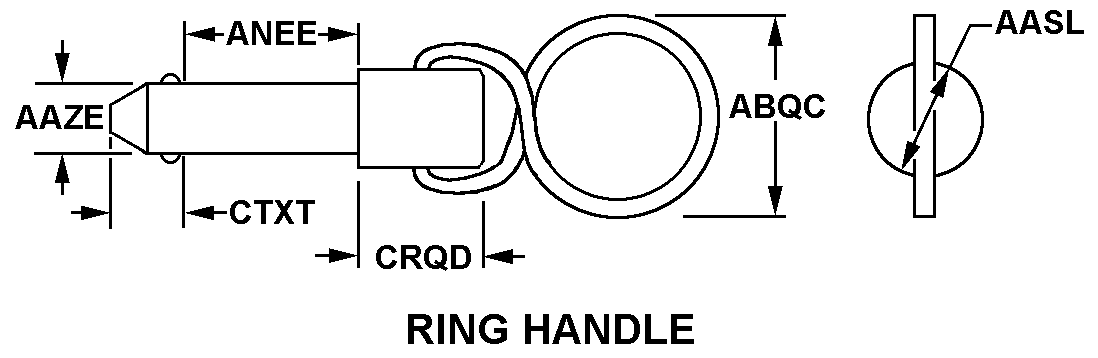

STYLE DESIGNATOR Q252 RING HANDLE
HEAD DIAMETER 0.750 INCHES NOMINAL
SHANK DIAMETER 0.2470 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM
GRIP LENGTH 1.300 INCHES NOMINAL
SHOULDER TO HEAD END DISTANCE 1.550 INCHES NOMINAL
DETENT TO TAPERED END DISTANCE 0.380 INCHES NOMINAL
ACTUATION TYPE PULL
DETENT QUANTITY 4
PIN ATTACHMENT TYPE RING
