NSN 5315-00-964-1210 932A974P1, 00-964-1210, 009641210

Product Details | HEADED STRAIGHT PIN

5315-00-964-1210 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.

Part Alternates: 932A974P1, 5315-00-964-1210, 00-964-1210, 5315009641210, 009641210

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	03 JUN 1966	00-964-1210	02384 ( PIN, STRAIGHT, HEADED )

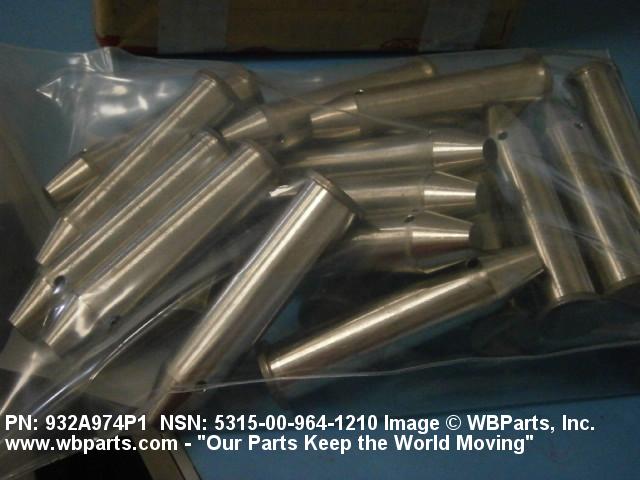

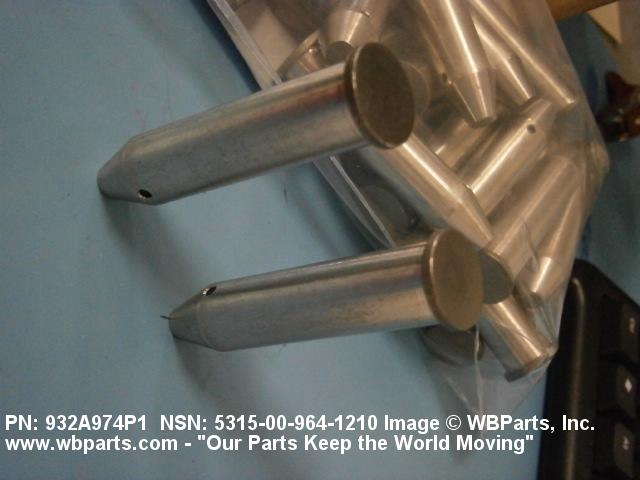

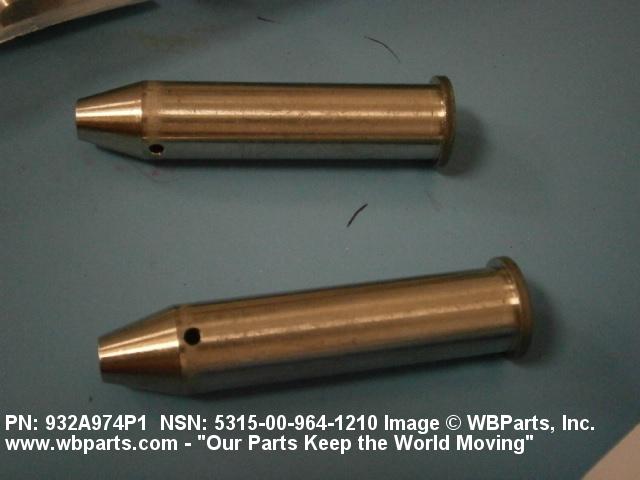

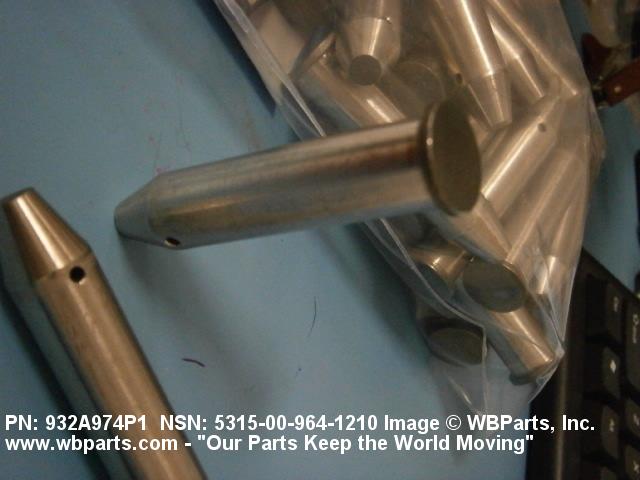

Drawings & Photos | NSN 5315-00-964-1210

Part Number	Request Date	QTY	Origin
5315-00-964-1210	2015-10-302	40	DIBBS
932A974P1	2015-08-226	40	US
5315-00-964-1210	2015-08-223	40	DIBBS
5315-00-964-1210	2014-05-141	36	DIBBS
5315-00-964-1210	2014-05-135	36	DIBBS
5315-00-964-1210	2011-11-326	27	United States
5315-00-964-1210	2011-11-326	27	United States
5315-00-964-1210	2011-10-285	27	DIBBS
5315-00-964-1210	2011-09-250	6	DIBBS
5315-00-964-1210	2010-06-181	38	DIBBS
5315-00-964-1210	2010-05-137	160	DIBBS
5315-00-964-1210	2010-01-06	37	DIBBS
5315-00-964-1210	2009-12-341	160	DIBBS
5315-00-964-1210	2009-02-50	160	DIBBS

Cross Reference | NSN 5315-00-964-1210

Part Number	Cage Code	Manufacturer
932A974P1	07482	GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-964-1210

Compare

Related Products | NSN 5315-00-964-1210

5315-00-999-2445, 5315-01-006-6594, 5315-01-021-0513, 5315-01-041-1438, 5315-01-043-9709

Technical Data | NSN 5315-00-964-1210

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	L193 STRAIGHT
CHAMFER LENGTH	0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM
DIAMETER	0.622 INCHES MINIMUM AND 0.623 INCHES MAXIMUM
UNDER HEAD LENGTH	2.840 INCHES MINIMUM AND 2.860 INCHES MAXIMUM
PIN CHAMFER ANGLE	15.0 DEGREES NOMINAL
HEAD STYLE	20 FLAT FILLISTER
PIN HEAD DIAMETER	0.250 INCHES NOMINAL
HEIGHT	0.090 INCHES NOMINAL
HOLE ARRANGEMENT STYLE	1 ONE END DRILLED
FIRST HOLE DIAMETER	0.106 INCHES NOMINAL
DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN	0.620 INCHES NOMINAL
MANUFACTURERS CODE	07482
DESIGN CONTROL REFERENCE	932A974P1

Restrictions/Controls & Freight Information | NSN 5315-00-964-1210

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	SG	403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-964-1210

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
