NSN 5315-00-964-1206 MS17986C1019, MS17987C1019, SLC10R19
Product Details | QUICK RELEASE PIN
5315-00-964-1206 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17986C1019, MS17987C1019, SLC10R19, BACP18AM10L19HC, BLC10R19S, BLC10RC19S, LG10CR19M, 50921C10L19, 5315-00-964-1206, 00-964-1206, 5315009641206, 009641206
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JUN 1966 | 00-964-1206 | 08323 ( PIN, QUICK RELEASE ) |

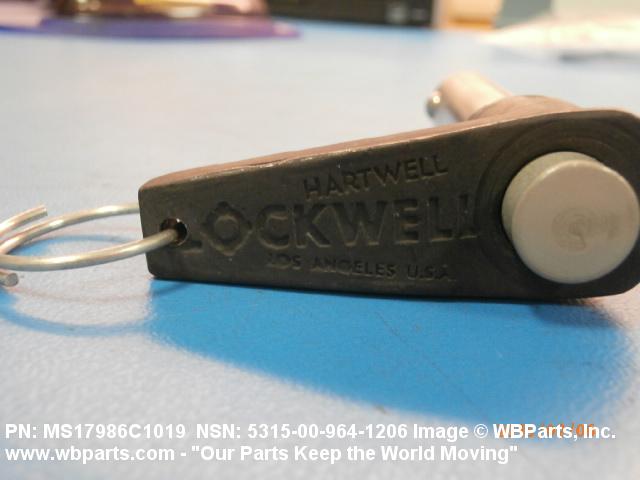

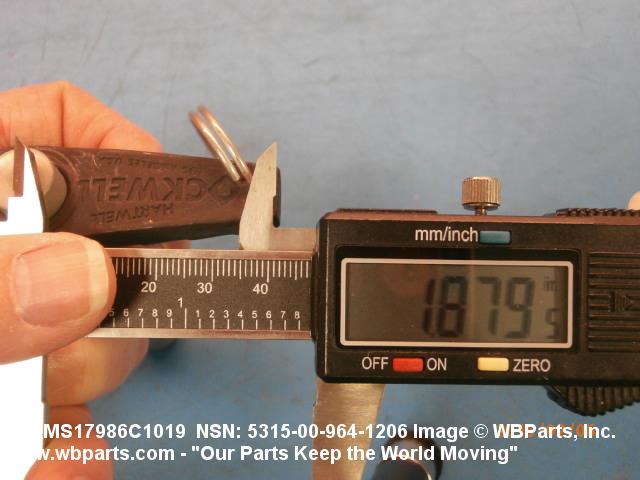

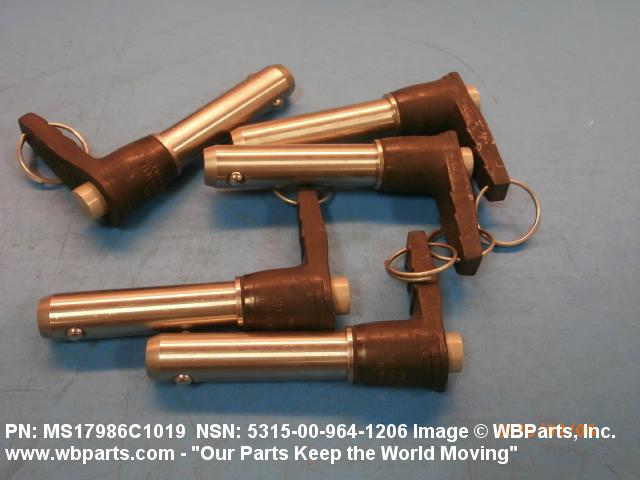

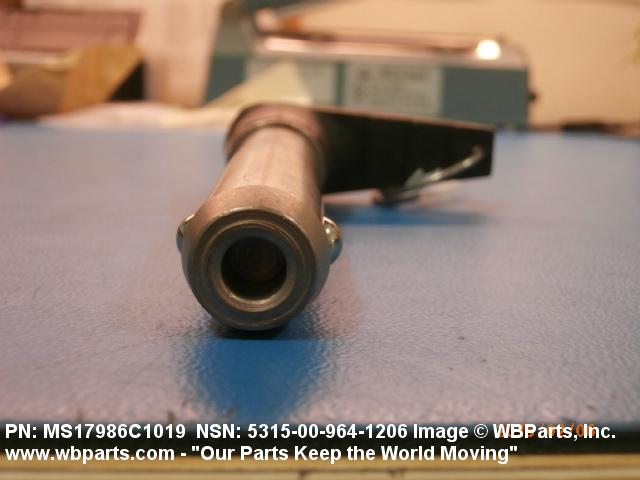

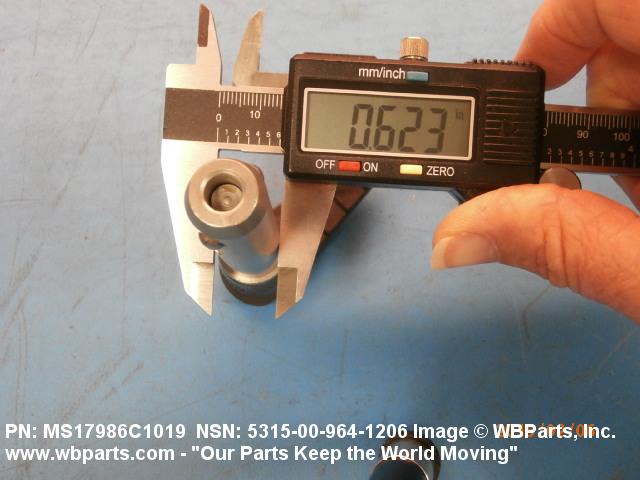

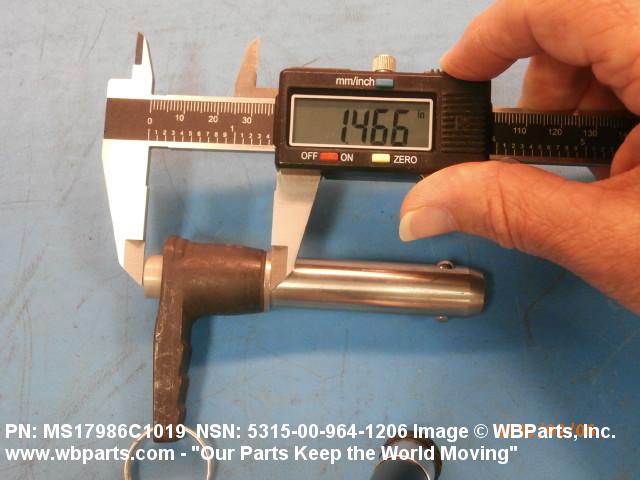

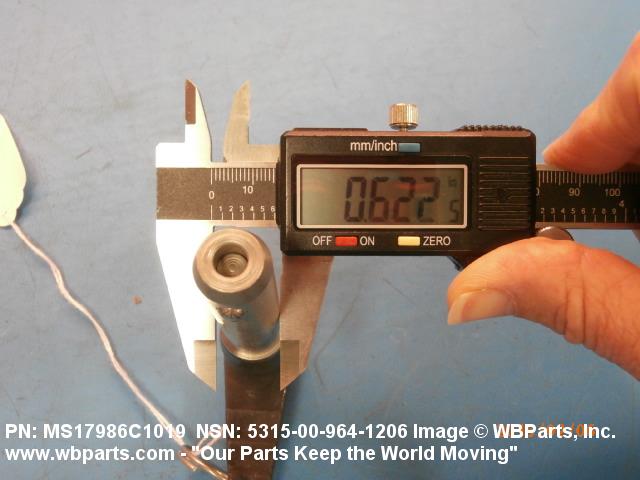

Drawings & Photos | NSN 5315-00-964-1206
Demand History | NSN 5315-00-964-1206
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-964-1206 | 2023-07-190 | 26 | DIBBS |
| MS17986C1019 | 2015-01-28 | 6 | United States |
Cross Reference | NSN 5315-00-964-1206
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50921C10L19 | 84256 | AVIBANK MFG., INC. |
| BACP18AM10L19HC | 81205 | THE BOEING COMPANY DBA BOEING |
| BLC10R19S | 84256 | AVIBANK MFG., INC. |
| BLC10RC19S | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| LG10CR19M | 83014 | HARTWELL CORPORATION |
| MS17986C1019 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17986C1019 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17987C1019 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17987C1019 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SLC10R19 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-964-1206
Related Products | NSN 5315-00-964-1206
Technical Data | NSN 5315-00-964-1206
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 413.0 OR ALUMINUM ALLOY A380.0 OR ALUMINUM ALLOY 360.0 OR ALUMINUM ALLOY A413.0 OR ALUMINUM ALLOY 380.0 OR ALUMINUM ALLOY B443.0 OR ALUMINUM ALLOY 518.0 OR ALUMINUM ALLOY A360.0 OR ALUMINUM ALLOY A384.0 HANDLE STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 440C DETENT STEEL COMP 630 OR STEEL COMP 632 SPINDLE ALUMINUM ALLOY 2017 OR ALUMINUM ALLOY 2024 OR STEEL COMP 303 BUTTON STEEL COMP 303 COLLAR STEEL COMP 302 HOOK STEEL COMP 302 OR STEEL COMP 631 SPRING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE QQ-W-423,COMP 302,FORM 1,COND B FED SPEC 1ST MATERIAL RESPONSE OR AMS 5673 ASSN STD 2ND MATERIAL RESPONSE SPRING |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM HANDLE PASSIVATE SHANK PASSIVATE DETENT PASSIVATE SPINDLE ANODIZE OR OXIDE FILM OR PASSIVATE BUTTON PASSIVATE COLLAR PASSIVATE HOOK PASSIVATE SPRING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE HANDLE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE DETENT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OR QQ-P-35 FED SPEC 3RD TREATMENT RESPONSE BUTTON QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE COLLAR QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE HOOK |
Restrictions/Controls & Freight Information | NSN 5315-00-964-1206
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-964-1206
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AH | SU:LGM-30 MINUTEMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
