Product Details | QUICK RELEASE PIN

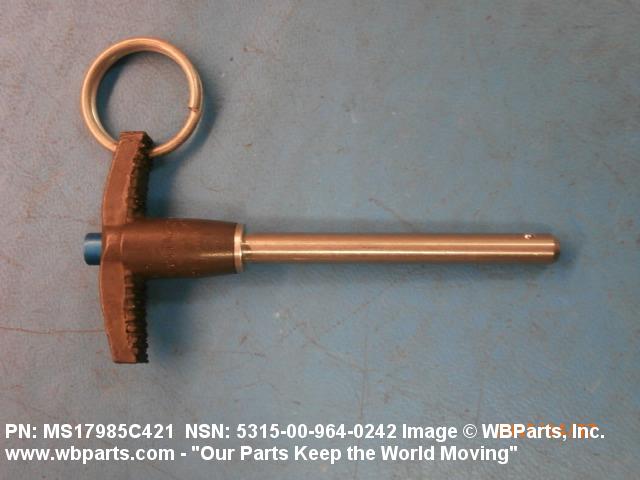

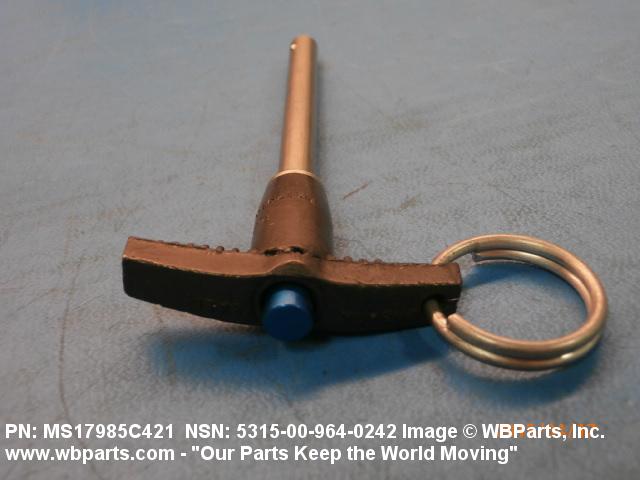

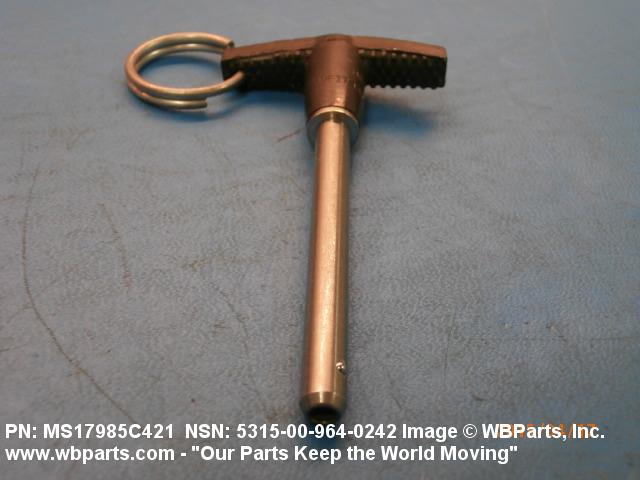

5315-00-964-0242 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: MS17985C421, NAS1334A2C21D, SLC4AT21, BLC4TA21S, BLC4TA21SM, LG4CT0421, LG4CT21M, 5315-00-964-0242, 00-964-0242, 5315009640242, 009640242

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-964-0242	08323 ( PIN, QUICK RELEASE )

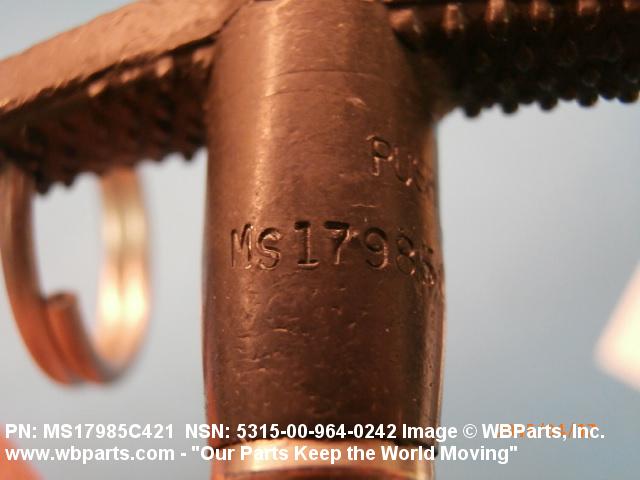

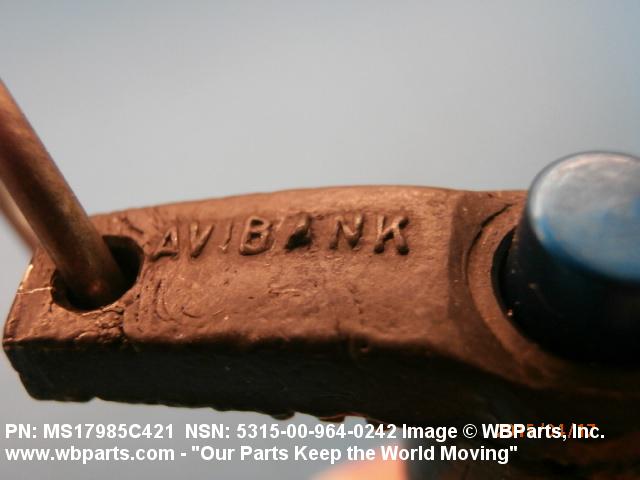

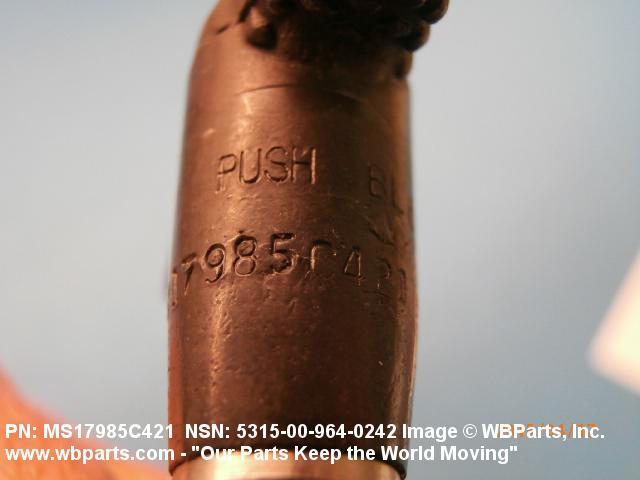

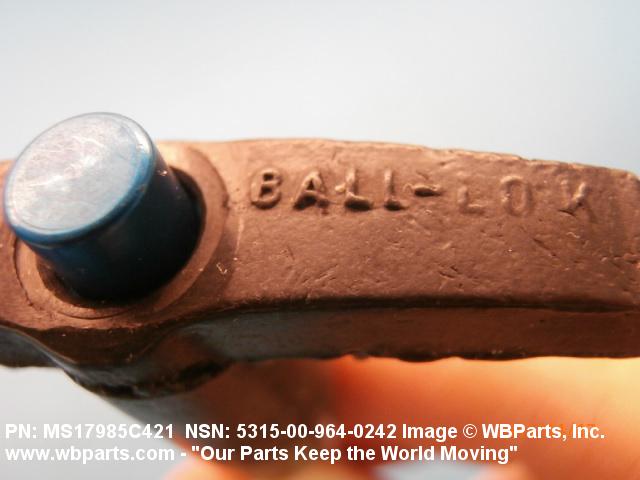

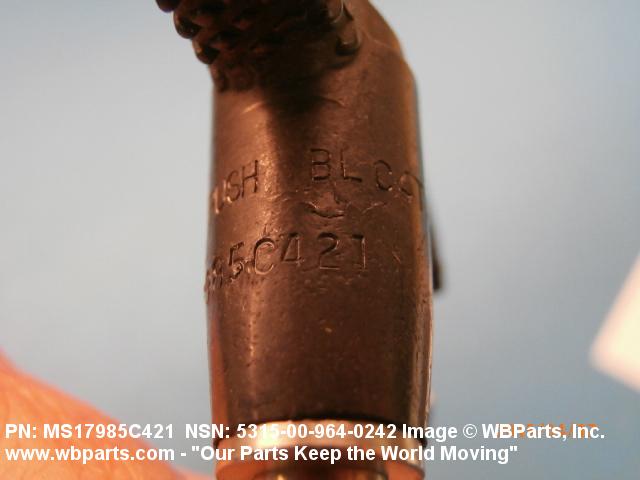

Drawings & Photos | NSN 5315-00-964-0242

Part Number	Request Date	QTY	Origin
MS17985C421	2024-10-296	8	US
5315-00-964-0242	2022-07-188	20	AE
MS17985C421	2015-04-104	8	United States
MS17985C421	2015-04-104	15	United States
MS17985C421	2015-02-44	1	Australia
MS17985C421	2014-08-232	73	Australia
MS17985C421	2014-08-232	73	United States
MS17985C421	2014-08-232	73	United States
MS17985C421	2014-08-227	73	Australia
5315-00-964-0242	2013-11-319	1	DIBBS-RFPs
5315-00-964-0242	2009-04-98	200	India
BLC4TA21S	2009-03-89	55	India
5315-00-964-0242	2009-01-07	200	India

Cross Reference | NSN 5315-00-964-0242

Part Number	Cage Code	Manufacturer
BLC4TA21S	84256	AVIBANK MFG., INC.
BLC4TA21SM	84256	AVIBANK MFG., INC.
LG4CT0421	62060	SOUTHCO INC.
LG4CT0421	83014	HARTWELL CORPORATION
LG4CT21M	62060	SOUTHCO INC.
LG4CT21M	83014	HARTWELL CORPORATION
MS17985C421	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1334A2C21D	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
SLC4AT21	16258	SPACELOK INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-964-0242

Compare

Related Products | NSN 5315-00-964-0242

5315-00-964-0243, 5315-00-964-0269, 5315-00-964-0357, 5315-00-964-0804, 5315-00-964-0874

Technical Data | NSN 5315-00-964-0242

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE
SURFACE TREATMENT	PASSIVATE SHANK PASSIVATE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
HARDNESS RATING	40.0 ROCKWELL C MINIMUM SHANK 54.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM DETENT 40.0 ROCKWELL C MINIMUM SPINDLE
STYLE DESIGNATOR	Q241 T HANDLE

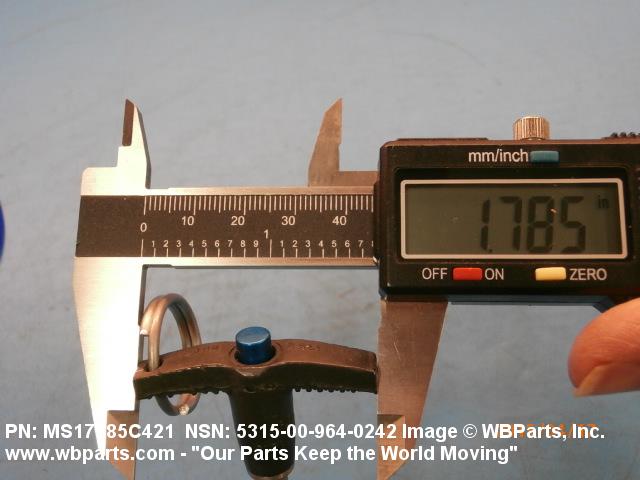

HANDLE LENGTH	1.750 INCHES MINIMUM AND 2.000 INCHES MAXIMUM

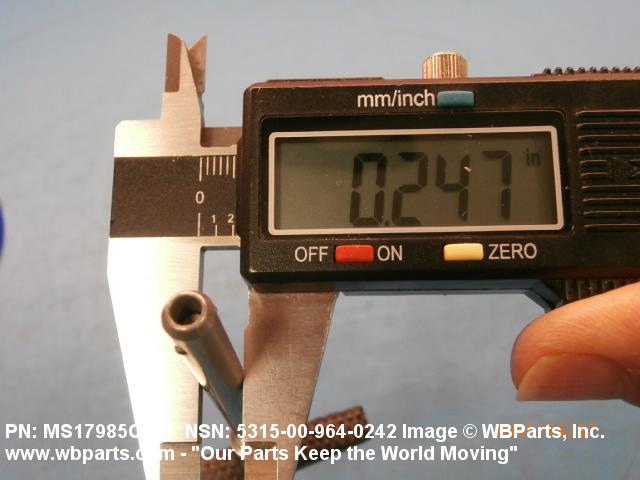

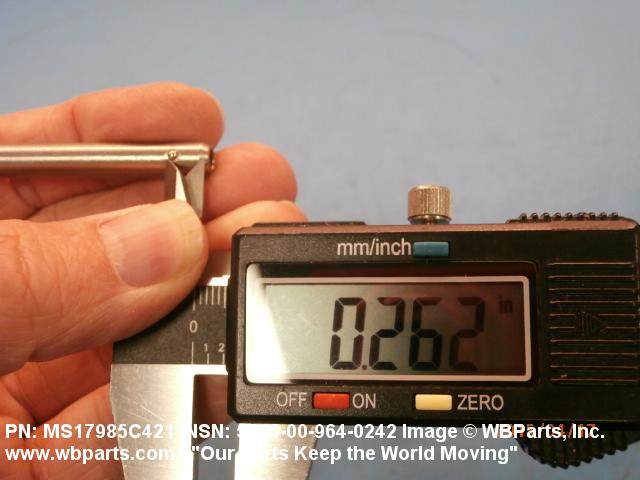

SHANK DIAMETER	0.2470 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM

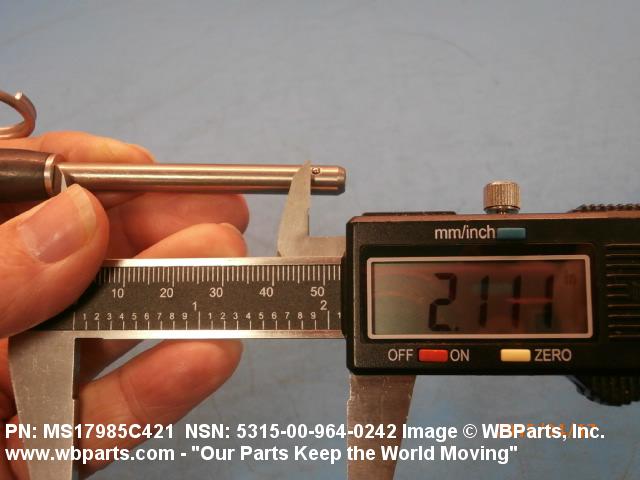

GRIP LENGTH	2.100 INCHES MINIMUM AND 2.120 INCHES MAXIMUM

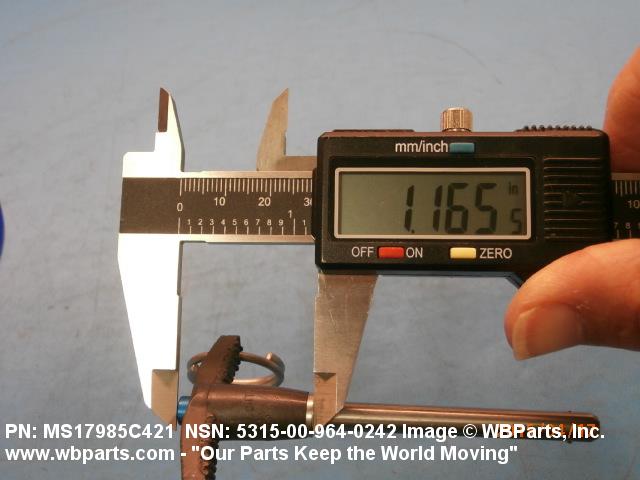

SHOULDER TO HEAD END DISTANCE	1.550 INCHES MAXIMUM
DETENT TO TAPERED END DISTANCE	0.380 INCHES MAXIMUM
ACTUATION TYPE	PUSH
ACTUATION METHOD	PUSH BUTTON
DETENT QUANTITY	2
PIN ATTACHMENT TYPE	HOOK OR RING
SPECIFICATION/STANDARD DATA	80205-NAS1334 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
