NSN 5315-00-941-3559 MS203929C59, MS20392-9C59, 00-941-3559
Product Details | HEADED STRAIGHT PIN
5315-00-941-3559 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203929C59, MS20392-9C59, 5315-00-941-3559, 00-941-3559, 5315009413559, 009413559
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 DEC 1965 | 00-941-3559 | 02384 ( PIN, STRAIGHT, HEADED ) |

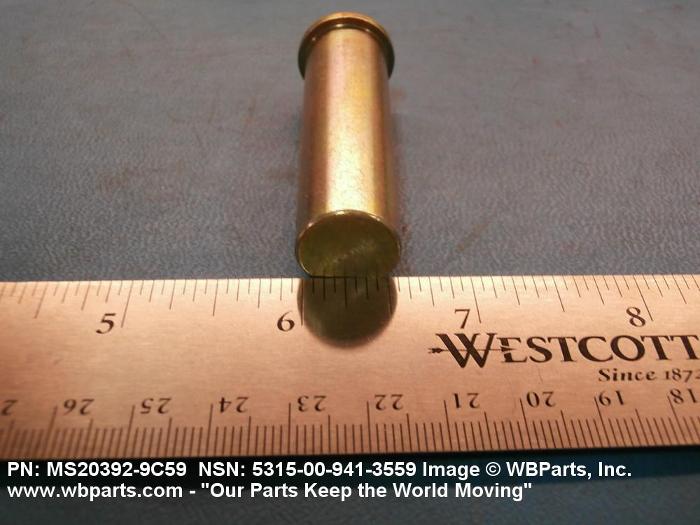

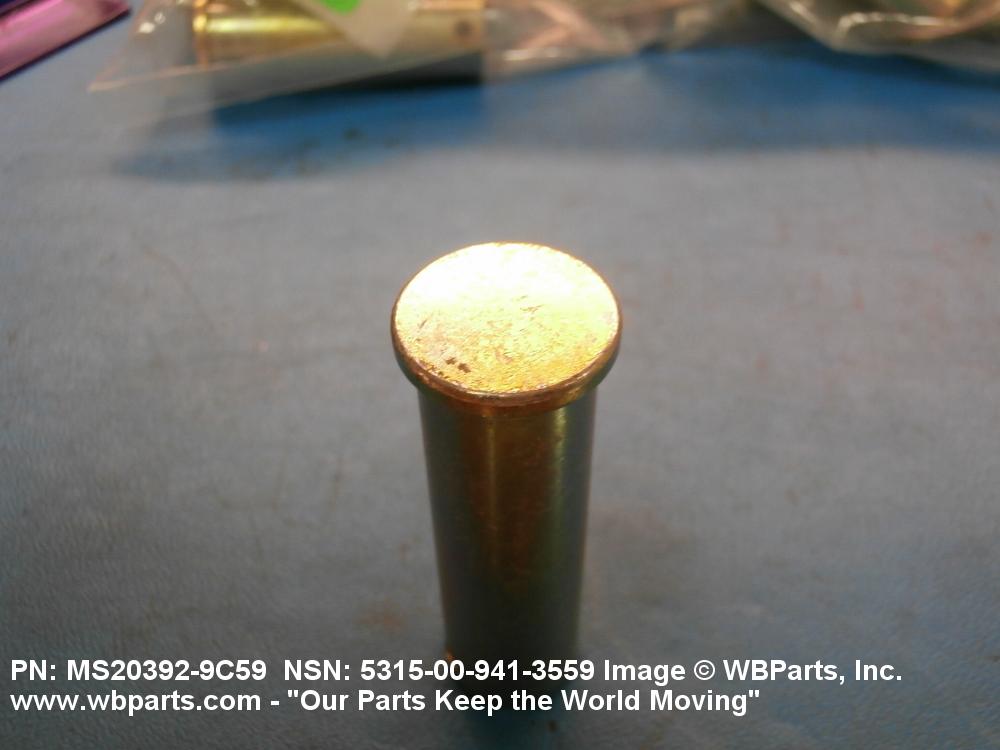

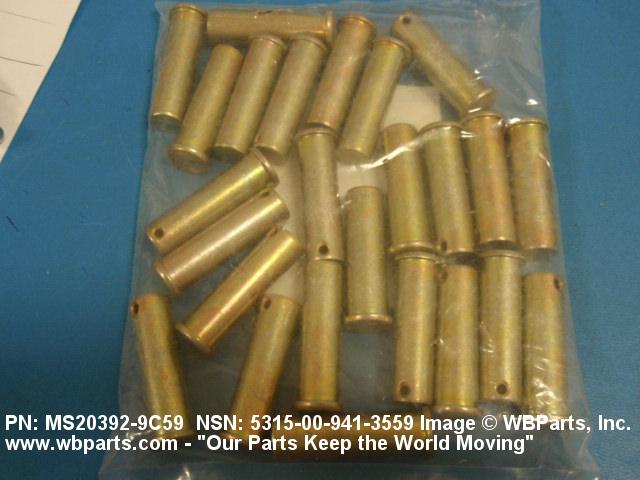

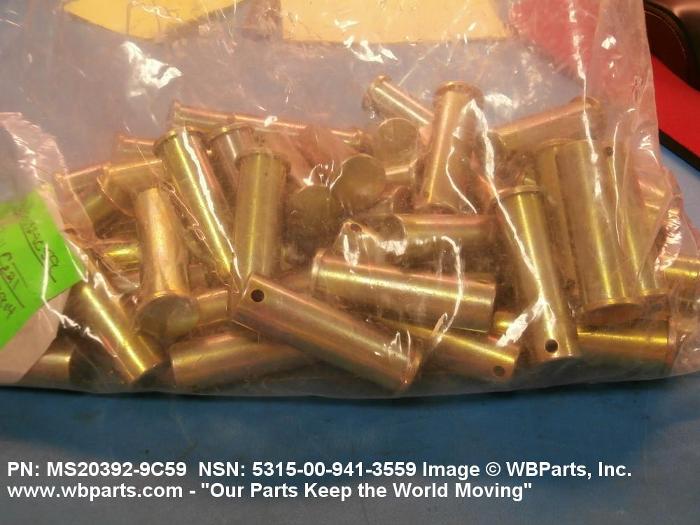

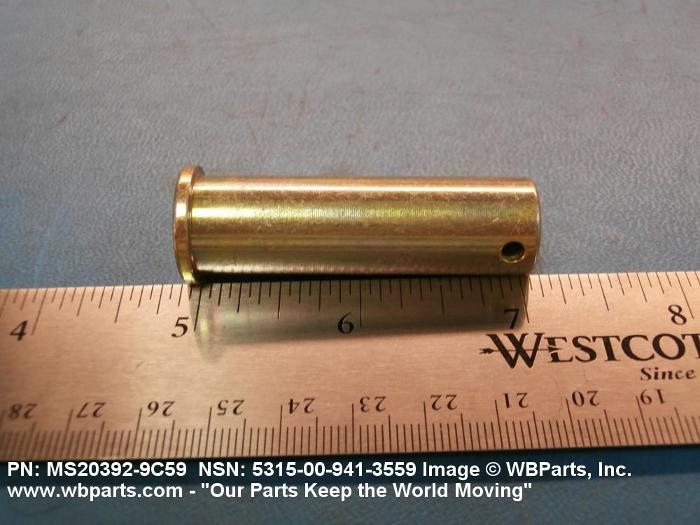

Drawings & Photos | NSN 5315-00-941-3559
Demand History | NSN 5315-00-941-3559
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-941-3559 | 2023-09-269 | 90 | US |
| 5315-00-941-3559 | 2023-01-05 | 73 | DIBBS |
| 5315-00-941-3559 | 2017-05-124 | 94 | DIBBS |
| 5315-00-941-3559 | 2015-11-316 | 30 | DIBBS |
| MS203929C59 | 2014-12-336 | 88 | US |
| MS203929C59 | 2013-01-07 | 24 | United States |
| 5315-00-941-3559 | 2012-07-185 | 30 | DIBBS |
| 5315-00-941-3559 | 2011-12-347 | 5 | DIBBS |
| 5315-00-941-3559 | 2011-07-183 | 1 | DIBBS |
| 5315-00-941-3559 | 2011-06-163 | 1 | DIBBS |
| 5315-00-941-3559 | 2011-05-140 | 2 | DIBBS |
| 5315-00-941-3559 | 2010-12-362 | 1 | DIBBS |
| 5315-00-941-3559 | 2010-12-354 | 1 | DIBBS |
| 5315-00-941-3559 | 2010-05-137 | 25 | DIBBS |
| MS203929C59 | 2009-07-204 | 8 | United States |
| MS203929C59 | 2009-07-203 | 8 | US |
| 5315-00-941-3559 | 2009-03-72 | 2020 | US |
| MS203929C59 | 2009-03-71 | 1000 | US |
| MS203929C59 | 2009-03-71 | 2000 | US |
| 5315-00-941-3559 | 2008-03-84 | 600 | United States |
| 5315-00-941-3559 | 2008-03-78 | 600 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-941-3559
Related Products | NSN 5315-00-941-3559
Technical Data | NSN 5315-00-941-3559
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 46020 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.078 INCHES NOMINAL |
| DIAMETER | 0.620 INCHES MINIMUM AND 0.622 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 2.069 INCHES MINIMUM AND 2.089 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 14.5 DEGREES MINIMUM AND 15.5 DEGREES MAXIMUM |
| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.750 INCHES NOMINAL |
| HEIGHT | 0.093 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.131 INCHES MINIMUM AND 0.151 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.165 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-9C59 |
Restrictions/Controls & Freight Information | NSN 5315-00-941-3559
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105000 | DOWEL PINS I/S NOI IN BAG/BBL/BOXES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-941-3559
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
