NSN 5315-00-938-4070 MS17990410, MS17990-410, MS17990C410

Product Details | QUICK RELEASE PIN

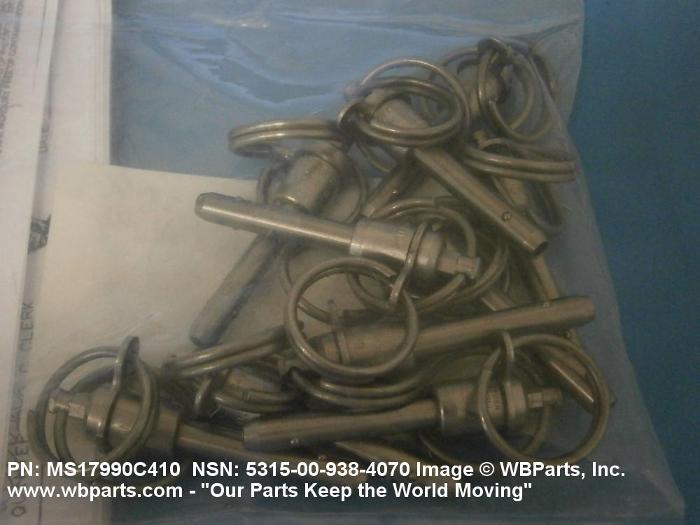

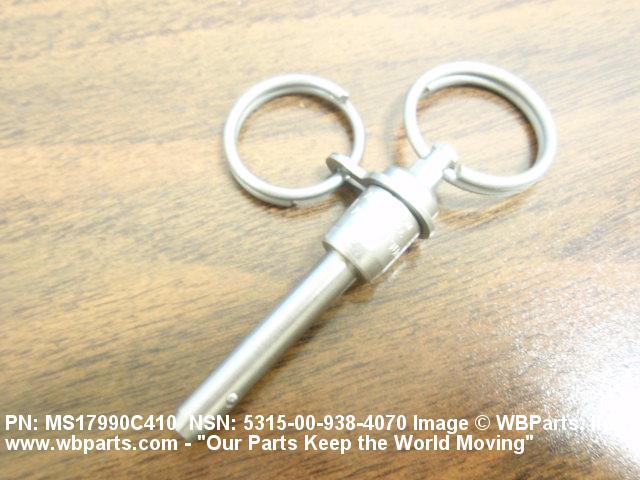

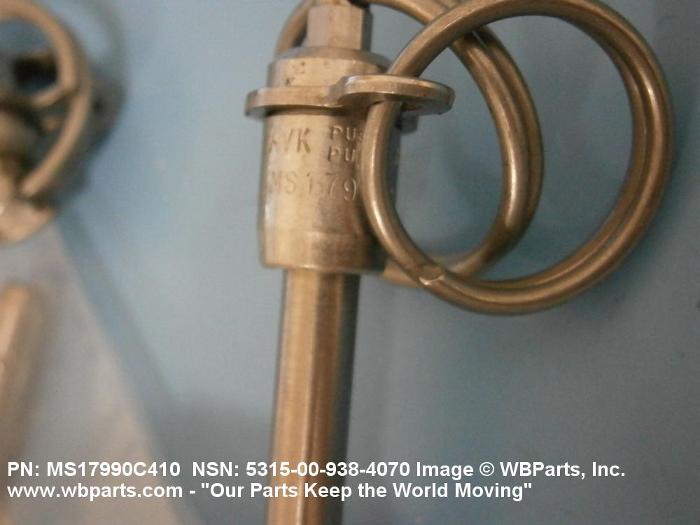

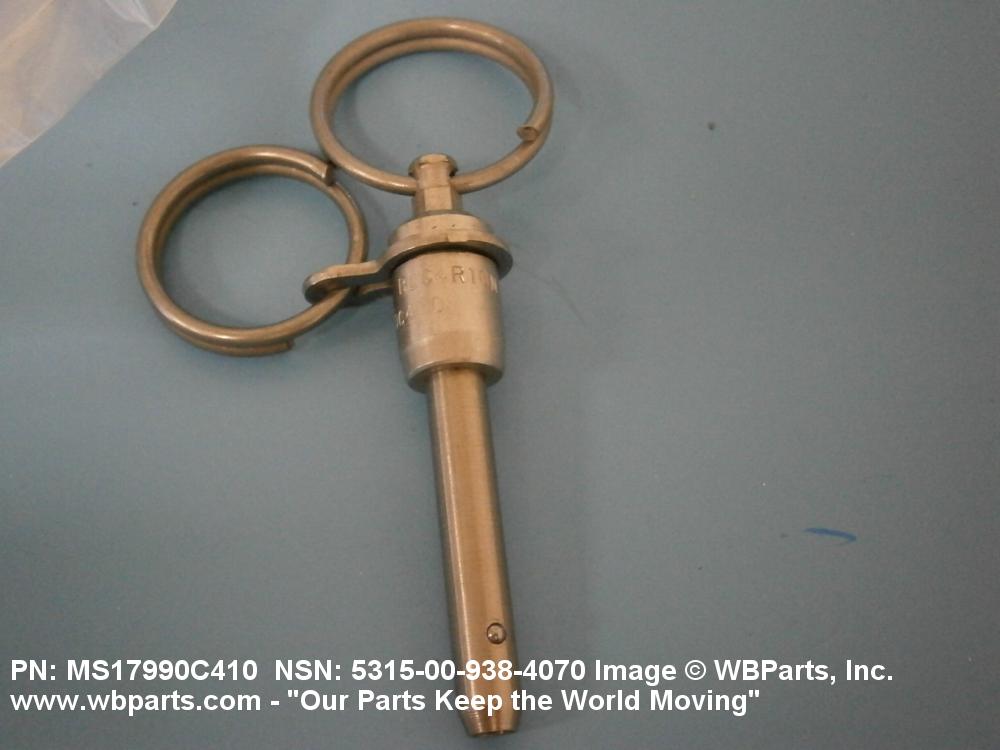

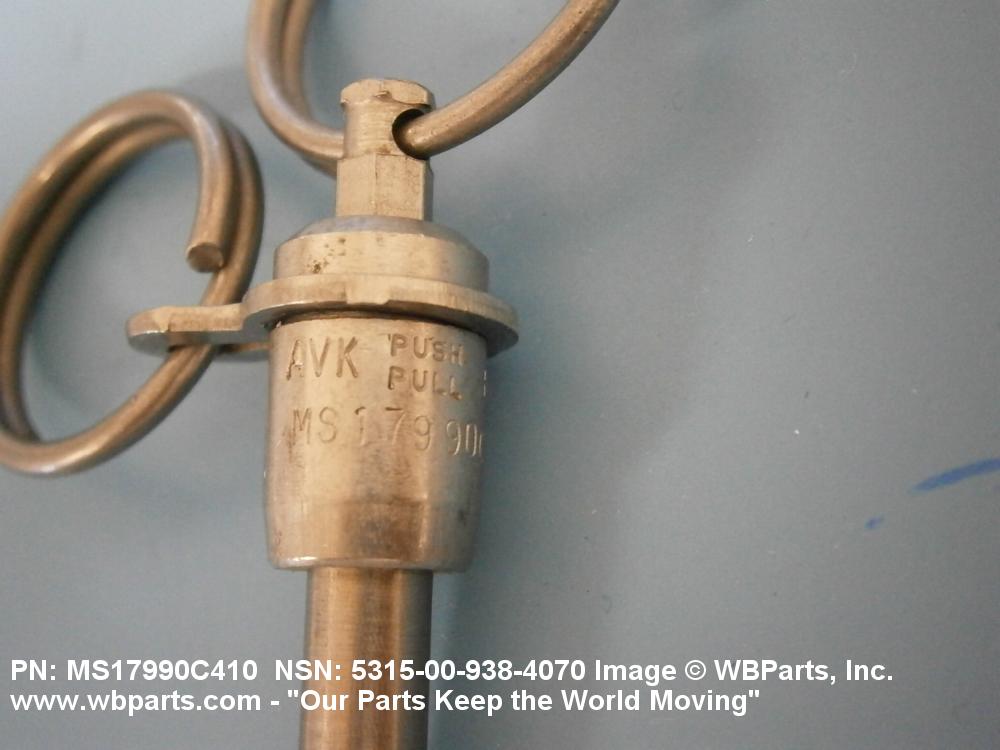

5315-00-938-4070 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: MS17990410, MS17990-410, MS17990C410, SL19330S4R10N, BLC4R10N, BLS4R10N, DLS4R10N, LH4CR1000, LH4CR10M, LH4C-R-10M, LH4SR1000, LH4SR10M, LH4S-R-10M, 5315-00-938-4070, 00-938-4070, 5315009384070, 009384070

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 MAR 1967	00-938-4070	08323 ( PIN, QUICK RELEASE )

Drawings & Photos | NSN 5315-00-938-4070

Part Number	Request Date	QTY	Origin
MS17990C410	2023-07-205	110	United States
5315-00-938-4070	2023-04-117	263	DIBBS
5315-00-938-4070	2023-04-95	251	DIBBS
5315-00-938-4070	2022-09-264	6	US
5315-00-938-4070	2021-11-316	2	US
SL19330S4R10N	2020-11-309	4	United States
5315-00-938-4070	2013-11-319	1	DIBBS-RFPs
MS17990410	2013-11-316	2	US
5315-00-938-4070	2013-01-16	20	United States
5315-00-938-4070	2012-10-304	100	United States
MS17990C410	2011-10-292	3	Canada
5315-00-938-4070	2010-11-313	5	United States
5315-00-938-4070	2010-11-312	5	MX
MS17990C410	2010-10-279	1	Canada
MS17990410	2010-07-204	2	United States
MS17990C410	2008-10-284	50	Turkey
MS17990C410	2008-10-284	50	Turkey
MS17990C410	2008-10-284	50	Turkey
MS17990C410	2008-10-284	50	Turkey

Cross Reference | NSN 5315-00-938-4070

Part Number	Cage Code	Manufacturer
BLC4R10N	84256	AVIBANK MFG., INC.
BLC4R10N	R1120	SATAIR A/S
BLS4R10N	84256	AVIBANK MFG., INC.
DLS4R10N	16258	SPACELOK INC.
LH4C-R-10M	62060	SOUTHCO INC.
LH4C-R-10M	83014	HARTWELL CORPORATION
LH4CR1000	62060	SOUTHCO INC.
LH4CR1000	83014	HARTWELL CORPORATION
LH4S-R-10M	83014	HARTWELL CORPORATION
LH4SR1000	83014	HARTWELL CORPORATION
MS17990-410	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17990-410	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17990C410	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17990C410	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17990C410	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
SL19330S4R10N	16258	SPACELOK INC.
