NSN 5315-00-905-4450 MS203925C45, MS20392-5C45, NASM20392
Product Details | HEADED STRAIGHT PIN
5315-00-905-4450 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203925C45, MS20392-5C45, NASM20392, 5315-00-905-4450, 00-905-4450, 5315009054450, 009054450
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-905-4450 | 02384 ( PIN, STRAIGHT, HEADED ) |

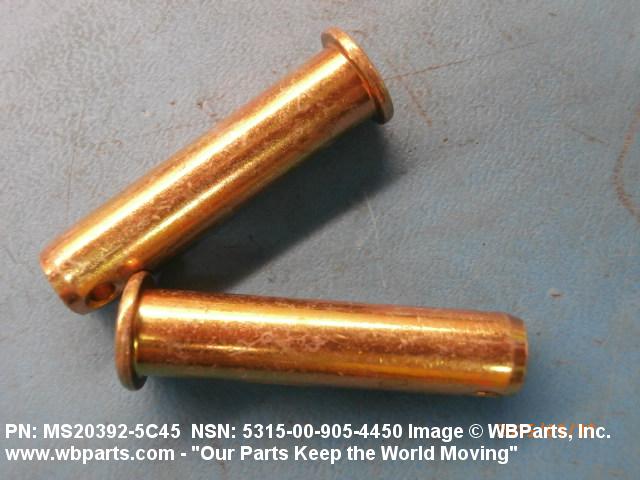

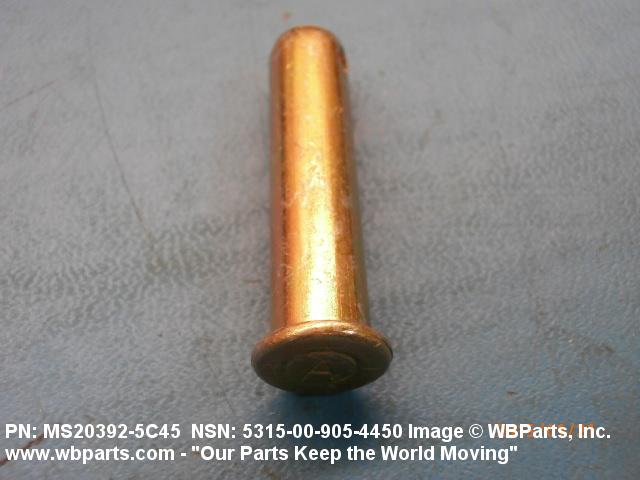

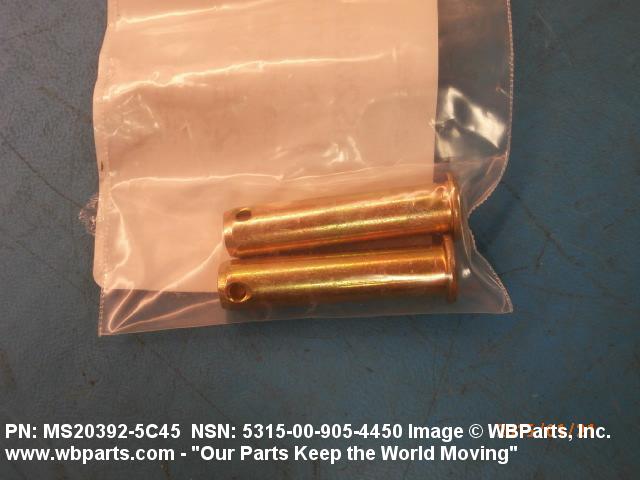

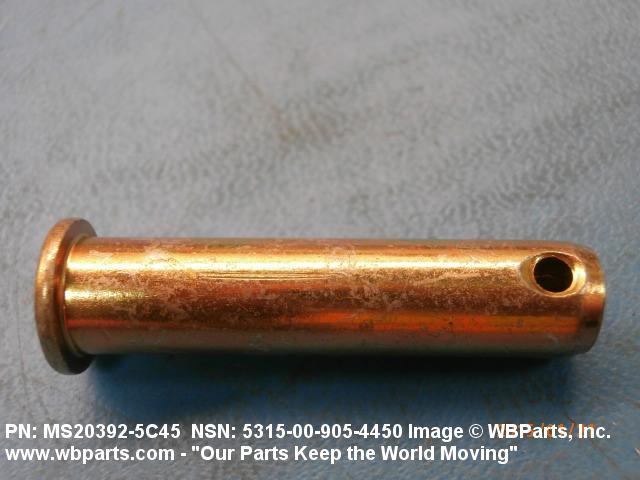

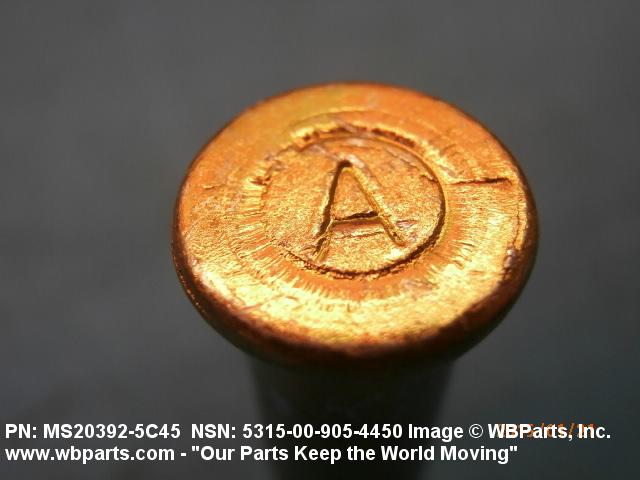

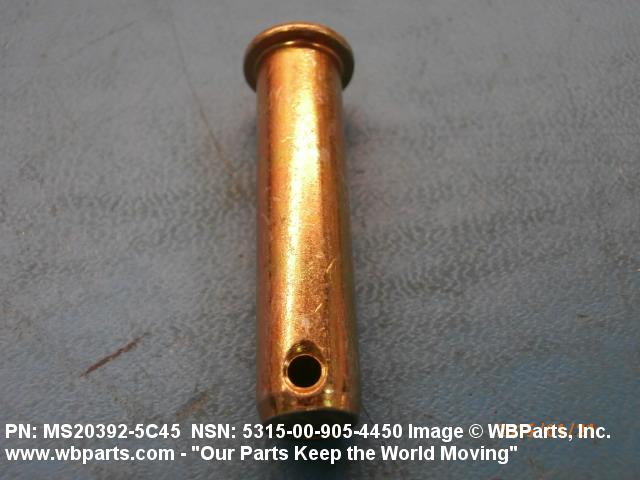

Drawings & Photos | NSN 5315-00-905-4450
Demand History | NSN 5315-00-905-4450
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NASM20392 | 2024-07-185 | 26 | US |
| 5315-00-905-4450 | 2024-02-37 | 3 | United Kingdom |
| MS203925C45 | 2017-12-362 | 18 | US |
| 5315-00-905-4450 | 2014-12-344 | 2 | United States |
| MS203925C45 | 2010-07-207 | 15 | United States |
| 5315-00-905-4450 | 2010-05-133 | 12 | United States |
| NASM20392 | 2010-04-106 | 350 | US |
| NASM20392 | 2006-12-348 | 5000 | US |
Cross Reference | NSN 5315-00-905-4450
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5315PL0891052 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| MS20392-5C45 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20392-5C45 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NASM20392 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-905-4450
Technical Data | NSN 5315-00-905-4450
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 16580 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.078 INCHES NOMINAL |

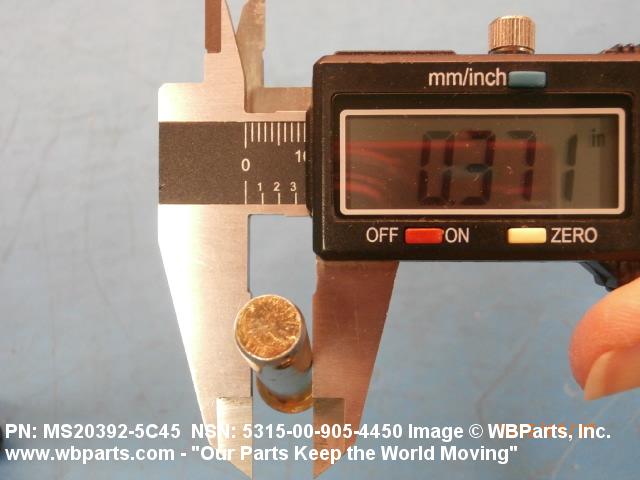

| DIAMETER | 0.371 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |

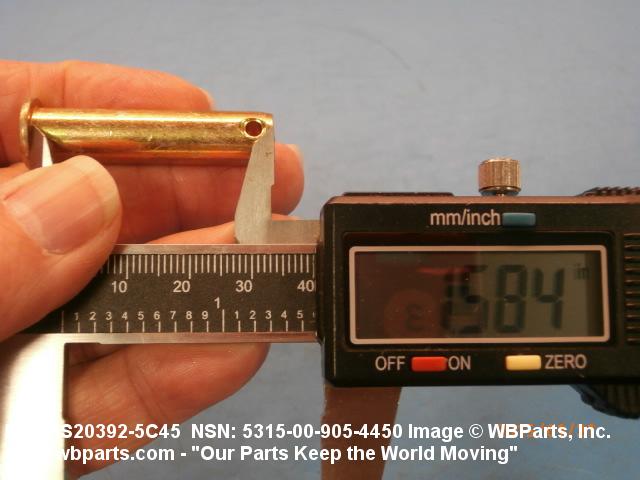

| UNDER HEAD LENGTH | 1.584 INCHES MINIMUM AND 1.604 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |

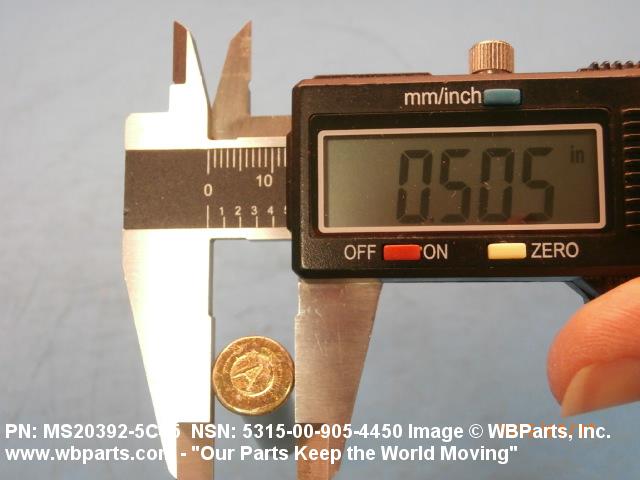

| PIN HEAD DIAMETER | 0.500 INCHES NOMINAL |

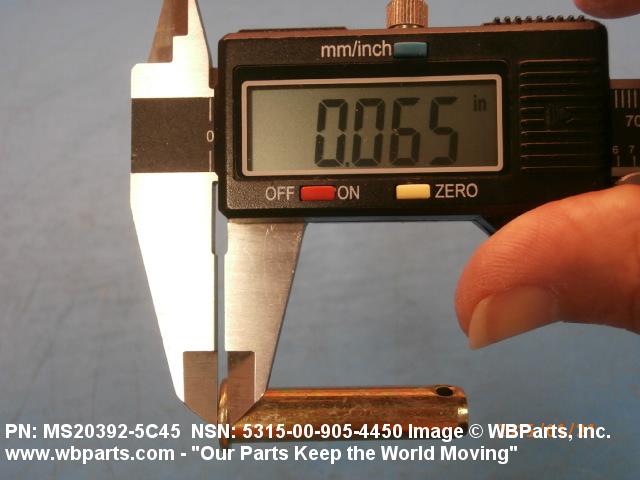

| HEIGHT | 0.062 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.116 INCHES MAXIMUM |

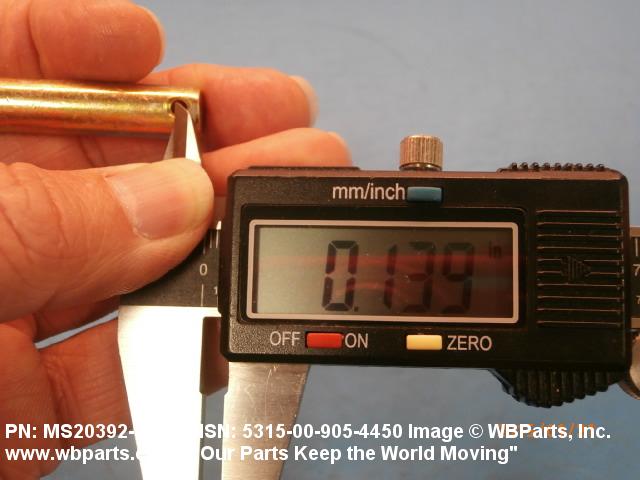

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.135 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-5C45 |
Restrictions/Controls & Freight Information | NSN 5315-00-905-4450
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
