NSN 5315-00-904-1673 MS17984415, MS17984-415, MS17984C415
Product Details | QUICK RELEASE PIN

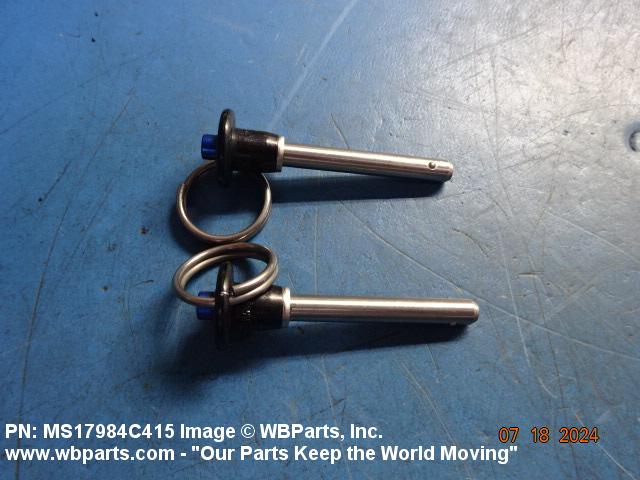

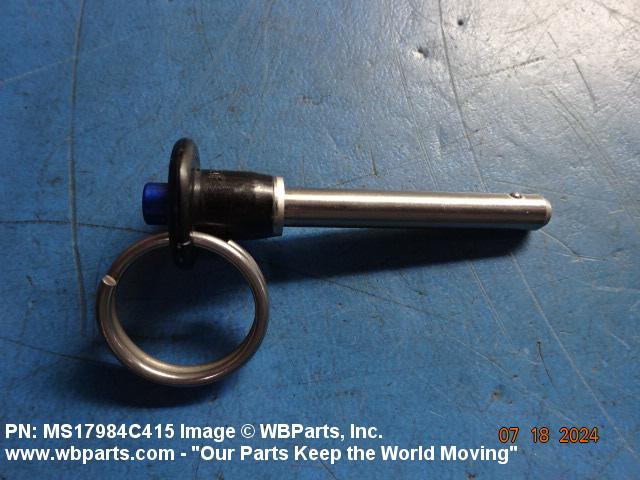

5315-00-904-1673 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17984415, MS17984-415, MS17984C415, NAS1334A3C15, SLC4AB15, BLC4B15S, BL-C4B15S, BLC4B15SM, LG4CB1500, LG4CB15M, TLB415C, 8850530, 5315-00-904-1673, 00-904-1673, 5315009041673, 009041673
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-904-1673 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-00-904-1673
Demand History | NSN 5315-00-904-1673
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BLC4B15S | 2024-07-191 | 1 | Japan |
| MS17984C415 | 2024-06-163 | 1 | Malaysia |
| 5315-00-904-1673 | 2023-01-23 | 8 | US |
| MS17984C415 | 2022-01-13 | 1 | US |
| MS17984C415 | 2019-12-353 | 100 | United States |
| 5315-00-904-1673 | 2019-11-326 | 4 | US |
| 5315-00-904-1673 | 2019-02-59 | 1 | DIBBS-RFPs |
| 5315-00-904-1673 | 2018-10-282 | 65 | US |
| MS17984C415 | 2017-05-124 | 1 | us |
| 5315-00-904-1673 | 2016-08-230 | 882 | DIBBS |
| 5315-00-904-1673 | 2013-01-15 | 3113 | DIBBS |
| MS17984415 | 2012-08-234 | 8 | United States |
| MS17984C415 | 2012-08-234 | 8 | United States |
| 5315-00-904-1673 | 2010-07-196 | 2 | United States |
| MS17984C415 | 2010-01-27 | 2 | United States |
| 5315-00-904-1673 | 2009-03-70 | 30 | US |
| 5315-00-904-1673 | 2008-08-239 | 2 | US |
| MS17984C415 | 2007-11-323 | 275 | US |
Cross Reference | NSN 5315-00-904-1673
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8850530 | 19203 | PICATINNY ARSENAL |
| BL-C4B15S | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| BLC4B15S | 84256 | AVIBANK MFG., INC. |
| BLC4B15SM | 84256 | AVIBANK MFG., INC. |
| LG4CB1500 | 62060 | SOUTHCO INC. |
| LG4CB1500 | 83014 | HARTWELL CORPORATION |
| LG4CB15M | 62060 | SOUTHCO INC. |
| LG4CB15M | 83014 | HARTWELL CORPORATION |
| MS17984-415 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17984C415 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17984C415 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17984C415 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1334A3C15 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SLC4AB15 | 16258 | SPACELOK INC. |
| TLB415C | 08844 | MARATHONNORCO AEROSPACE, INC. DBA NORCO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-904-1673
Related Products | NSN 5315-00-904-1673
Technical Data | NSN 5315-00-904-1673
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK MS 5643 ASSN STD SINGLE MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE |
| STYLE DESIGNATOR | Q243 BUTTON |
| SHANK DIAMETER | 0.2470 INCHES MINIMUM AND 0.2485 INCHES MAXIMUM |
| BUTTON HANDLE DIAMETER | 0.720 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| GRIP LENGTH | 1.500 INCHES MINIMUM AND 1.520 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 0.890 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.260 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK OR RING |
