Product Details | HEADLESS GROOVED PIN

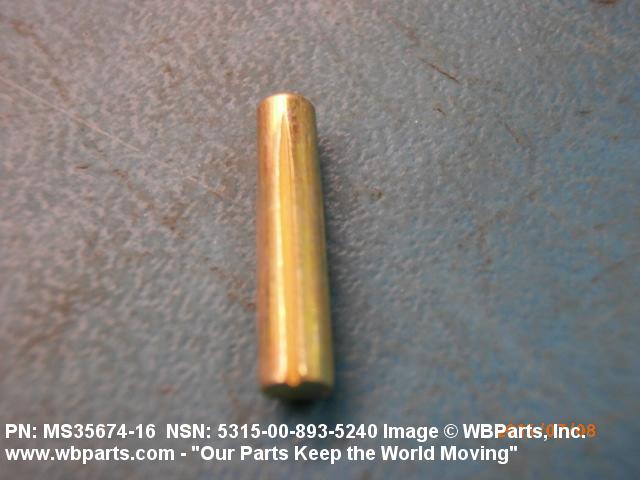

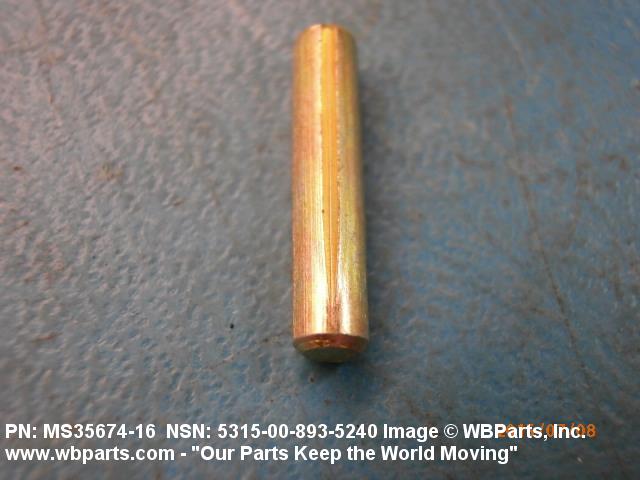

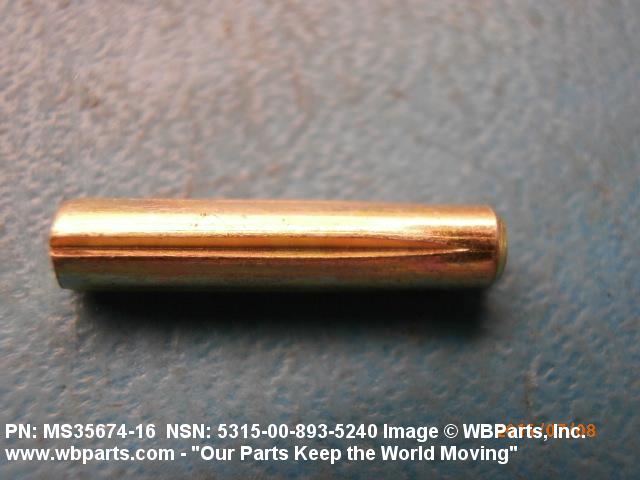

5315-00-893-5240 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: MS3567416, MS35674-16, 5315-00-893-5240, 00-893-5240, 5315008935240, 008935240
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-893-5240 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-00-893-5240
Demand History | NSN 5315-00-893-5240
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-893-5240 | 2021-09-252 | 50 | US |
| 5315-00-893-5240 | 2017-05-136 | 598 | DIBBS |
| 5315-00-893-5240 | 2016-11-321 | 515 | DIBBS |
| 5315-00-893-5240 | 2015-06-163 | 80 | United States |
Cross Reference | NSN 5315-00-893-5240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS35674-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-893-5240
Related Products | NSN 5315-00-893-5240
Technical Data | NSN 5315-00-893-5240
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP B1112 OR STEEL COMP 1212 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | F104 FULL LENGTH GROOVE |
| PILOT LENGTH | 0.0312 INCHES NOMINAL |

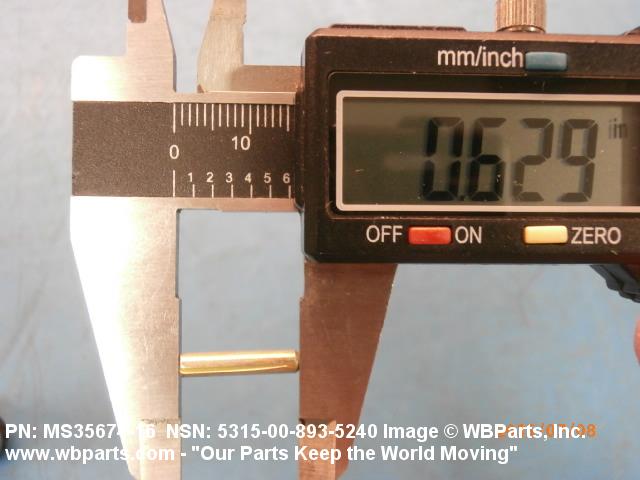

| OVERALL LENGTH | 0.625 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |

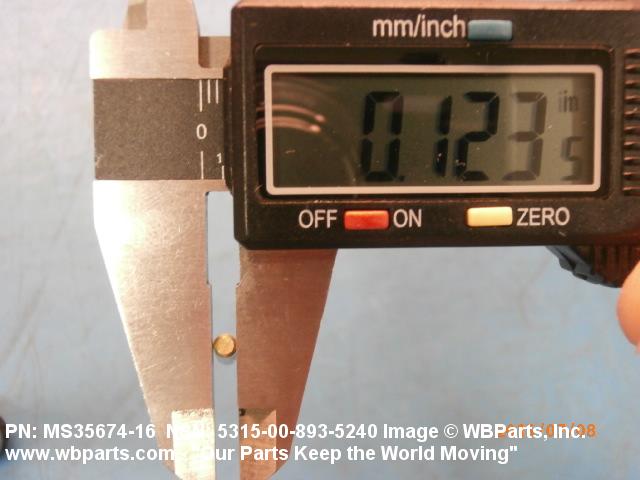

| PIN SMALL END DIAMETER | 0.1230 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |

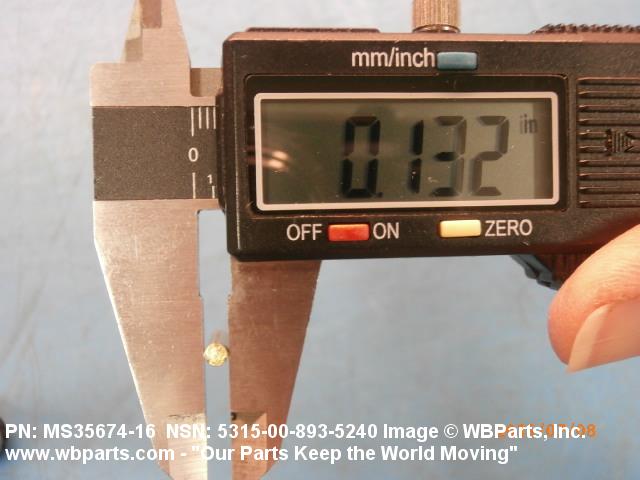

| PIN LARGE END DIAMETER | 0.132 INCHES MINIMUM AND 0.136 INCHES MAXIMUM |
| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | 0.1462 INCHES MINIMUM AND 0.1662 INCHES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35674-16 |
