Product Details | HEADED STRAIGHT PIN

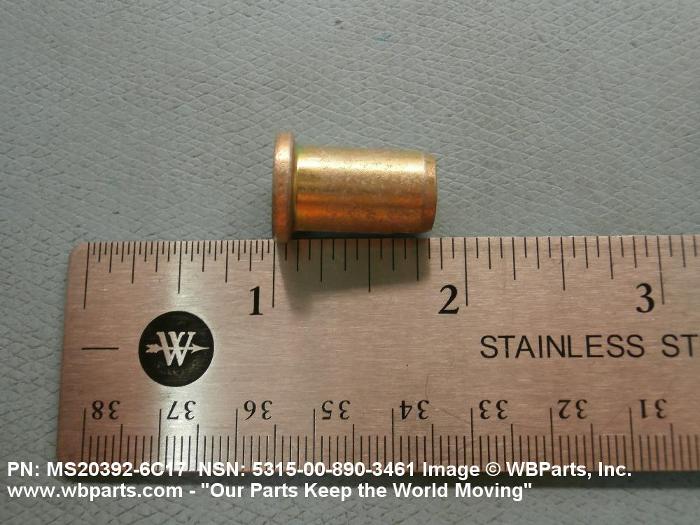

5315-00-890-3461 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203926C17, MS20392-6C17, 5315-00-890-3461, 00-890-3461, 5315008903461, 008903461
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 APR 1968 | 00-890-3461 | 02384 ( PIN, STRAIGHT, HEADED ) |

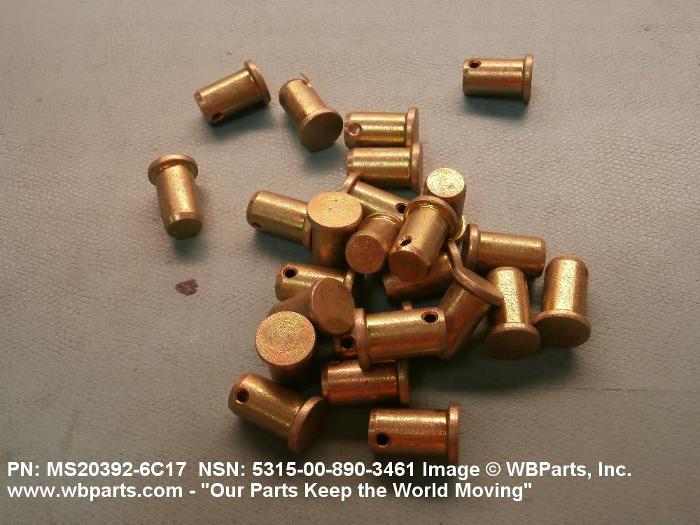

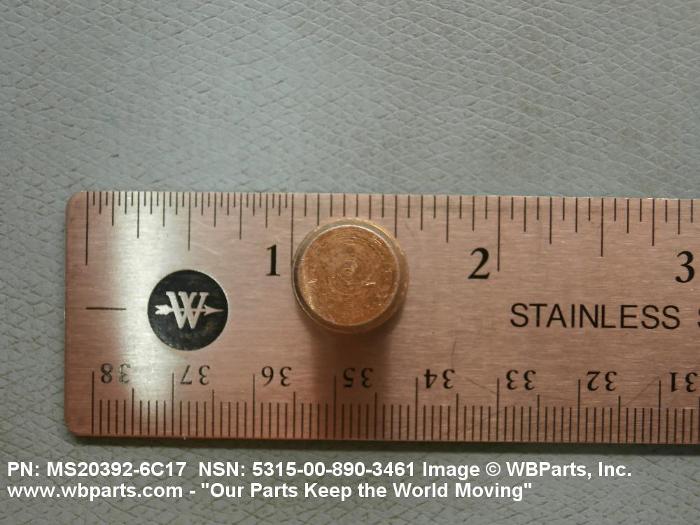

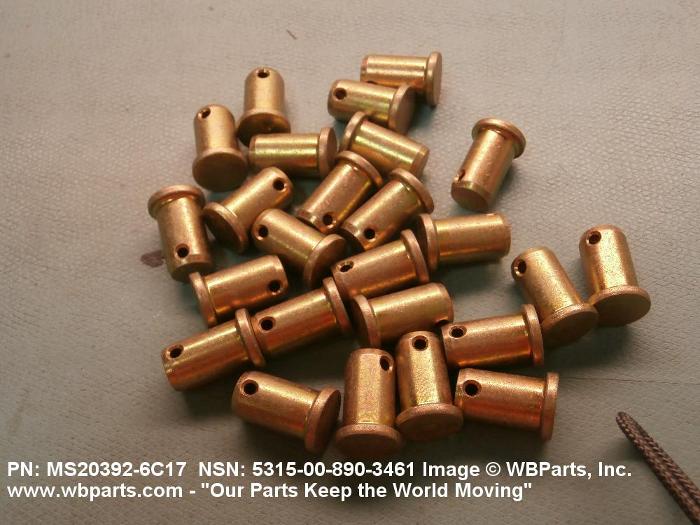

Drawings & Photos | NSN 5315-00-890-3461
Demand History | NSN 5315-00-890-3461
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS203926C17 | 2018-09-268 | 3 | United States |
| MS203926C17 | 2018-09-268 | 5 | United States |
| 5315-00-890-3461 | 2018-08-213 | 231 | DIBBS |
| 5315-00-890-3461 | 2018-07-205 | 231 | DIBBS |
| MS203926C17 | 2012-07-213 | 25 | United States |
Cross Reference | NSN 5315-00-890-3461
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20392-6C17 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-890-3461
Related Products | NSN 5315-00-890-3461
Technical Data | NSN 5315-00-890-3461
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-8695 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.078 INCHES NOMINAL |

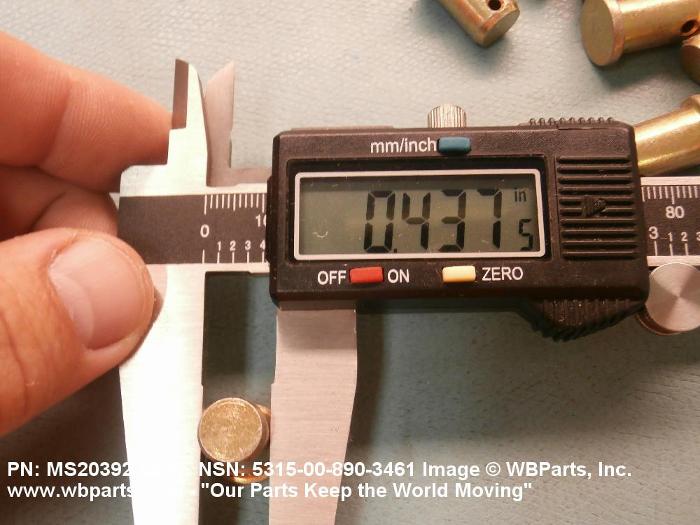

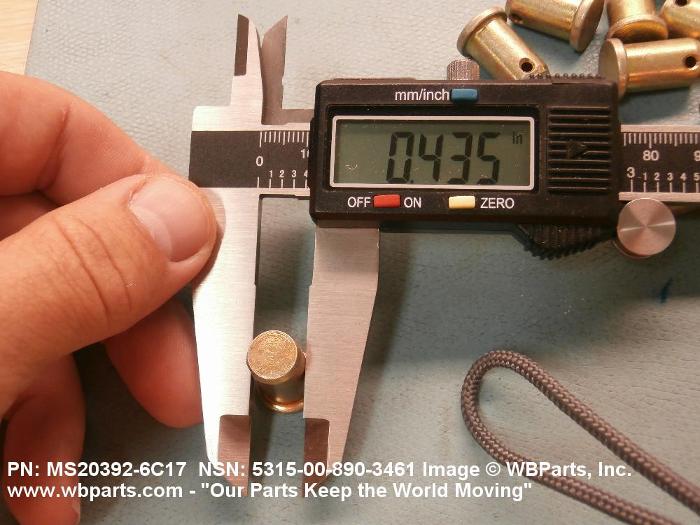

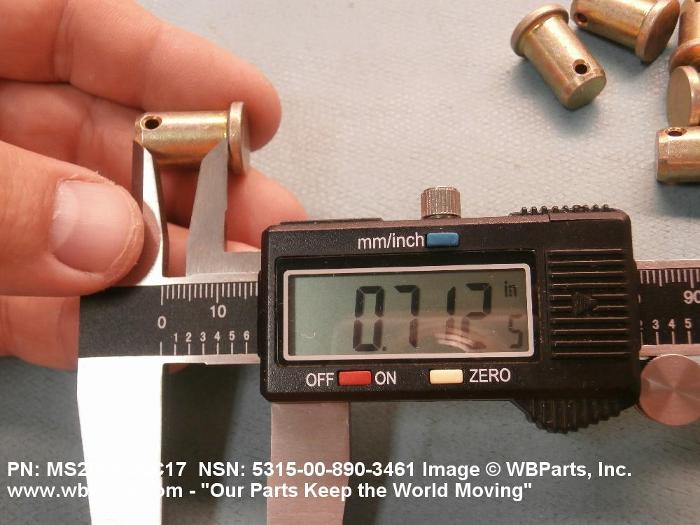

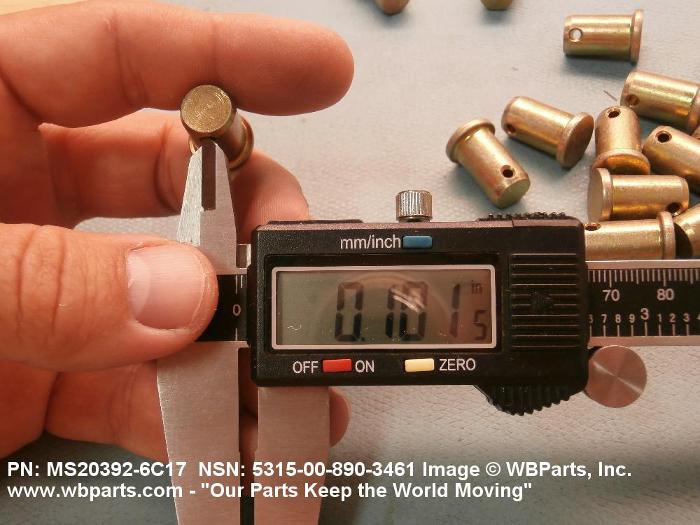

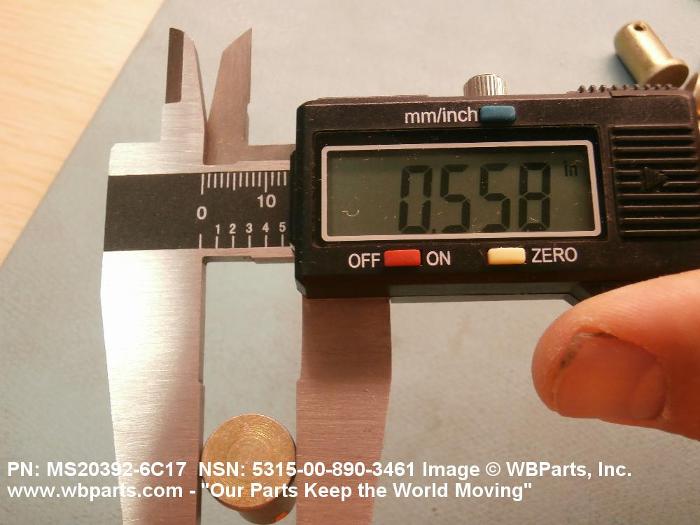

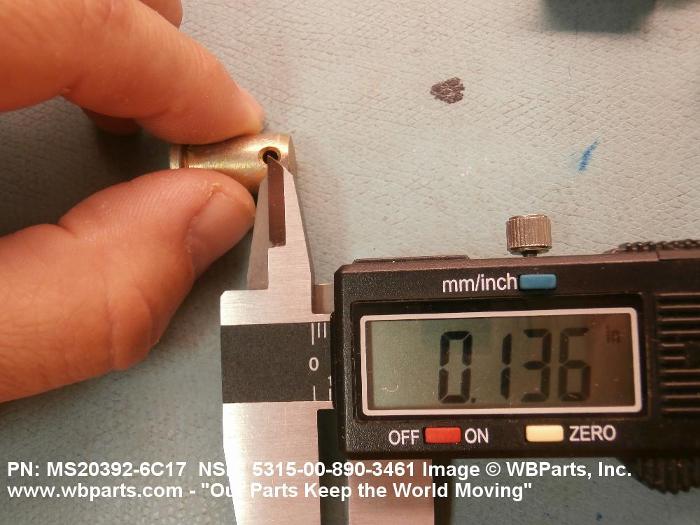

| DIAMETER | 0.434 INCHES MINIMUM AND 0.436 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.709 INCHES MINIMUM AND 0.729 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.562 INCHES NOMINAL |
| HEIGHT | 0.093 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.116 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.135 INCHES NOMINAL |
| SPECIAL FEATURES | SHANK END MAY HAVE A RADIUS 0.031 IN. IN LIEU OF CHAMFER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-6C17 |
