NSN 5315-00-853-4828 NAS1361C7C25D, BLC12R25D, LH12CR2500D
Product Details | QUICK RELEASE PIN
5315-00-853-4828 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: NAS1361C7C25D, BLC12R25D, LH12CR2500D, 5315-00-853-4828, 00-853-4828, 5315008534828, 008534828
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-853-4828 | 08323 ( PIN, QUICK RELEASE ) |

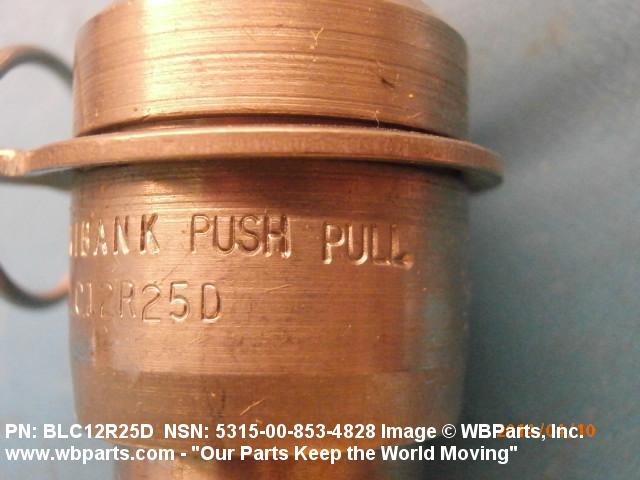

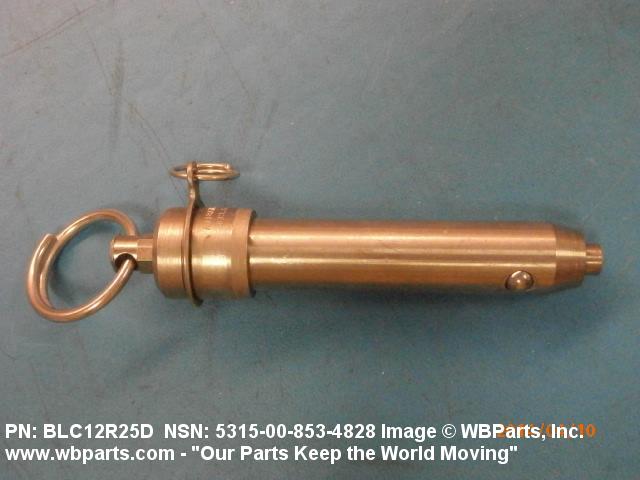

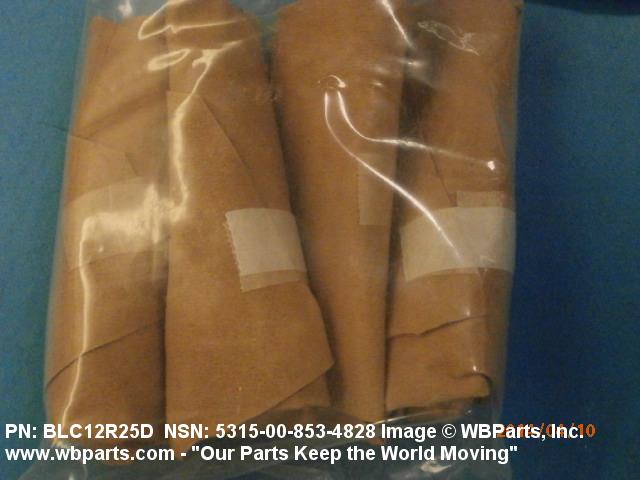

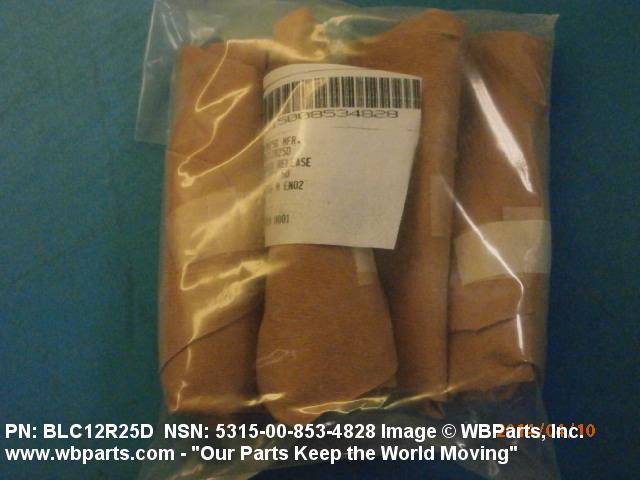

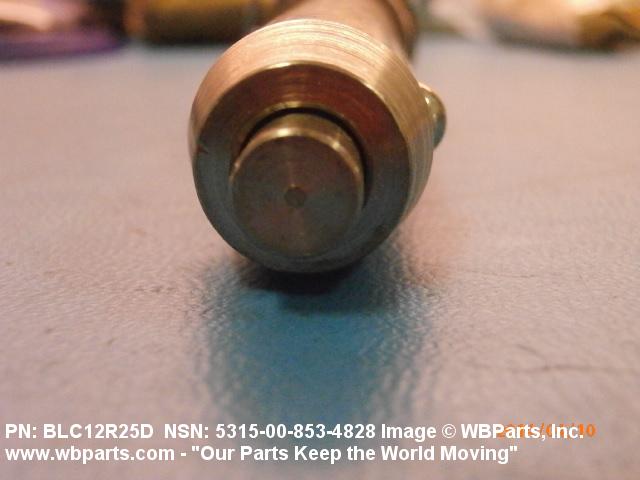

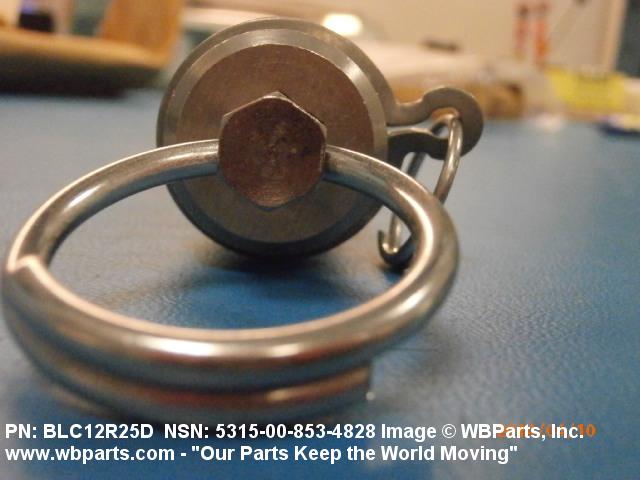

Drawings & Photos | NSN 5315-00-853-4828
Demand History | NSN 5315-00-853-4828
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-853-4828 | 2021-04-103 | 1 | United States |
| NAS1361C7C25D | 2021-04-99 | 1 | United States |
| NAS1361C7C25D | 2018-10-298 | 2 | United States |
| NAS1361C7C25D | 2018-03-73 | 2 | United States |
| 5315-00-853-4828 | 2017-08-222 | 1 | United States |
| 5315-00-853-4828 | 2016-10-278 | 4 | US |
| 5315-00-853-4828 | 2014-03-80 | 4 | United States |
| 5315-00-853-4828 | 2014-03-78 | 4 | United States |
| 5315-00-853-4828 | 2013-08-241 | 4 | United States |
| NAS1361C7C25D | 2013-08-241 | 4 | United States |
| NAS1361C7C25D | 2006-08-220 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-853-4828
Related Products | NSN 5315-00-853-4828
Technical Data | NSN 5315-00-853-4828
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 HEAD STEEL COMP 630 SHANK STEEL COMP 440C DETENT STEEL COMP 630 SPINDLE STEEL COMP 303 OR ALUMINUM ALLOY 2017 BUTTON STEEL COMP 302 OR STEEL COMP 631 RING STEEL COMP 631 OR STEEL COMP 302 SPRING |
| SURFACE TREATMENT | PASSIVATE HEAD PASSIVATE SHANK PASSIVATE DETENT PASSIVATE SPINDLE PASSIVATE OR ANODIZE BUTTON PASSIVATE RING PASSIVATE SPRING |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM DETENT 40.0 ROCKWELL C MINIMUM SPINDLE 40.0 ROCKWELL C MINIMUM SPRING |
| STYLE DESIGNATOR | Q247 RING HANDLE |

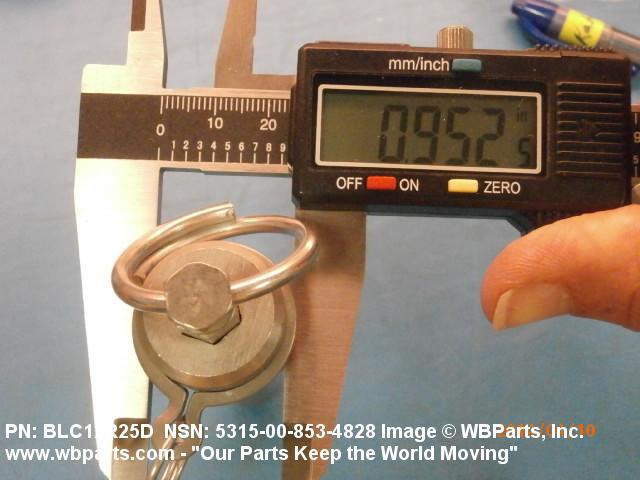

| HEAD DIAMETER | 0.890 INCHES MINIMUM AND 0.960 INCHES MAXIMUM |
| SHANK DIAMETER | 0.750 INCHES NOMINAL |

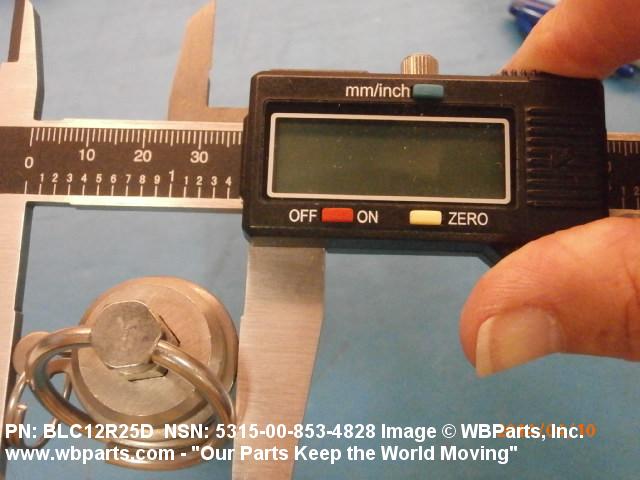

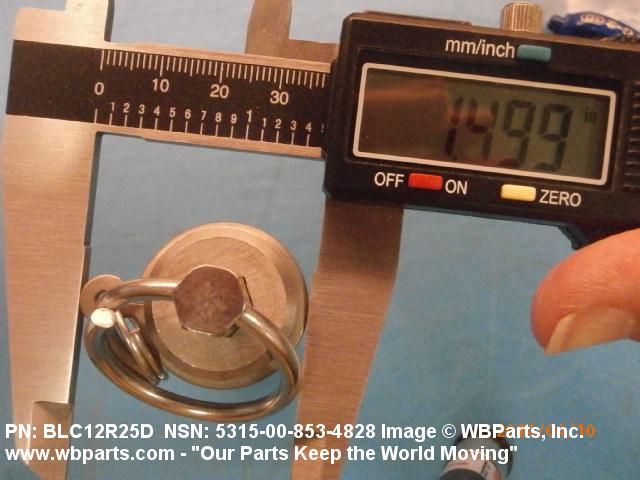

| RING HANDLE DIAMETER | 1.312 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |

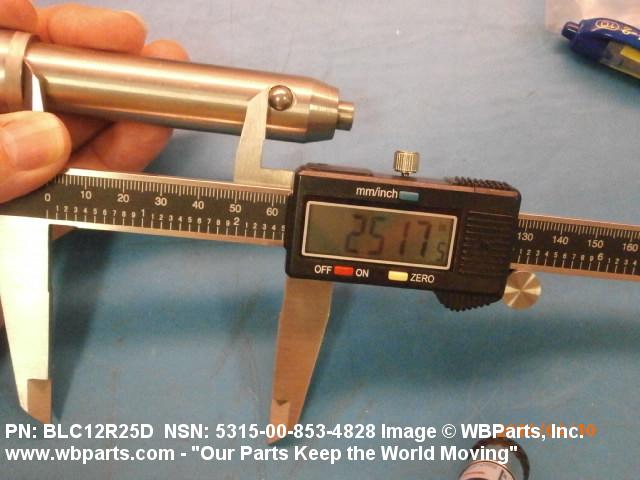

| GRIP LENGTH | 2.500 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 1.250 INCHES NOMINAL |

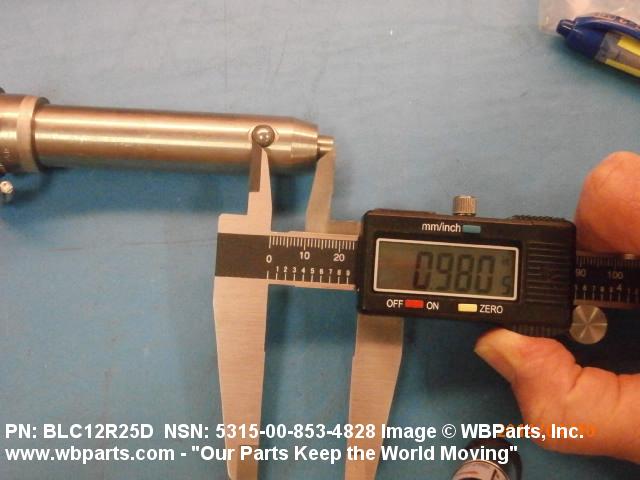

| DETENT TO TAPERED END DISTANCE | 1.000 INCHES NOMINAL |
| ACTUATION TYPE | PULL AND PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | RING |
| FEATURES PROVIDED | DRIVE OUT FEATURE |
Restrictions/Controls & Freight Information | NSN 5315-00-853-4828
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-853-4828
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
