Product Details | QUICK RELEASE PIN

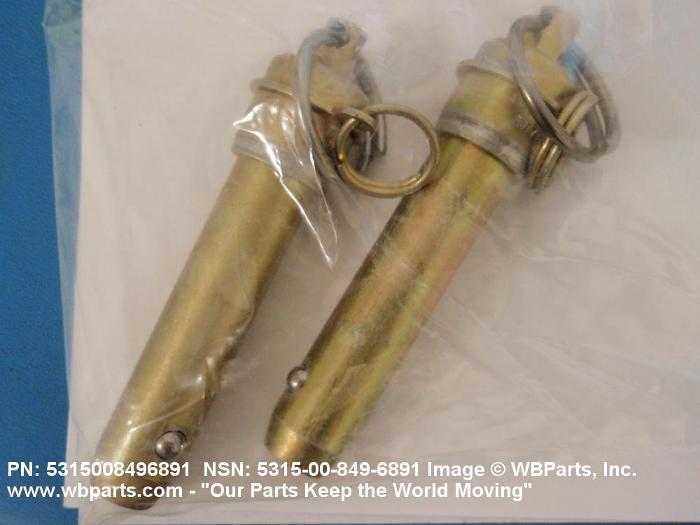

5315-00-849-6891 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: 5315-00-849-6891, 00-849-6891, 5315008496891, 008496891
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-849-6891 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-00-849-6891
Demand History | NSN 5315-00-849-6891
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-849-6891 | 2011-05-122 | 2 | United States |
| 5315-00-849-6891 | 2011-04-115 | 2 | United States |
Cross Reference | NSN 5315-00-849-6891
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DLS12R26N | 16258 | SPACELOK INC. |
| MS17990-1226 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17990-1226 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17990C1226 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17990C1226 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-849-6891
Technical Data | NSN 5315-00-849-6891
| Characteristic | Specifications |
|---|---|
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SPINDLE |
| STYLE DESIGNATOR | Q247 RING HANDLE |
| HEAD DIAMETER | 0.890 INCHES MINIMUM AND 0.960 INCHES MAXIMUM |
| SHANK DIAMETER | 0.7470 INCHES MINIMUM AND 0.7485 INCHES MAXIMUM |
| RING HANDLE DIAMETER | 1.312 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| GRIP LENGTH | 2.600 INCHES MINIMUM AND 2.620 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.250 INCHES MINIMUM |
| DETENT TO TAPERED END DISTANCE | 0.740 INCHES MINIMUM AND 0.790 INCHES MAXIMUM |
| ACTUATION TYPE | PULL AND PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK |
Restrictions/Controls & Freight Information | NSN 5315-00-849-6891
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
