NSN 5315-00-846-9902 MS21261R606, 00-846-9902, 008469902
Product Details | WOODRUFF KEY

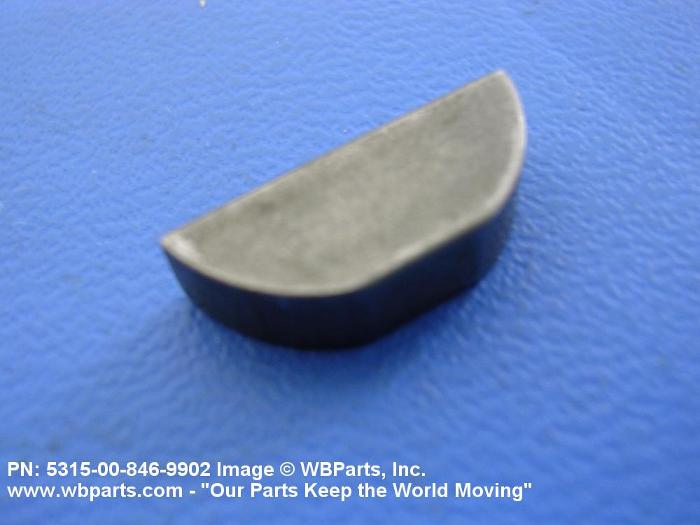

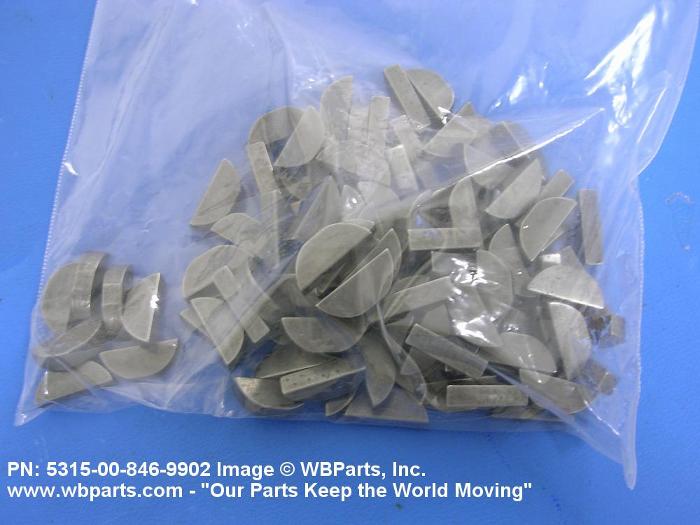

5315-00-846-9902 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.
Part Alternates: MS21261R606, 5315-00-846-9902, 00-846-9902, 5315008469902, 008469902
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-846-9902 | 02380 ( KEY, WOODRUFF ) |
Drawings & Photos | NSN 5315-00-846-9902
Demand History | NSN 5315-00-846-9902
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-846-9902 | 2008-07-198 | 100 | United States |
Cross Reference | NSN 5315-00-846-9902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21261R606 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-846-9902
Related Products | NSN 5315-00-846-9902
Technical Data | NSN 5315-00-846-9902
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8630 OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | C55 ROUND BOTTOM |
| CIRCLE DIAMETER | 0.750 INCHES NOMINAL |
| THICKNESS | 0.187 INCHES NOMINAL |
| KEY HEIGHT | 0.313 INCHES NOMINAL |
| STARTING EDGE SHAPE | CHAMFERED |
| KEY CHAMFER LENGTH | 0.040 INCHES NOMINAL |
| KEY CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| KEY SIZE DESIGNATION | WOODRUFF 9 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21261R606 |
Restrictions/Controls & Freight Information | NSN 5315-00-846-9902
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
