Product Details | HEADED STRAIGHT PIN
5315-00-840-1224 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 2803, 2-803, 5315-00-840-1224, 00-840-1224, 5315008401224, 008401224
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-840-1224 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-840-1224
Cross Reference | NSN 5315-00-840-1224
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-803 | 0W357 | PDI GROUND SUPPORT SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-840-1224
Related Products | NSN 5315-00-840-1224
Technical Data | NSN 5315-00-840-1224
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1040 OR STEEL COMP 1045 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 1040 ASSN STD 1ST MATERIAL RESPONSE AND SAE 1045 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.094 INCHES NOMINAL |
| DIAMETER | 1.125 INCHES NOMINAL |
| UNDER HEAD LENGTH | 3.937 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |

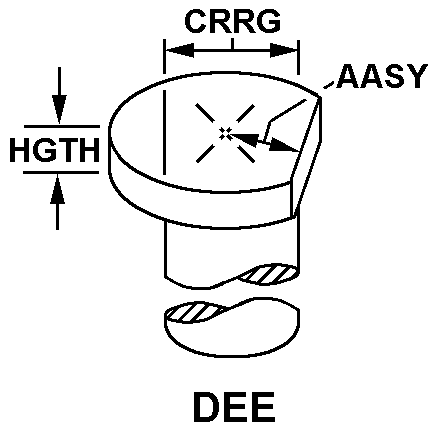

| HEAD STYLE | 6 DEE |
| DISTANCE FROM CENTERLINE TO FLAT | 0.562 INCHES NOMINAL |
| PIN HEAD DIAMETER | 1.500 INCHES NOMINAL |
| HEIGHT | 0.250 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.281 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.344 INCHES NOMINAL |
| MANUFACTURERS CODE | 0W357 |
| DESIGN CONTROL REFERENCE | 2-803 |
