NSN 5315-00-839-5226 5001237, 500-1237, 62/56199
Product Details | MACHINE KEY
5315-00-839-5226 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 5001237, 500-1237, 62/56199, 6256199, 5315-00-839-5226, 00-839-5226, 5315008395226, 008395226
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-839-5226 | 02378 ( KEY, MACHINE ) |

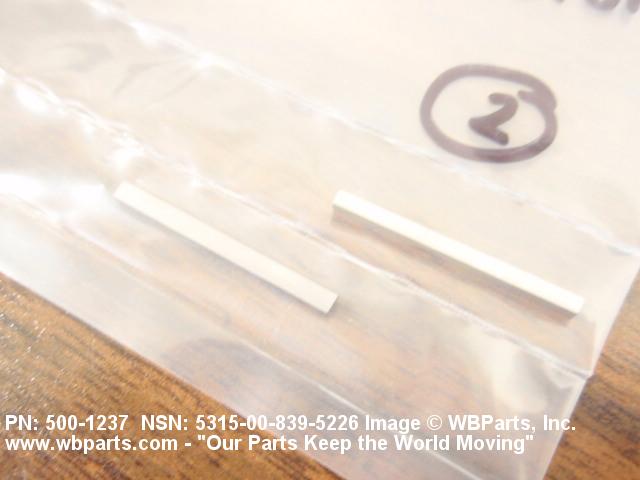

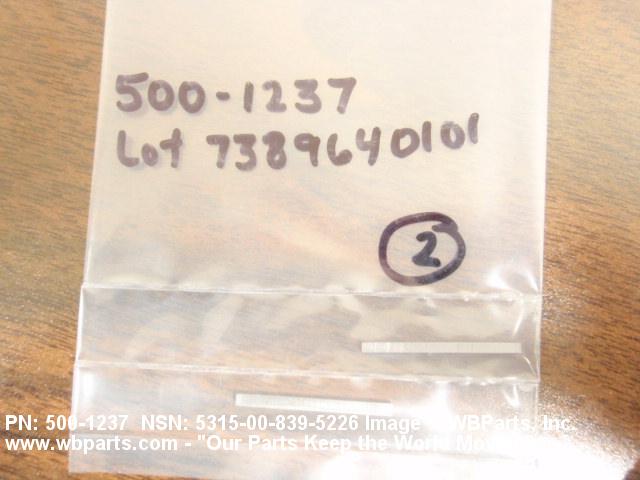

Drawings & Photos | NSN 5315-00-839-5226
Demand History | NSN 5315-00-839-5226
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 500-1237 | 2023-08-226 | 31 | DIBBS |
| 500-1237 | 2022-05-151 | 16 | DIBBS |
| 500-1237 | 2022-05-138 | 16 | DIBBS |
| 500-1237 | 2022-04-107 | 7 | DIBBS |
| 500-1237 | 2022-02-59 | 31 | DIBBS |
| 500-1237 | 2022-02-54 | 40 | DIBBS |
| 500-1237 | 2022-02-39 | 40 | DIBBS |
| 500-1237 | 2021-09-267 | 16 | DIBBS |
| 500-1237 | 2021-09-256 | 16 | DIBBS |
| 500-1237 | 2021-08-228 | 15 | DIBBS |
| 500-1237 | 2021-08-215 | 15 | DIBBS |
| 500-1237 | 2021-06-159 | 10 | DIBBS |
| 500-1237 | 2021-05-139 | 3 | DIBBS |
| 500-1237 | 2021-03-68 | 8 | DIBBS |
| 500-1237 | 2021-01-03 | 4 | DIBBS |
| 500-1237 | 2020-11-317 | 3 | DIBBS |
| 500-1237 | 2020-10-299 | 1 | DIBBS |
| 5315-00-839-5226 | 2010-11-323 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-839-5226
Technical Data | NSN 5315-00-839-5226
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | B15 PLAIN |
| OVERALL LENGTH | 0.985 INCHES MINIMUM AND 1.015 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.075 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| OVERALL WIDTH | 0.064 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
| MANUFACTURERS CODE | 10639 |
| DESIGN CONTROL REFERENCE | 500-1237 |
Restrictions/Controls & Freight Information | NSN 5315-00-839-5226
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-839-5226
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
