NSN 5315-00-839-5822 MS24665353, MS24665-353, AN38044

Product Details | COTTER PIN

5315-00-839-5822 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.

Part Alternates: MS24665353, MS24665-353, AN38044, AN380-4-4, D957828A14, D9578-28A14, EE42454, L645132, L6451-32, X1-16, XX0021148, XX002-1148, ZCP23, ZCP2-3, MT77, X116, 0103384, 1/8X1, 10341346 , 104947, 122-5588687 PC 16, 1225588687PC16, 13207E8525FN14, 13326416, 1332-6416, 13599009, 13599-009, 137185, 1386HX, 18X1, 1F416C, 2201V033, 2310489, 2735A, 31586, 3B4617, 424 067, 424067, 4360416G, 500BW36, 500-BW36, 51044, 5315PL0817376, 6140075139, 6-1-4007-5-139, 6140384164, 6-1-4038-4-164, 61404014134, 6-1-4040-14-134, 68019S, 68019-S, 70000353, 70000-353, 701-4323695 SH 2 PC 36, 7014323695SH2PC36, 701-4401976 SH, 7014401976SH, 701-6776800 SH 6 PC 21, 7016776800SH6PC21, 72035S7, 7690051610, 7-690-051610 , 86305216, 8630-52-16, 91100570, 940.17.02.263, 9401702263, 9431604, 5315-00-839-5822, 00-839-5822, 5315000137185, 5315008395822 , 008395822

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-839-5822	02381 ( PIN, COTTER )

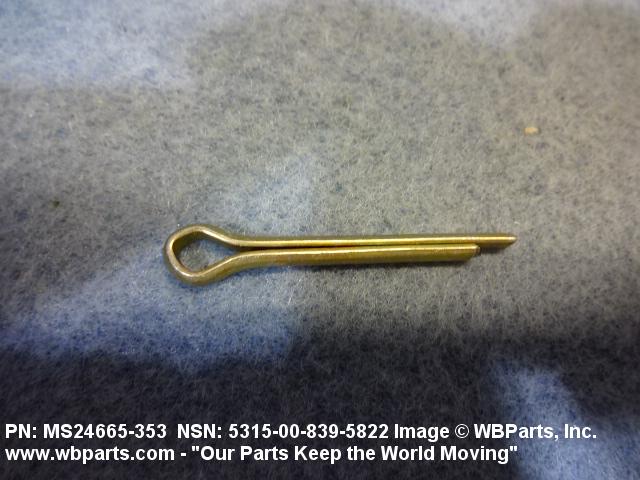

Drawings & Photos | NSN 5315-00-839-5822

Part Number	Request Date	QTY	Origin
MS24665353	2023-10-276	200	TR
MS24665353	2023-06-165	50	us
MS24665353	2022-05-126	50	CN
MS24665-353	2022-01-06	100	IN
MS24665-353	2022-01-06	100	IN
MS24665-353	2022-01-06	100	IN
5315-00-839-5822	2021-03-62	5	Malaysia
MS24665-353	2020-05-147	1000	US
MS24665353	2020-01-14	35	United States
MS24665-353	2020-01-14	35	United States
5315-00-839-5822	2019-03-74	100	MANUAL
MS24665-353	2019-03-74	100	Canada
MS24665353	2018-09-269	108	United States
5315-00-839-5822	2018-08-225	14847	DIBBS
5315-00-839-5822	2018-08-217	14847	DIBBS
MS24665353	2015-12-342	11	Canada
MS24665353	2013-10-283	190	United States
5315-00-839-5822	2012-04-104	60	MANUAL
MS24665353	2011-11-308	800	United States
MS24665353	2011-09-245	5	IN
5315-00-839-5822	2011-06-155	60	MANUAL
5315-00-839-5822	2011-06-155	60	MANUAL
MS24665-353	2011-06-155	60	PK
MS24665-353	2011-06-155	60	PK
5315-00-839-5822	2011-01-12	200	US
MS24665353	2010-10-286	255	US
5315-00-839-5822	2010-06-172	40	United States
5315-00-839-5822	2010-04-111	2700	DIBBS
5315-00-839-5822	2009-12-344	1953	DIBBS
5315-00-839-5822	2008-12-340	40	Philippines

Cross Reference | NSN 5315-00-839-5822

Part Number	Cage Code	Manufacturer
0103384	80195	E D ETNYRE & CO DBA EDETNYRE
1/8X1	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
104947	61465	GARWOOD/FELLER INC GARWOOD WINCH DIV
122-5588687 PC 16	53711	NAVAL SEA SYSTEMS COMMAND
13207E8525FN14	97403	CECOM LR CENTER
1332-6416	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
13599-009	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
13599-009	D2638	EME ELEKTRO-METALL EXPORT GMBH
137185	0SAT8	KOMATSU AMERICA CORP.
137185	11743	CHECKER MOTORS CORPORATION
137185	12204	DAIMLER CHRYSLER
137185	24617	GENERAL MOTORS CORP
137185	29510	KOMATSU AMERICAN INTL CO
137185	56442	DIAMOND REO TRUCK CO
137185	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
137185	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
1386HX	45152	OSHKOSH CORPORATION
1386HX	75Q65	OSHKOSH DEFENSE, LLC
1F416C	12603	CLARK EQUIPMENT CO
2201V033	27315	MORRIS MATERIAL HANDLING, INC.
2310489	001JK	EMBRAER S/A
2310489	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
2735A	96787	STEWART AVIONICS INC
31586	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
3B4617	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
424 067	77294	PIPER AIRCRAFT INC.
4360416G	58275	SASCO INC CANADIAN DIV
500-BW36	58501	RHINE AIR, INC
51044	34623	AM GENERAL, LLC
5315000137185	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5315008395822	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5315PL0817376	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
6-1-4007-5-139	81337	ARMY, UNITED STATES DEPARTMENT OF THE
6-1-4038-4-164	81337	ARMY, UNITED STATES DEPARTMENT OF THE
6-1-4040-14-134	81337	ARMY, UNITED STATES DEPARTMENT OF THE
68019-S	57328	BAUER COMPRESSORS, INC.
7-690-051610	12361	GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP
70000-353	95097	LITTLE GIANT CRANE AND SHOVEL INC
701-4323695 SH 2 PC 36	53711	NAVAL SEA SYSTEMS COMMAND
701-4401976 SH	53711	NAVAL SEA SYSTEMS COMMAND
701-6776800 SH 6 PC 21	53711	NAVAL SEA SYSTEMS COMMAND
72035S7	23040	FORD MOTOR CO FORD PARTS AND SERVICE DIV
72035S7	57526	FORD MOTOR CO
8630-52-16	81336	CHIEF OF ENGINEERS DEPT OF ARMY
91100570	82796	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE
940.17.02.263	S4080	PILATUS AIRCRAFT LTD
9431604	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
AN380-4-4	80059	JOINT AIRCRAFT COMMITTEE
AN380-4-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
D9578-28A14	91340	MET-PRO CORPORATION
EE42454	45152	OSHKOSH CORPORATION
L6451-32	46717	PETTIBONE LLC
MS24665-353	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24665-353	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MT77	26051	GREAT AMERICAN INDUSTRIES INC
X1-16	66289	WISCONSIN MOTORS LLC
XX002-1148	H2229	RDM TECHNOLOGY B.V.
ZCP2-3	80195	E D ETNYRE & CO DBA EDETNYRE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-839-5822

Compare

Related Products | NSN 5315-00-839-5822

5315-00-839-5920, 5315-00-839-6286, 5315-00-839-6926, 5315-00-839-7136, 5315-00-839-7139

Technical Data | NSN 5315-00-839-5822

Characteristic	Specifications
MATERIAL	STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1020 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	A1 STANDARD

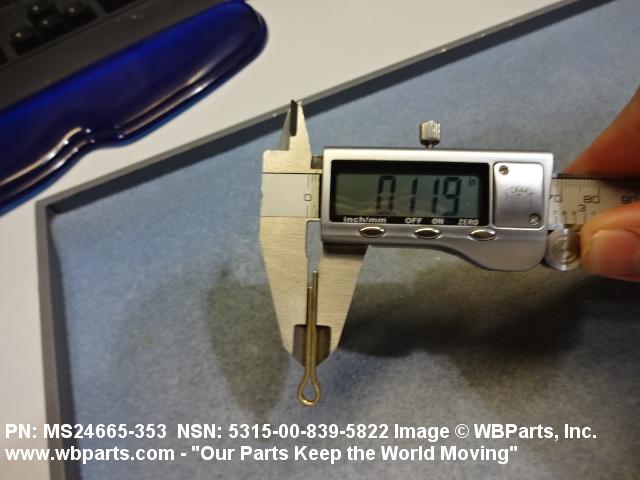

DIAMETER	0.116 INCHES MINIMUM AND 0.120 INCHES MAXIMUM

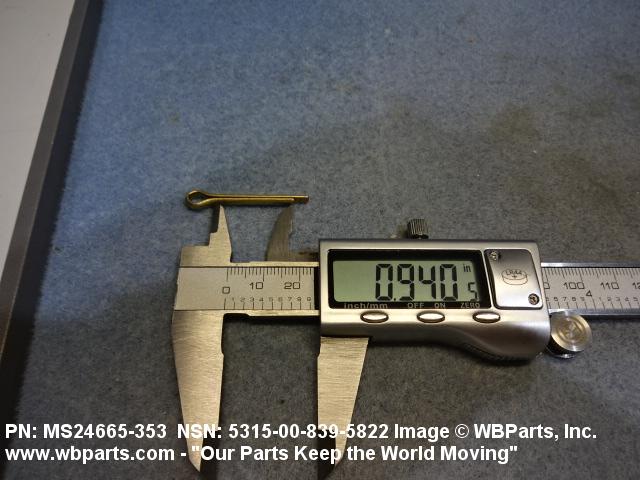

UNDERLOOP LENGTH	0.938 INCHES MINIMUM AND 1.125 INCHES MAXIMUM
POINT TYPE	EXTENDED PRONG SQUARE CUT

Restrictions/Controls & Freight Information | NSN 5315-00-839-5822

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	094380	COTTER PINS/SPRING COTTERS IRON
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-839-5822

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	QS	TG:AIRCRAFT GROUND SERVICES EQUIPMENT
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
