Product Details | HEADED STRAIGHT PIN
5315-00-788-7463 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 10887516, 5315-00-788-7463, 00-788-7463, 5315007887463, 007887463
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-788-7463 | 02384 ( PIN, STRAIGHT, HEADED ) |

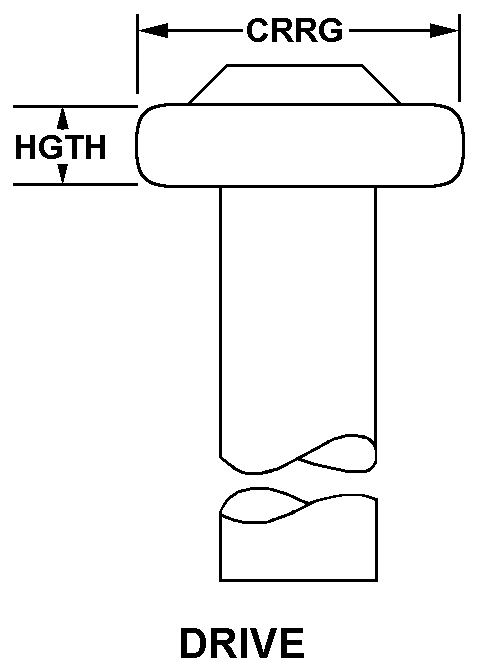

Drawings & Photos | NSN 5315-00-788-7463
Demand History | NSN 5315-00-788-7463
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-788-7463 | 2011-12-341 | 200 | DIBBS |
| 5315-00-788-7463 | 2011-02-45 | 46 | DIBBS |
| 5315-00-788-7463 | 2010-05-125 | 1 | DIBBS |
| 5315-00-788-7463 | 2010-05-125 | 2 | DIBBS |
| 5315-00-788-7463 | 2010-05-125 | 3 | DIBBS |
| 5315-00-788-7463 | 2010-03-87 | 1 | DIBBS |
| 5315-00-788-7463 | 2010-03-87 | 2 | DIBBS |
| 5315-00-788-7463 | 2010-03-87 | 3 | DIBBS |
| 5315-00-788-7463 | 2009-01-07 | 20 | DIBBS |
| 5315-00-788-7463 | 2008-11-319 | 3 | DIBBS |
| 5315-00-788-7463 | 2008-08-239 | 46 | DIBBS |
| 5315-00-788-7463 | 2008-08-238 | 46 | DIBBS |
Cross Reference | NSN 5315-00-788-7463
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10887516 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
