5315-00-770-3319 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.

Part Alternates: 7823101, 782310-1, 5315-00-770-3319, 00-770-3319, 5315007703319, 007703319

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-770-3319

Drawings & Photos | NSN 5315-00-770-3319


Cross Reference | NSN 5315-00-770-3319

Part Number Cage Code Manufacturer
782310-1 98897 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-770-3319

Technical Data | NSN 5315-00-770-3319

Characteristic Specifications
MATERIAL STEEL COMP 302 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR L193 STRAIGHT
CHAMFER LENGTH 0.060 INCHES MINIMUM AND 0.150 INCHES MAXIMUM
DIAMETER 0.086 INCHES NOMINAL
UNDER HEAD LENGTH 30.917 INCHES NOMINAL
PIN CHAMFER ANGLE ANY ACCEPTABLE

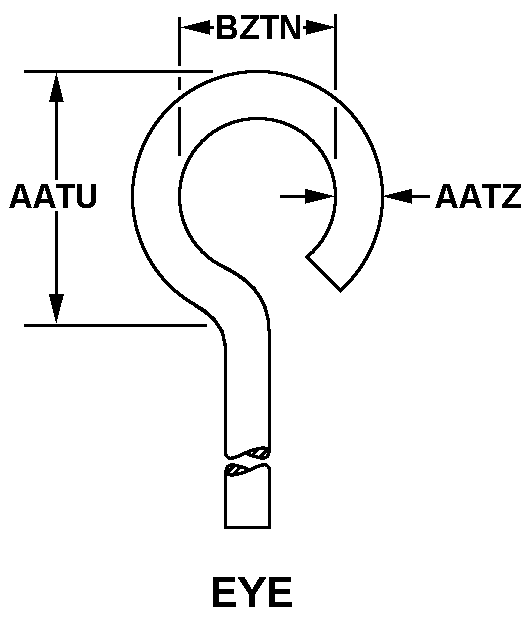

HEAD STYLE 71 EYE
EYE LENGTH 0.392 INCHES NOMINAL
EYE STOCK DIAMETER 0.086 INCHES NOMINAL
LOOP INSIDE DIAMETER 0.220 INCHES NOMINAL
