NSN 5315-00-614-7217 6147217, 00-614-7217, 006147217
Product Details | HEADLESS GROOVED PIN
5315-00-614-7217 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 6147217, 5315-00-614-7217, 00-614-7217, 5315006147217, 006147217
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-614-7217 | 02386 ( PIN, GROOVED, HEADLESS ) |

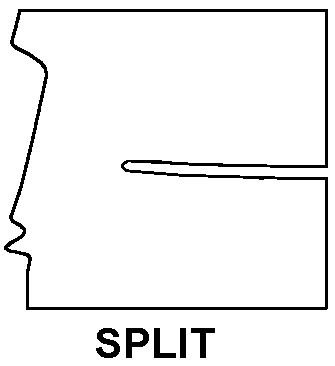

Drawings & Photos | NSN 5315-00-614-7217
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-614-7217
Technical Data | NSN 5315-00-614-7217
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| HARDNESS RATING | 70.9 ROCKWELL A MINIMUM AND 74.1 ROCKWELL A MAXIMUM OVERALL |
| STYLE DESIGNATOR | F118 GROOVE |
| OVERALL LENGTH | 3.344 INCHES NOMINAL |
| DIAMETER | 0.155 INCHES MINIMUM AND 0.156 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 3.244 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.100 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.050 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 10 SPLIT |
| FIRST END LOCATION | GROOVED END |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| SPECIAL FEATURES | SHANK END SPLIT 0.625INLG,0.031IN W,BEND TO 0.177IN.DIA. |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 6147217 |
Restrictions/Controls & Freight Information | NSN 5315-00-614-7217
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
