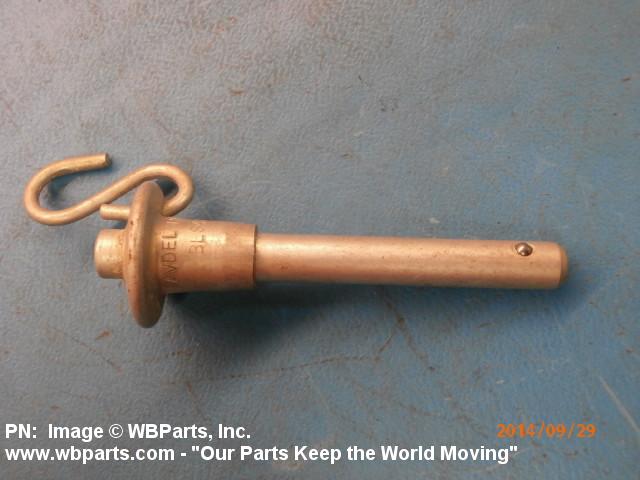

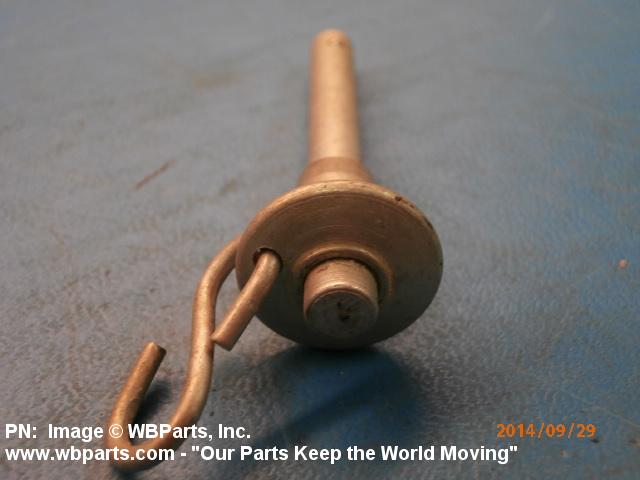

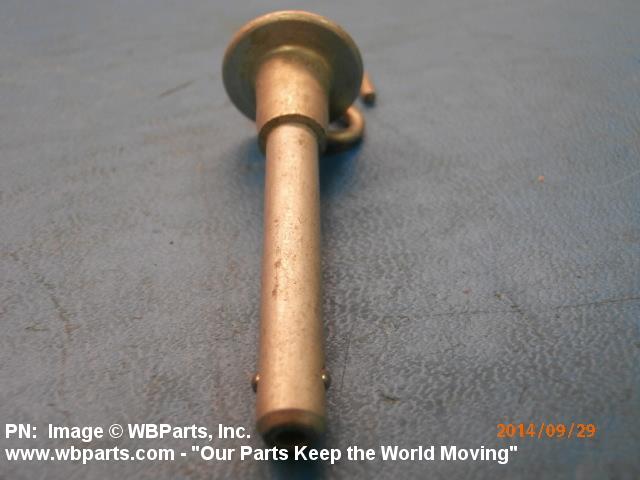

5315-00-593-4323 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: BLS4B13S, 5440413BR, 5440-4-13BR, 5315-00-593-4323, 00-593-4323, 5315005934323, 005934323

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-593-4323

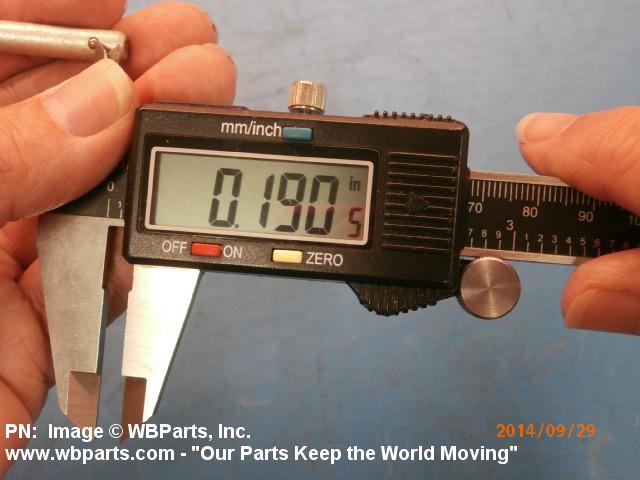

Drawings & Photos | NSN 5315-00-593-4323


Demand History | NSN 5315-00-593-4323

Part Number Request Date QTY Origin
BLS4B13S 2014-09-267 1 United States

Cross Reference | NSN 5315-00-593-4323

Part Number Cage Code Manufacturer
5440-4-13BR 84256 AVIBANK MFG., INC.
BLS4B13S 84256 AVIBANK MFG., INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-593-4323

Technical Data | NSN 5315-00-593-4323

Characteristic Specifications
MATERIAL STEEL COMP 4130 SHANK STEEL COMP 4130 SPINDLE
MATERIAL DOCUMENT AND CLASSIFICATION MIL-T-6736 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHANK MIL-S-6736 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SPINDLE
SURFACE TREATMENT CADMIUM AND CHROMATE SHANK CADMIUM AND CHROMATE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
HARDNESS RATING 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SPINDLE

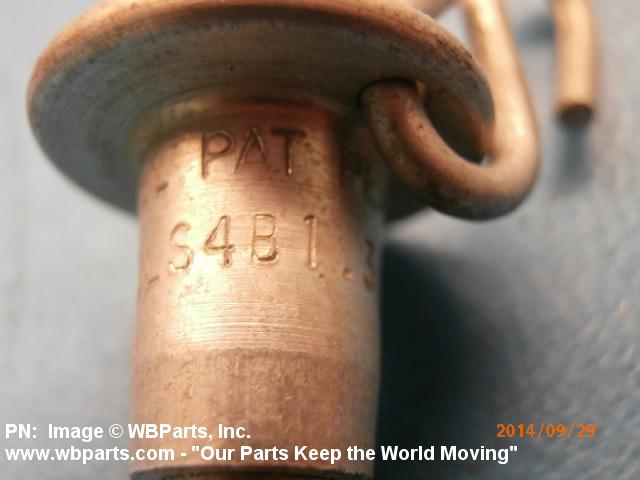

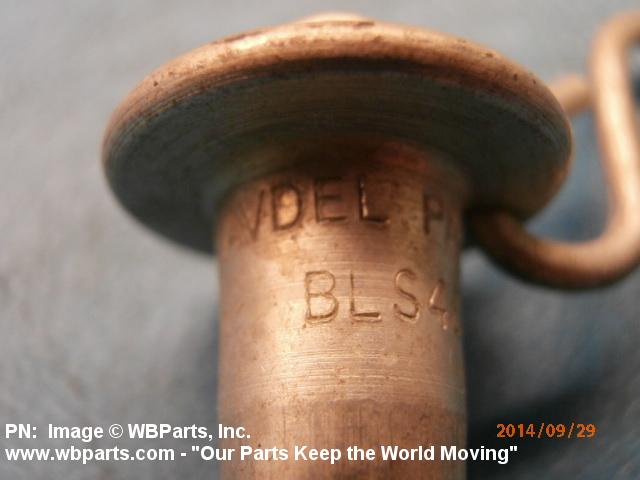

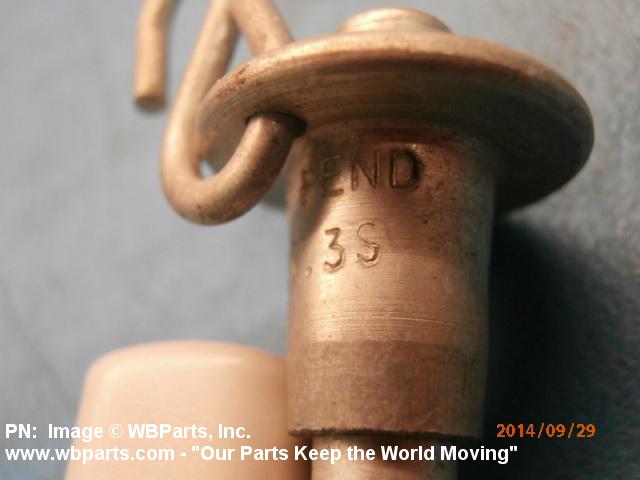

STYLE DESIGNATOR Q243 BUTTON

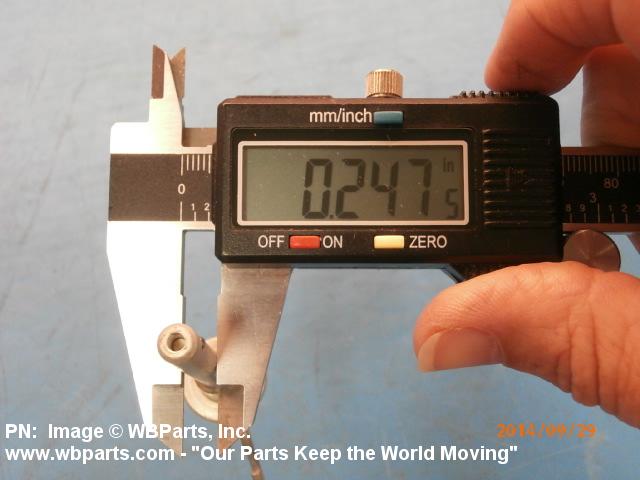

SHANK DIAMETER 0.2470 INCHES MINIMUM AND 0.2485 INCHES MAXIMUM

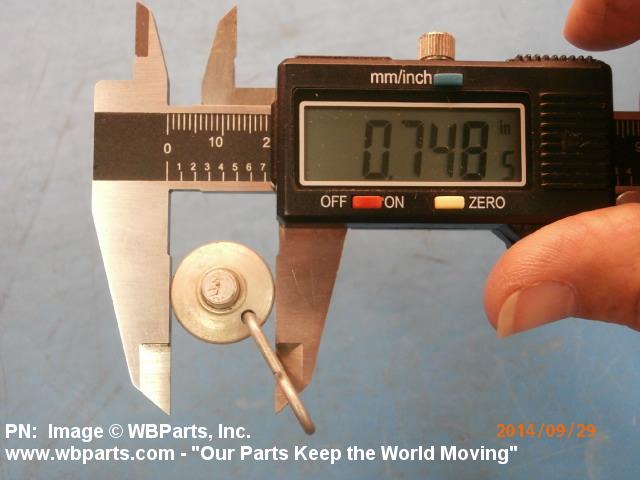

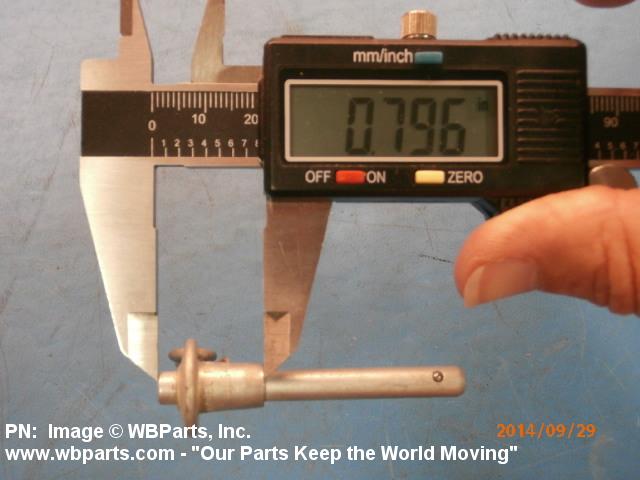

BUTTON HANDLE DIAMETER 0.720 INCHES MINIMUM AND 0.800 INCHES MAXIMUM

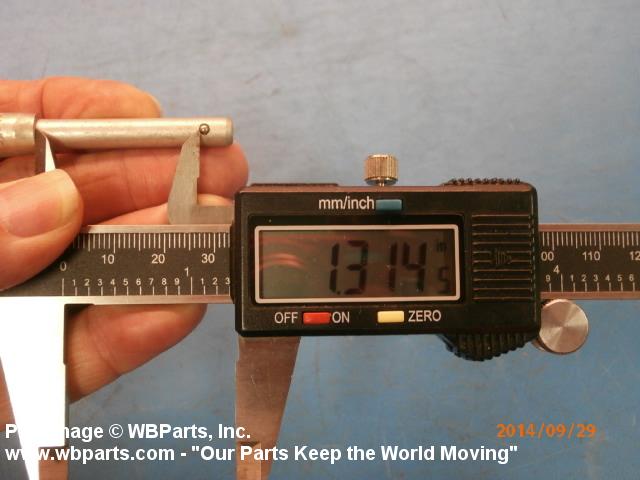

GRIP LENGTH 1.300 INCHES MINIMUM AND 1.320 INCHES MAXIMUM
SHOULDER TO HEAD END DISTANCE 0.890 INCHES MAXIMUM
DETENT TO TAPERED END DISTANCE 0.290 INCHES MAXIMUM
ACTUATION TYPE PUSH
ACTUATION METHOD PUSH BUTTON
DETENT QUANTITY 2
PIN ATTACHMENT TYPE LINK
MANUFACTURERS CODE 84256
DESIGN CONTROL REFERENCE BLS4B13S
