Product Details | HEADED STRAIGHT PIN
5315-00-584-9449 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 8100909, 5315-00-584-9449, 00-584-9449, 5315005849449, 005849449
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-9449 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-584-9449
Cross Reference | NSN 5315-00-584-9449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8100909 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-584-9449
Technical Data | NSN 5315-00-584-9449
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.062 INCHES NOMINAL |
| DIAMETER | 0.248 INCHES NOMINAL |
| UNDER HEAD LENGTH | 0.547 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |

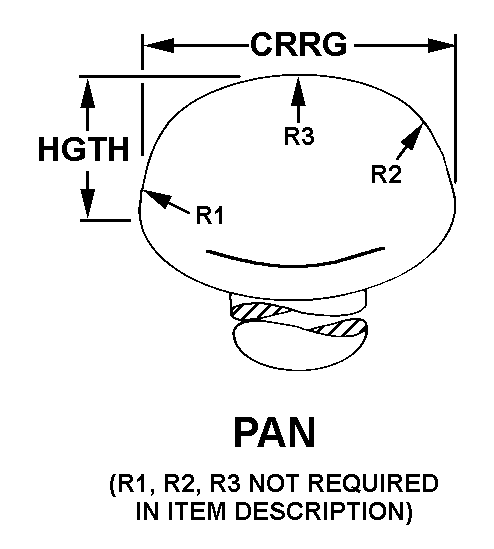

| HEAD STYLE | 33 PAN |
| PIN HEAD DIAMETER | 0.375 INCHES NOMINAL |
| HEIGHT | 0.062 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.076 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.109 INCHES NOMINAL |
