NSN 5315-00-485-2270 MS179871241, MS17987-1241, SLS12R41
Product Details | QUICK RELEASE PIN

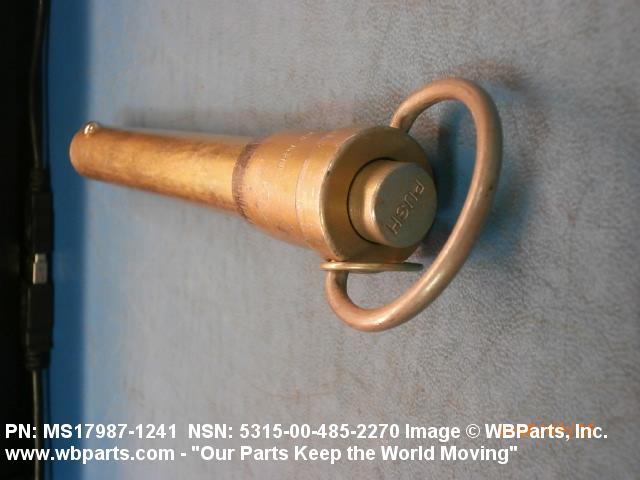

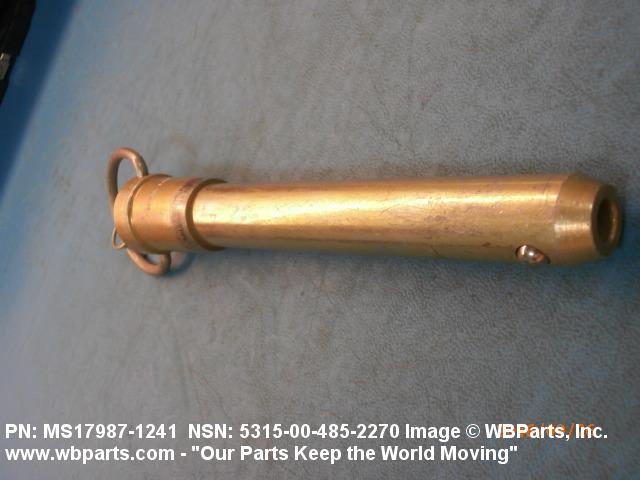

5315-00-485-2270 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS179871241, MS17987-1241, SLS12R41, BLS12R1S, LG12SR4100, 5315-00-485-2270, 00-485-2270, 5315004852270, 004852270
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUN 1969 | 00-485-2270 | 08323 ( PIN, QUICK RELEASE ) |

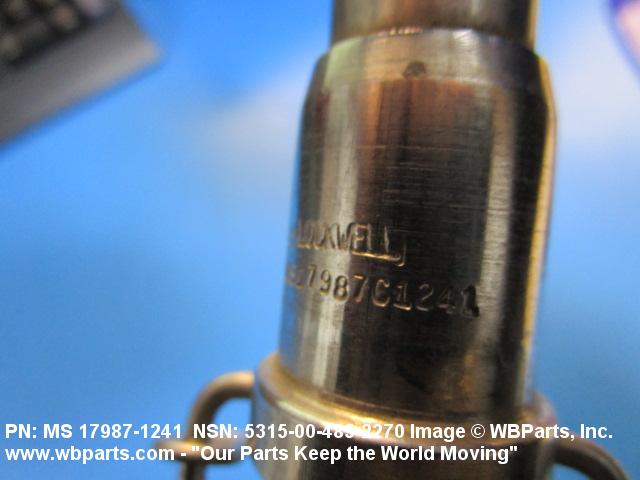

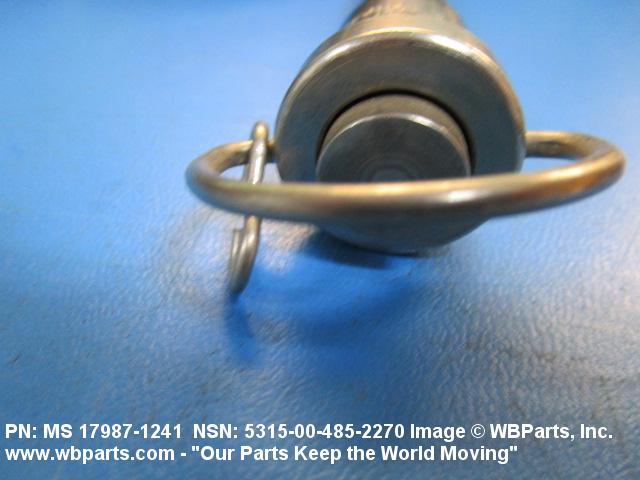

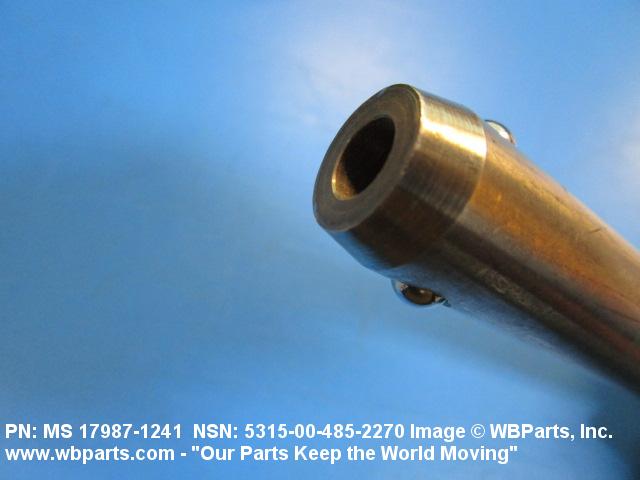

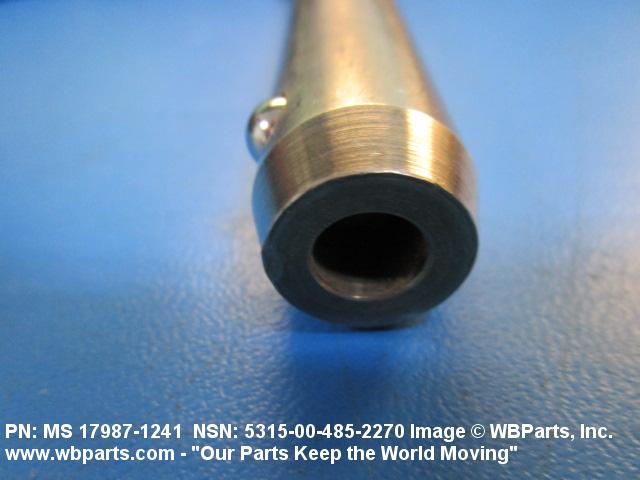

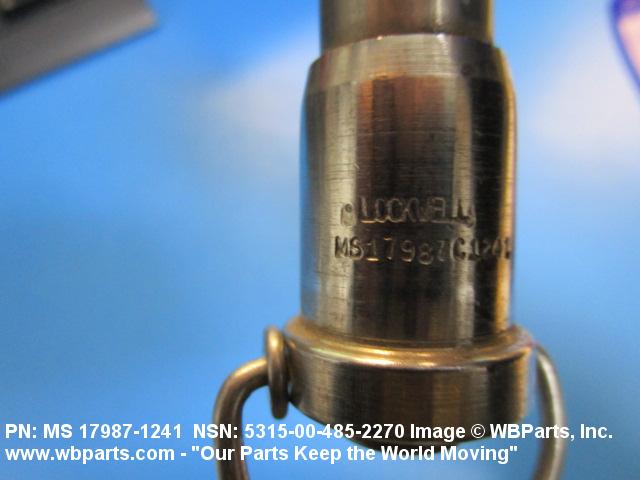

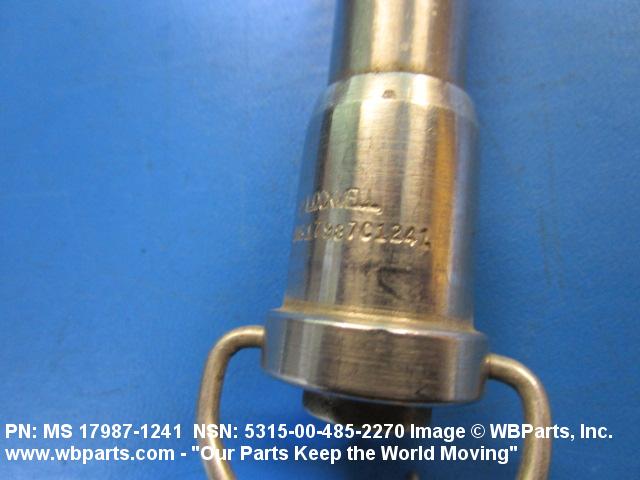

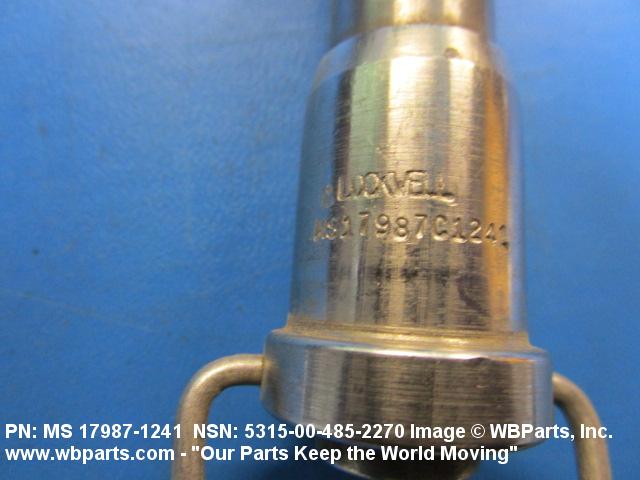

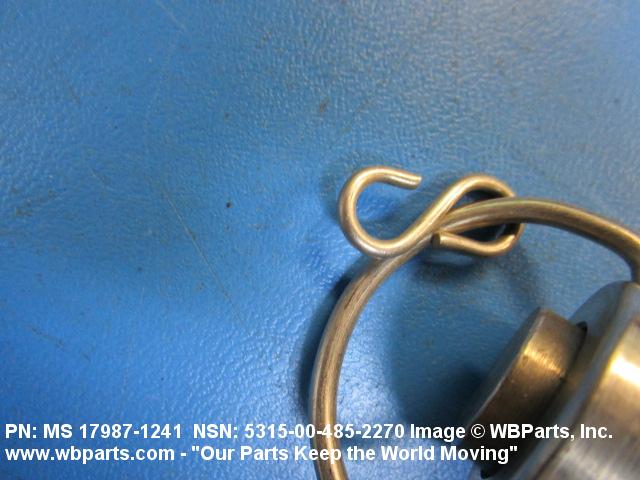

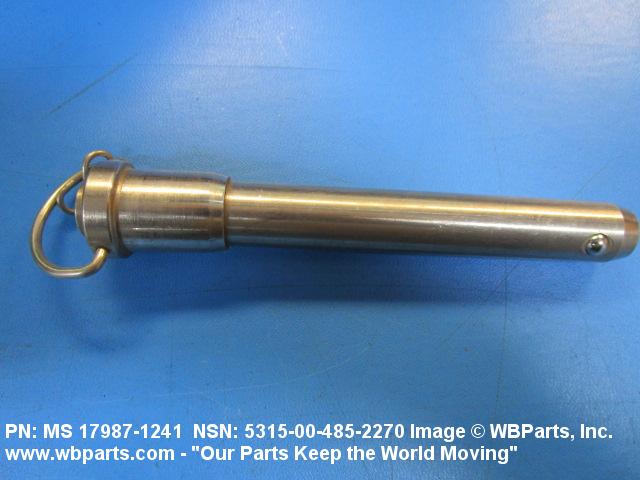

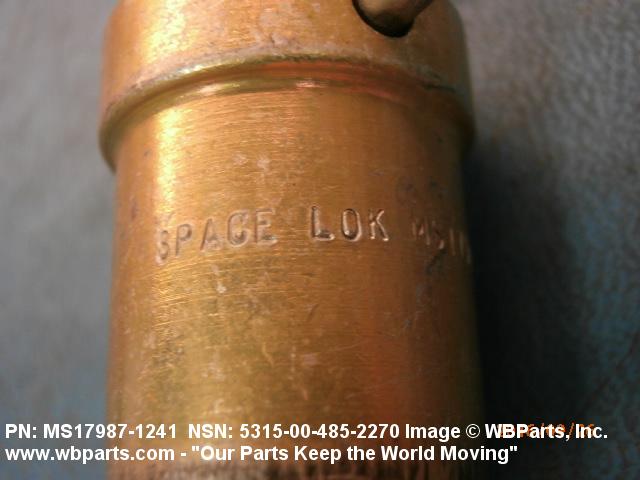

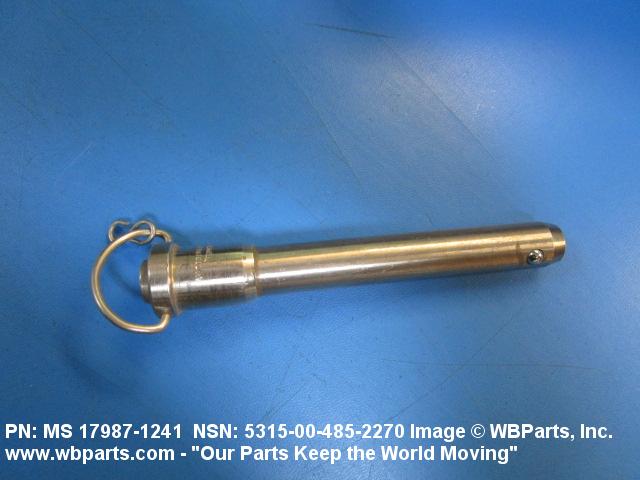

Drawings & Photos | NSN 5315-00-485-2270
Demand History | NSN 5315-00-485-2270
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-485-2270 | 2022-09-271 | 1 | US |
| MS179871241 | 2021-11-327 | 75 | us |
| 5315-00-485-2270 | 2021-08-243 | 1 | United States |
| MS179871241 | 2016-08-228 | 1 | Singapore |
| MS179871241 | 2016-08-228 | 1 | Singapore |
Cross Reference | NSN 5315-00-485-2270
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLS12R1S | 84256 | AVIBANK MFG., INC. |
| LG12SR4100 | 62060 | SOUTHCO INC. |
| LG12SR4100 | 83014 | HARTWELL CORPORATION |
| MS17987-1241 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17987-1241 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SLS12R41 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-485-2270
Related Products | NSN 5315-00-485-2270
Technical Data | NSN 5315-00-485-2270

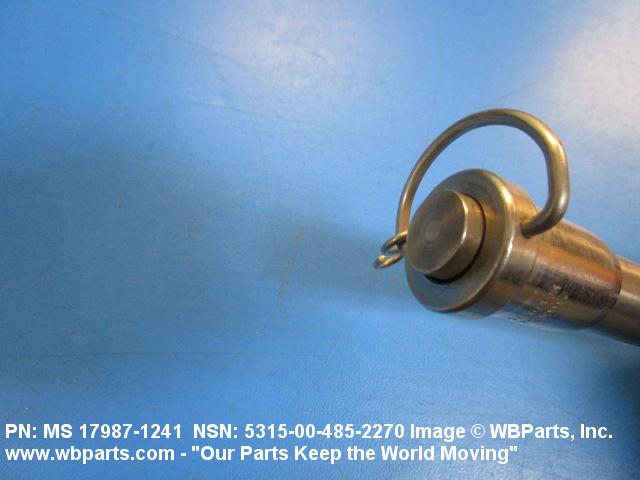

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5520 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5520 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK |
| STYLE DESIGNATOR | Q240 RING HANDLE |

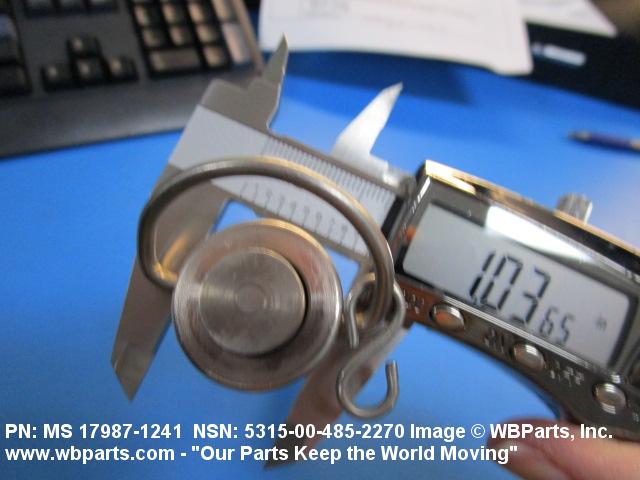

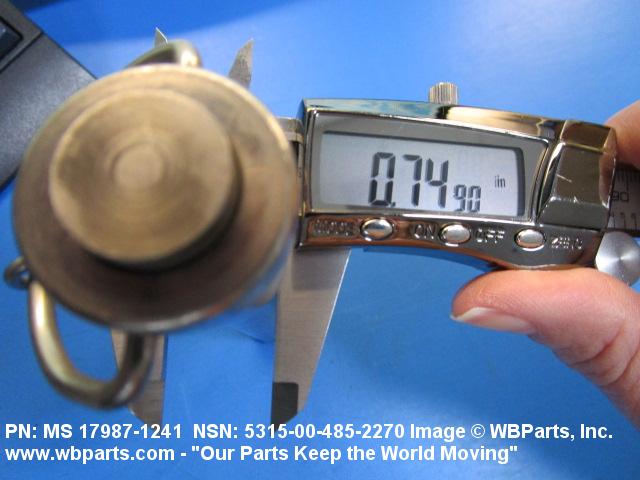

| HEAD DIAMETER | 0.865 INCHES MINIMUM AND 1.045 INCHES MAXIMUM |
| SHANK DIAMETER | 0.7470 INCHES MINIMUM AND 0.7485 INCHES MAXIMUM |

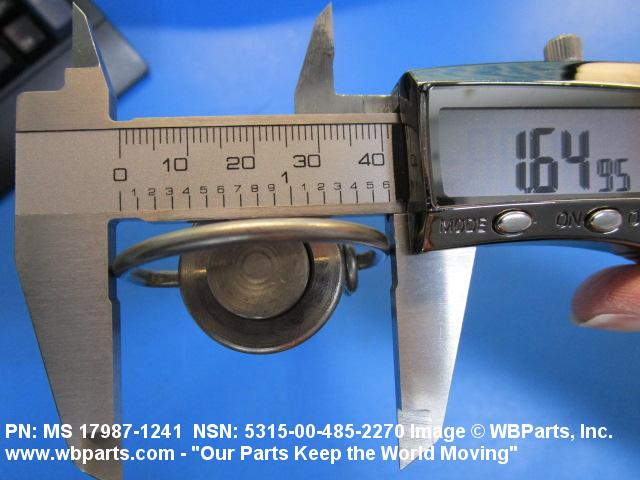

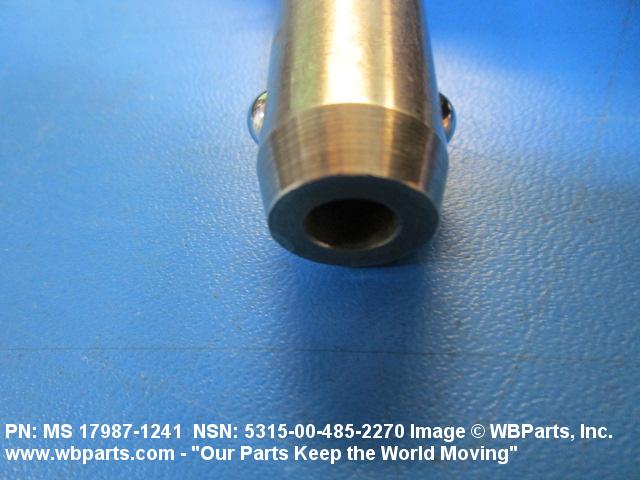

| RING HANDLE DIAMETER | 1.640 INCHES MINIMUM |
| GRIP LENGTH | 4.100 INCHES MINIMUM AND 4.120 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.625 INCHES MINIMUM |
| DETENT TO TAPERED END DISTANCE | 0.640 INCHES MINIMUM AND 0.670 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK |
